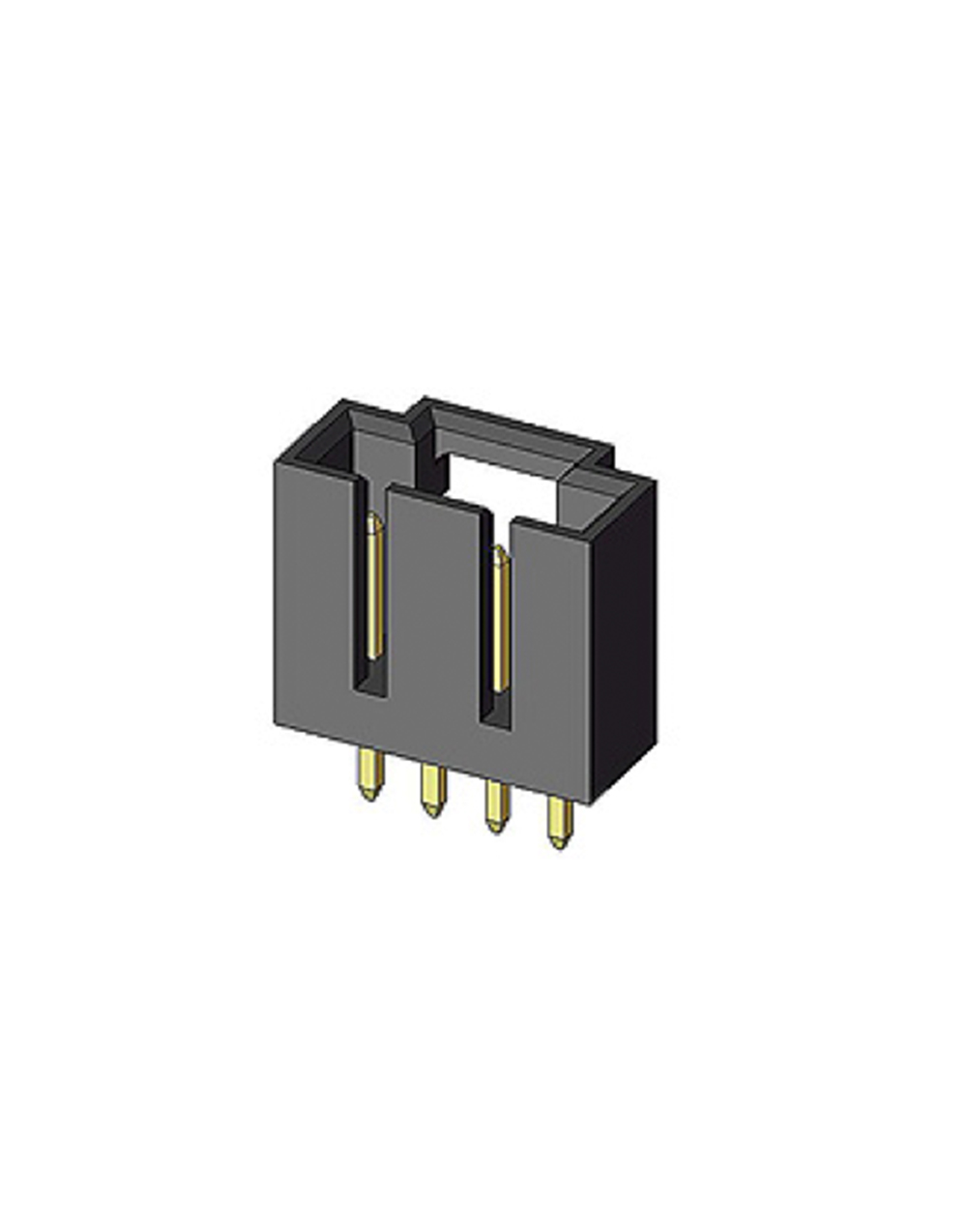

0.1″ Spacing Wire to Board Connector

Description

Base: Polyester 94V-0,PBT+30% glass-filled
Contact:  Brass, Gold-Plated
Voltage rating:  250V AC, DC
Current rating:  3A
Withstanding voltage:  1000V AC/minute
Insulation resistance:  1000MΩMin
Temperature range:  -25°C~+85°C
Contact resistance: Initial value/10mΩ max
After environmental testing/20mΩ max.



SKU#PART#CIRCUITSMOQ
29752975-WB-022250
29762976-WB-033250
29772977-WB-044250
29782978-WB-055250
29792979-WB-066250
29802980-WB-077250
29812981-WB-088250
29822982-WB-099250
29832983-WB-1010250
29842984-WB-1111250
29852985-WB-1212250
29862986-WB-1313250
29872987-WB-1414250
29882988-WB-1515250
29892989-WB-1616250
29902990-WB-1717250
29912991-WB-1818250
