3A~25A manual reset

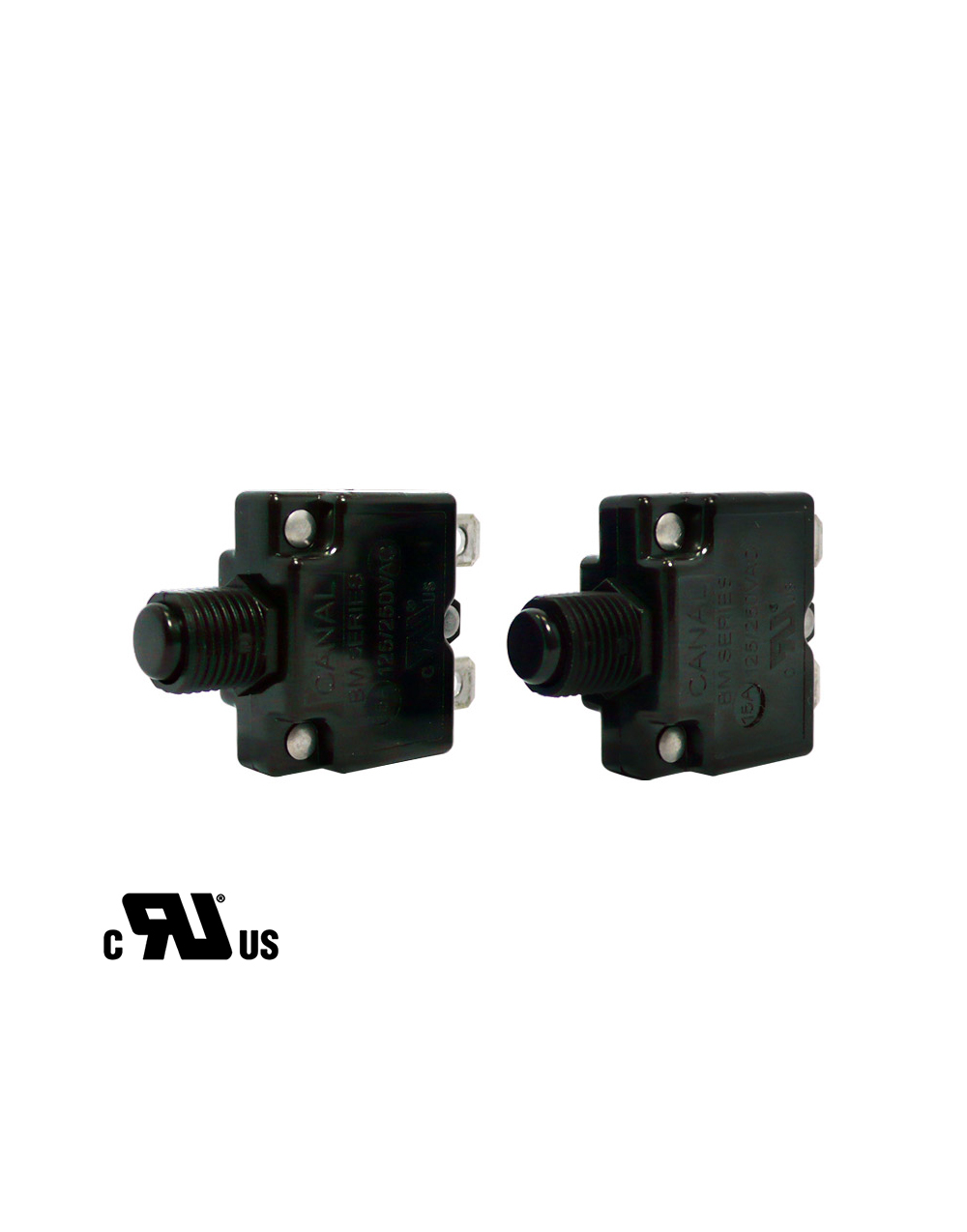

Thermal Circuit Breaker, 3A up to 25AMP
Wide selections of terminals, bushing and caps
Description
3A~25A manual reset
Thermal Circuit Breaker, 3A up to 25AMP
Wide selections of terminals, bushing and caps
Download: Spec Sheet
Features:
Temperature rise: less than 65 degrees in Celsius, at 100% of rated current applied continuously at
25 degree in Celsius
Calibration (at 25 degree)
100% of rated current: hold, no-trip
135% of rated current: trip in 1 hour
200% of rated current: 4-25 seconds trip
300% of rated current: 1.6-4.8 seconds trip
Specifications:
| Rating | 3.0Amp – 25.0Amp |
| Input Power | 125/250Vac, 50Vdc, 50/60Hz |
| Interrupt Capacity: | 1000Amp, 125Vac |
| Voltage Drop | Less than 0.25V |
| Dielectric strength | 1500Vac, 1 minute |
| Resettable overload capacity | 10 times rated current |
| Insulation resistance | 500 M. ohms |
| Reset time | within 60 seconds |
