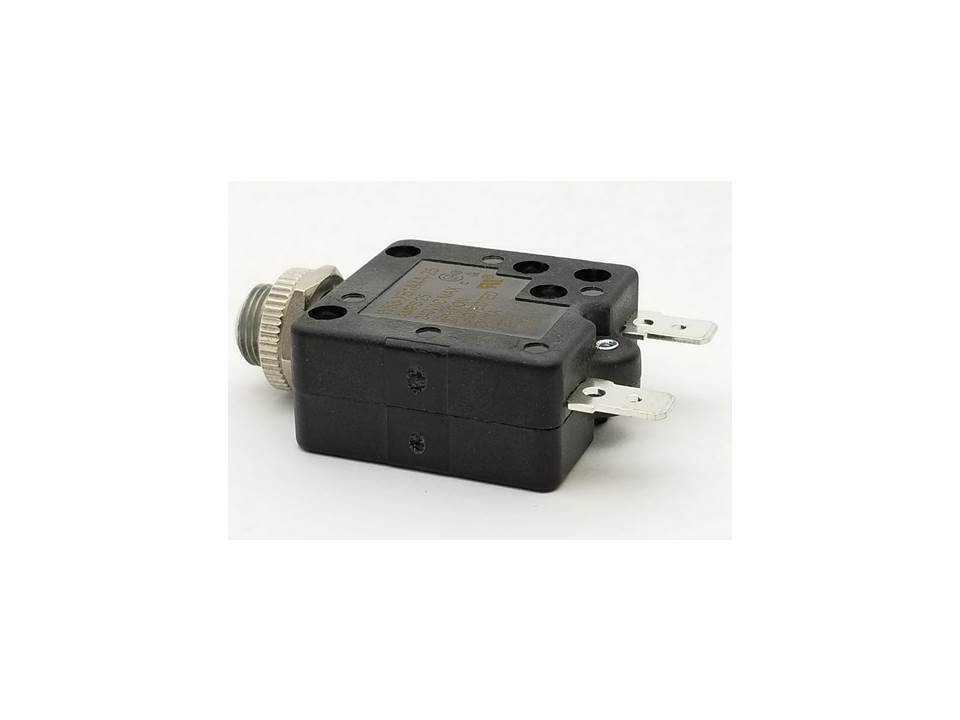

Thermal Circuit Breaker, 3A up to 30 AMP ,UL approved , Ignition Protected


3A~30A manual reset
Thermal Circuit Breaker, 3A up to 30AMP
Wide selections of terminals, bushing and caps

Download: Spec Sheet


Temperature rise: less than 65 degrees in Celsius, at 100% of rated current applied continuously at
25 degree in Celsius

Calibration (at 25 degree)

100% of rated current: hold, no-trip
135% of rated current: trip in 1 hour
200% of rated current: within 40 seconds trip
300% of rated current: within 10 seconds trip


Rating3.0Amp – 30.0Amp
Input Power125/250Vac, 50Vdc, 50/60Hz
Interrupt Capacity:1000Amp 125Vac; 200Amp, 250Vac
Voltage DropLess than 0.25V
Dielectric strength1500Vac, 1 minute
Resettable overload capacity10 times rated current
Insulation resistance500 M. ohms
Reset timewithin 60 seconds
