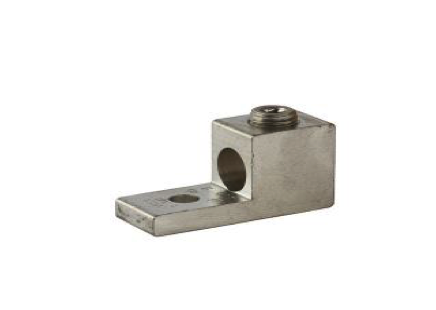

Aluminum, Dual Rated, Single LUG UL486A/B Listed. AL9CU Voltage: 600V max. (2000V ma. per UL486B)
Description
- cULus Listed Wire Connector.
- UL486A/B Listed. AL9CU
- Temperature Rating: 90 °C
- Voltage: 600V max. (2000V ma. per UL486B)
Download:
| 2089 | 2089-6T | 1 | #6-14 | SLOT | 1.06 | 0.5 | 0.5 | 0.25 | 0.69 | 0.1 | 1/4 | 45 | 100 |
| 2090 | 2090-2T | 1 | #2-14 | SLOT | 1.16 | 0.5 | 0.5 | 0.31 | 0.69 | 0.1 | 1/4 | 50 | 100 |
| 2091 | 2091-0T | 2 | 1/O-14 | 3/16″ | 1.47 | 0.79 | 0.63 | 0.44 | 0.85 | 0.19 | 1/4 | 120 | 100 |
| 2092 | 2092-2/OT | 2 | 2/O-14 | 3/16″ | 1.47 | 0.79 | 0.63 | 0.44 | 0.85 | 0.19 | 1/4 | 120 | 100 |
| 2093 | 2093-250T | 2 | 250-6 | 5/16″ | 2 | 1.02 | 0.88 | 0.47 | 1.13 | 0.22 | 5/16 | 275 | 100 |
| 2094 | 2094-300OT | 2 | 300-6 | 5/16″ | 2 | 1.13 | 0.88 | 0.5 | 1.00 | 0.25 | 5/16 | 275 | 100 |
| 2095 | 2095-350T | 2 | 350-6 | 5/16″ | 2.25 | 1.13 | 0.99 | 0.5 | 1.25 | 0.25 | 3/8 | 275 | 100 |
| 2096 | 2096-500T | 2 | 500-4 | 3/8″ | 2.75 | 1.41 | 1.2 | 0.63 | 1.63 | 0.31 | 3/8 | 375 | 100 |
| 2097 | 2097-600T | 2 | 600-2 | 3/8″ | 3.18 | 1.51 | 1.38 | 0.63 | 1.93 | 0.38 | 3/8 | 375 | 100 |
| 2098 | 2098-800T | 2 | 800-300 | 1/2″ | 3.25 | 1.69 | 1.44 | 0.63 | 1.88 | 0.44 | 1/2 | 500 | 100 |
| 2099 | 2099-1000T | 2 | 1000-350 | 9/16″ | 3.25 | 1.88 | 1.69 | 0.75 | 1.75 | 0.44 | 1/2 | 600 | 100 |
