Description

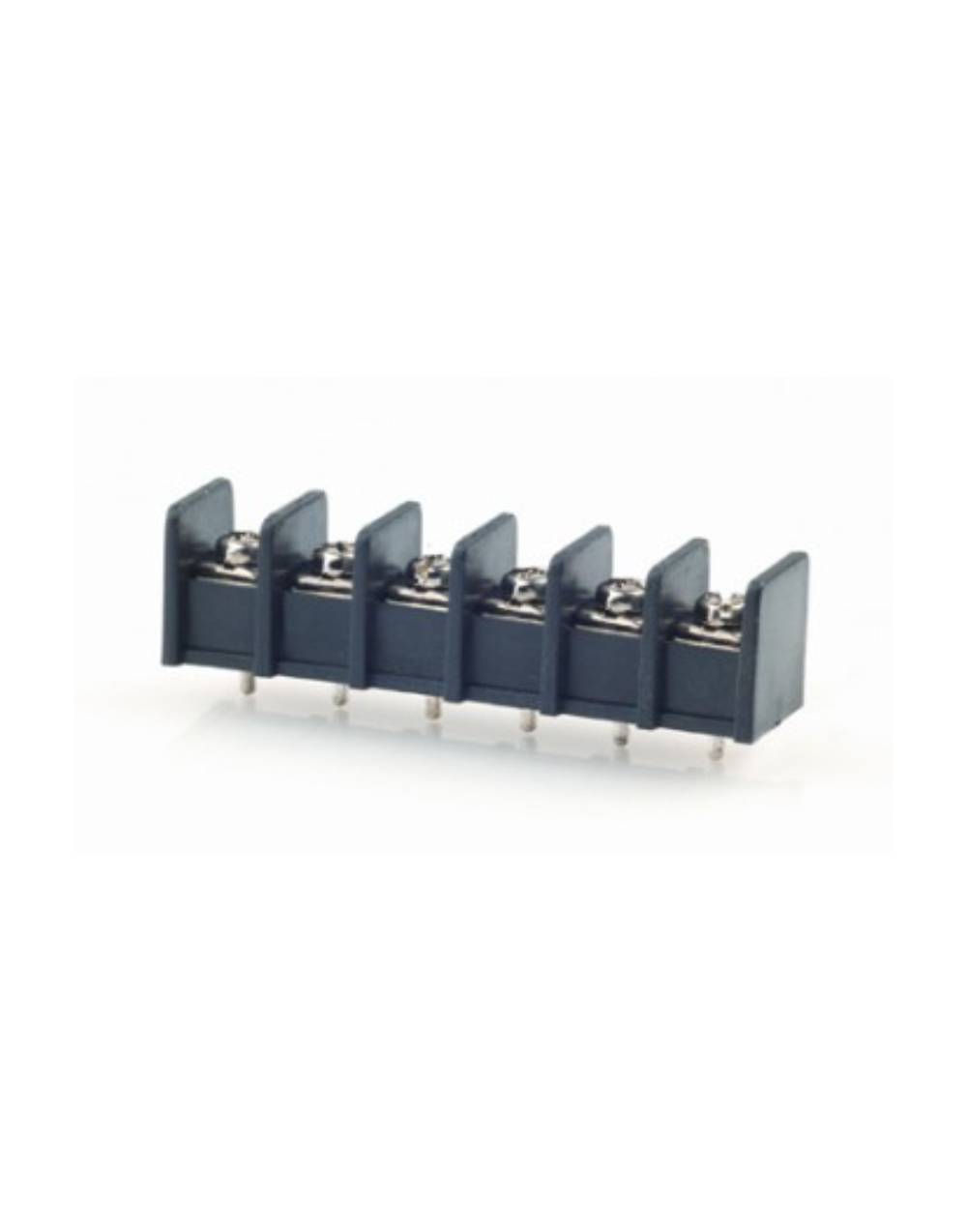

0.374″ Single Row Barrier terminal Block PCB mount
Download: Spec S0.374 _PCB_T_BLOCK_SPEC.JPGSheet
Specifications:
Materials:
| Plastic Housing | PA 66, Black |
| Terminal | Brass, 0.8t, Tin Plated |
| Screw | Steel, M3.5, Nickel Plated |
| Rating | 15a, 300V AC |
Specifications:
| Working Temperature | -40°C ~ +105°C |
| Insulation withstand Voltage | AC 1500V at 1 minute |
| Insul. Resistance | 1000MΩ or More at DC 500V |
| Wire Range | 22 ~ 12 AWG |
Screws are available in Brass. Screws are available with washers.
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1134 | 1134-GGB-20-02-02 | 2
| 200
|
| 1135 | 1135-GGB-20-02-03 | 3 | 200 |
| 1136 | 1136-GGB-20-02-04 | 4 | 200 |
| 1137 | 1137-GGB-20-02-05 | 5 | 200 |
| 1138 | 1138-GGB-20-02-06 | 6 | 200 |
| 1139 | 1139-GGB-20-02-07 | 7 | 200 |
| 1140 | 1140-GGB-20-02-08 | 8 | 200 |
| 1141 | 1141-GGB-20-02-09 | 9 | 200 |
| 1142 | 1142-GGB-20-02-10 | 10 | 200 |
| 1143 | 1143-GGB-20-02–11 | 11 | 200 |
| 1144 | 1144-GGB-20-02-12 | 12 | 200 |
| 1145 | 1145-GGB-20-02–13 | 13 | 200 |
| 1146 | 1146-GGB-20-02–14 | 14 | 200 |
| 1147 | 1147-GGB-20-02–15 | 15 | 200 |
| 1148 | 1148-GGB-20-02–16 | 16 | 200 |
| 1149 | 1149-GGB-20-02–17 | 17 | 200 |
| 1150 | 1150-GGB-20-02–18 | 18 | 200 |
| 1151 | 1151-GGB-20-02–19 | 19 | 200 |
| 1152 | 1152-GGB-20-02-20
| 20 | 200 |
| 1153 | 1153-GGB-20-02–21 | 21 | 100 |
| 1154 | 1154-GGB-20-02–22 | 22 | 100 |
| 1155 | 1155-GGB-20-02–23 | 23 | 100 |
| 1156 | 1156-GGB-20-02-24
| 24 | 100 |
| 1157 | 1157-GGB-20-02–21 | 21 | 100 |
| 1158 | 1158-GGB-20-02–22 | 22 | 100 |
| 1159 | 1159-GGB-20-02–23 | 23 | 100 |
| 1160 | 1160-GGB-20-02-24
| 24 | 100 |
| 1161 | 1161-GGB-20-02–21 | 21 | 100 |
| 1162 | 1162-GGB-20-02–22 | 22 | 100 |
| 1163 | 1163-GGB-20-02–23 | 23 | 100 |
| 1164 | 1164-GGB-20-02-24
| 24 | 100 |
