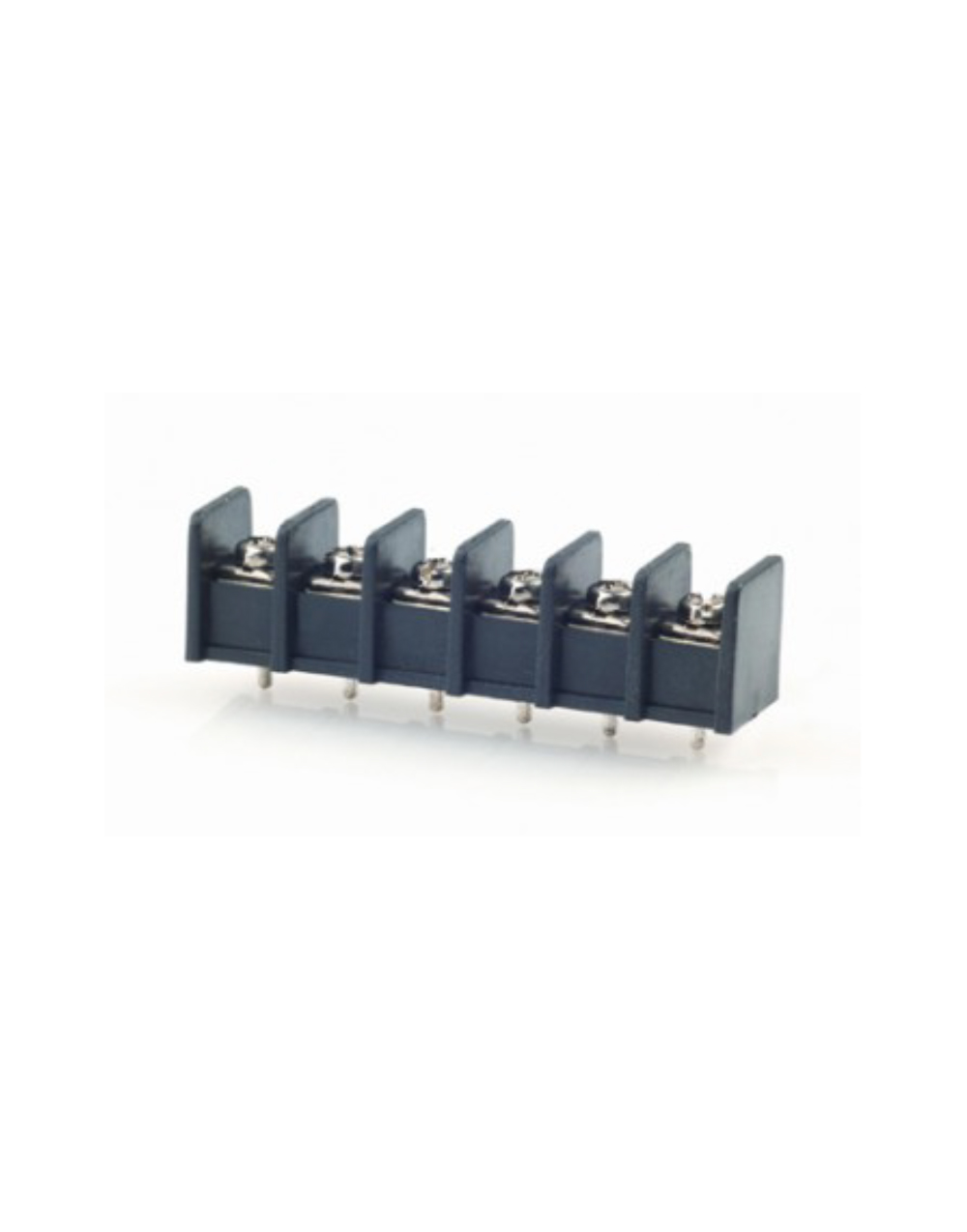

0.433″(11 mm) Single Row Barrier terminal Block PCB mount 02~24 POSITION UL ; CE APPROVED
Categories: Electro mechanical, Single Row Barrier Type, Terminal Blocks
Description
0.433″(11 mm) Single Row Barrier terminal Block PCB mount
Download: Spec Sheet
Specifications:
Materials:
Plastic Housing | PA66, Black |
Terminal | Brass, 1.0t, Tin Plated |
Screw | Steel, M4, Nickel Plated |
Rating | 30A, 300V AC |
Specifications:
Working Temperature | -40°C ~ +105°C |
Insulation withstand Voltage | AC 1500V at 1 minute |
Insul. Resistance | 1000MΩ or More at DC 500V |
Wire Range | 22 ~ 12 AWG |
Max. Torque Value | 18kg-cm |
Screws are available in Brass. Screws are available with washers.
SKU# | P/N | POLE | MOQ |
1165 | 1165-GGB-30-01-02 | 2 | 200 |
1166 | 1166–GGB-30-01-03 | 3 | 200 |
1167 | 1167–GGB-30-01-04 | 4 | 200 |
1168 | 1168–GGB-30-01-05 | 5 | 200 |
1169 | 1169–GGB-30-01-06 | 6 | 200 |
1170 | 1170–GGB-30-01-07 | 7 | 200 |
1171 | 1171–GGB-30-01-08 | 8 | 200 |
1172 | 1172–GGB-30-01-09 | 9 | 200 |
1173 | 1173–GGB-30-01-10 | 10 | 200 |
1174 | 1174–GGB-30-01–11 | 11 | 200 |
1175 | 1175–GGB-30-01-12 | 12 | 200 |
1176 | 1176–GGB-30-01–13 | 13 | 200 |
1177 | 1177–GGB-30-01–14 | 14 | 200 |
1178 | 1178–GGB-30-01–15 | 15 | 200 |
1179 | 1179–GGB-30-01–16 | 16 | 200 |
1180 | 1180–GGB-30-01–17 | 17 | 200 |
1181 | 1181–GGB-30-01–18 | 18 | 200 |
1182 | 1182–GGB-30-01–19 | 19 | 200 |
1183 | 1183–GGB-30-01-20 | 20 | 200 |
1184 | 1184–GGB-30-01–21 | 21 | 100 |
1185 | 1185-GGB-30-01–22 | 22 | 100 |
1186 | 1186–GGB-30-01–23 | 23 | 100 |
1187 | 1187–GGB-30-01-24 | 24 | 100 |
1188 | 1188–GGB-30-01–21 | 21 | 100 |
1189 | 1189–GGB-30-01–22 | 22 | 100 |
1190 | 1190–GGB-30-01–23 | 23 | 100 |
1191 | 1191–GGB-30-01-24 | 24 | 100 |
1192 | 1192–GGB-30-01–21 | 21 | 100 |
1193 | 1193–GGB-30-01–22 | 22 | 100 |
1194 | 1194–GGB-30-01–23 | 23 | 100 |
1195 | 1195–GGB-30-01-24 | 24 | 100 |
