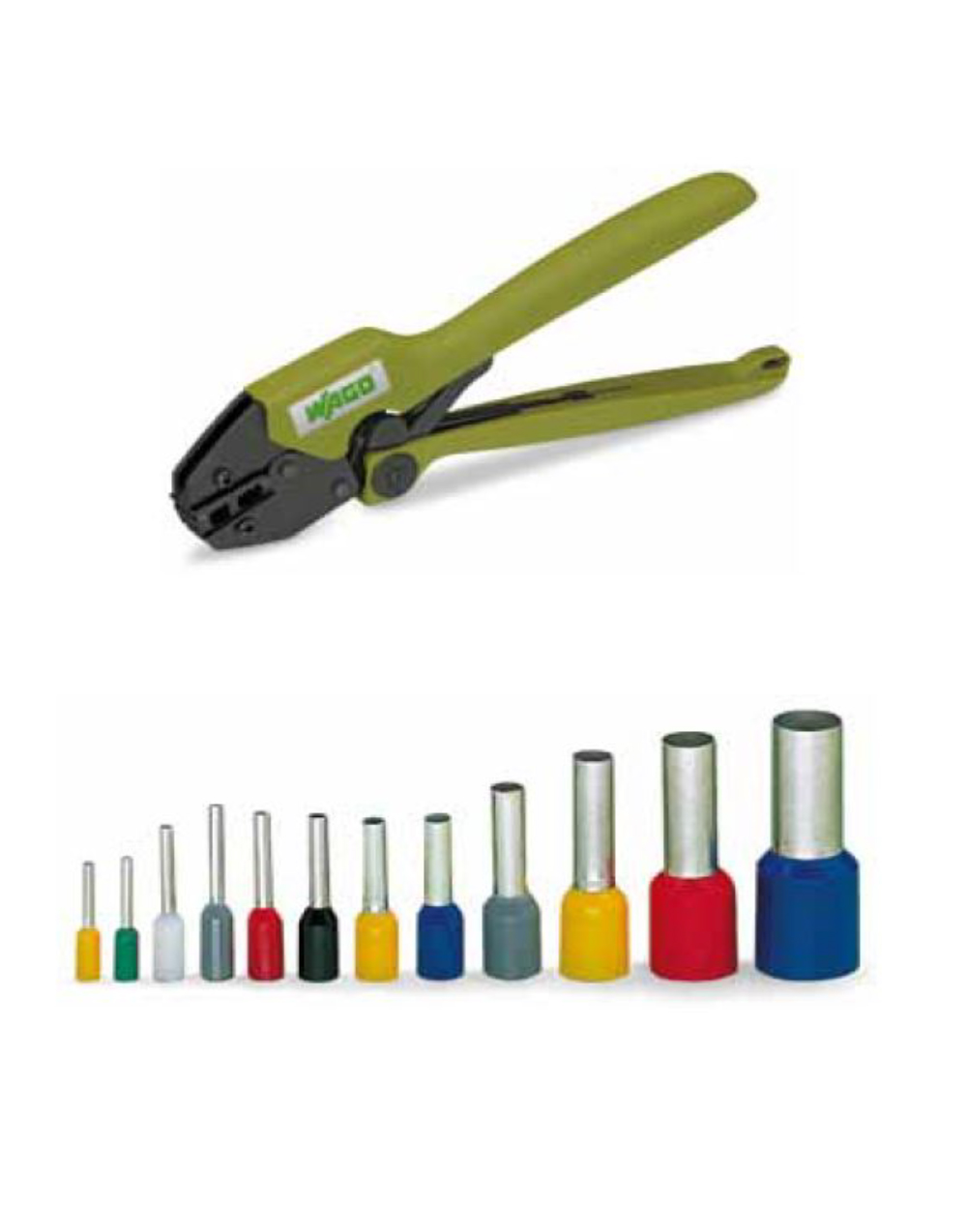

Insulated Ferrules Extra-Long AWG : 22 ~ 6
Description
Insulated Ferrules Extra-Long
| SKU# | PART# | MM2 | AWG | COLOR | STRIP LENGTH | L | L1 | D | D1 | D2 | MOQ |
| (mm) | |||||||||||
| 2207 | 216-241 | 0.5 | 22 | WHITE | 12 | 16 | 10 | 3.1 | 2.6 | 1 | 1000 |
| 2208 | 216-242 | 0.75 | 20 | GRAY | 12 | 16 | 10 | 3.3 | 2.8 | 1.2 | 1000 |
| 2209 | 216-262 | 0.75 | 20 | GRAY | 14 | 18 | 12 | 12 | 3.3 | 2.8 | 1000 |
| 2210 | 216-243 | 1 | 18 | RED | 12 | 16 | 10 | 3.5 | 3 | 1.4 | 1000 |
| 2211 | 216-263 | 1 | 18 | RED | 14 | 18 | 12 | 3.5 | 3 | 1.4 | 1000 |
| 2212 | 216-244 | 1.5 | 16 | BLACK | 12 | 16 | 10 | 4 | 3.5 | 1.7 | 1000 |
| 2213 | 216-264 | 1.5 | 16 | BLACK | 14 | 18 | 12 | 4 | 3.5 | 1.7 | 1000 |
| 2214 | 216-284 | 1.5 | 16 | BLACK | 20 | 24 | 18 | 4 | 3.5 | 1.7 | 1000 |
| 2215 | 216-246 | 2.5 | 14 | BLUE | 12 | 17 | 10 | 4.7 | 4.2 | 2.2 | 1000 |
| 2216 | 216-266 | 2.5 | 14 | BLUE | 14 | 19 | 12 | 4.7 | 4.2 | 2.2 | 1000 |
| 2217 | 216-286 | 2.5 | 14 | BLUE | 20 | 25 | 18 | 4.7 | 4.2 | 2.2 | 1000 |
| 0 | |||||||||||
| 2218 | 216-267 | 4 | 12 | GRAY | 14 | 20 | 12 | 5.4 | 4.8 | 2.8 | 1000 |
| 2219 | 216-287 | 4 | 12 | GRAY | 20 | 26 | 18 | 5.4 | 4.8 | 2.8 | 1000 |
| 2220 | 216-208 | 6 | 10 | YELLOW | 14 | 20 | 12 | 6.9 | 6.3 | 3.5 | 1000 |
| 2221 | 216-288 | 6 | 10 | YELLOW | 20 | 26 | 18 | 6.9 | 6.3 | 3.5 | 1000 |
| 2222 | 216-289 | 10 | 8 | RED | 20 | 28 | 18 | 8.4 | 7.6 | 4.5 | 1000 |
| 2223 | 216-210 | 16 | 6 | BLUE | 23 | 28 | 18 | 9.6 | 8.8 | 5.8 | 1000 |
