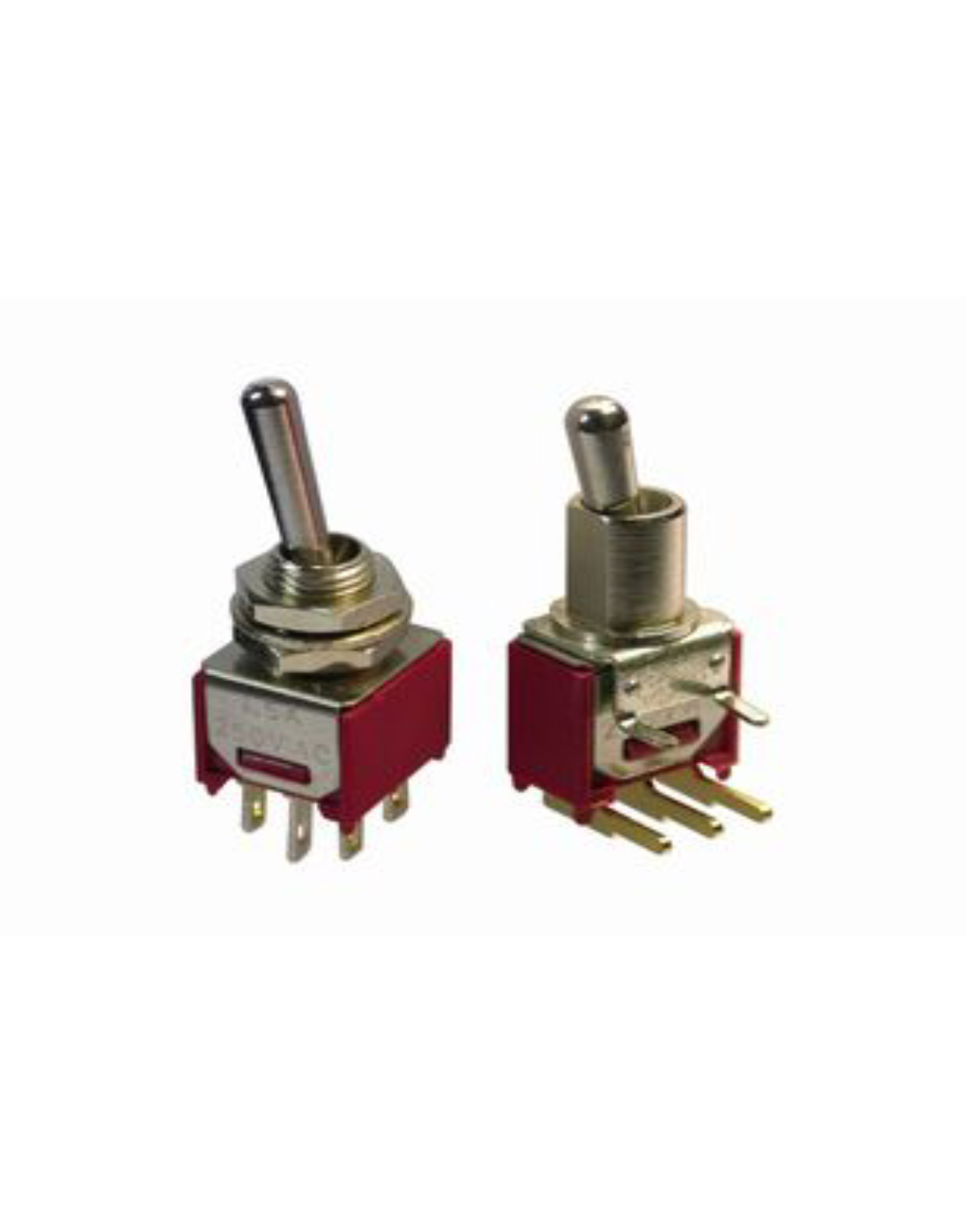

Sub miniature toggle, rocker switches up to 3A 120VAC 3A 120VAC, 1.5A 250VAC (UL) 3A 28VDC (UL)
Description
Pitch 2.54
Sub miniature toggle, rocker switches up to 3A 120VAC
Specifications:
- 3A 120VAC, 1.5A 250VAC (UL)
- 3A 28VDC (UL)
- Initial contact resistance : 20m ohm (max.)
- Insulation resistance : 1000M ohm (min)
- Dielectric strength : 1,000VAC for 1 minute
- Life cycle : 30,000 cycles
- Temperature range : -30℃ to + 130℃
- Base : Diallyl phthalate (DAP).
- Actuator : Toggle, brass chrome plated
- Gasket: nickel plated steel
- Nuts: brass, nickel plated
- Bushing : Brass, nickel plated
- Housing : Stainless steel
- Terminals : silver plated brass, gold plated optional
- Contact : Silver plated brass, gold plated optional
Download: Spec Sheet
