Description

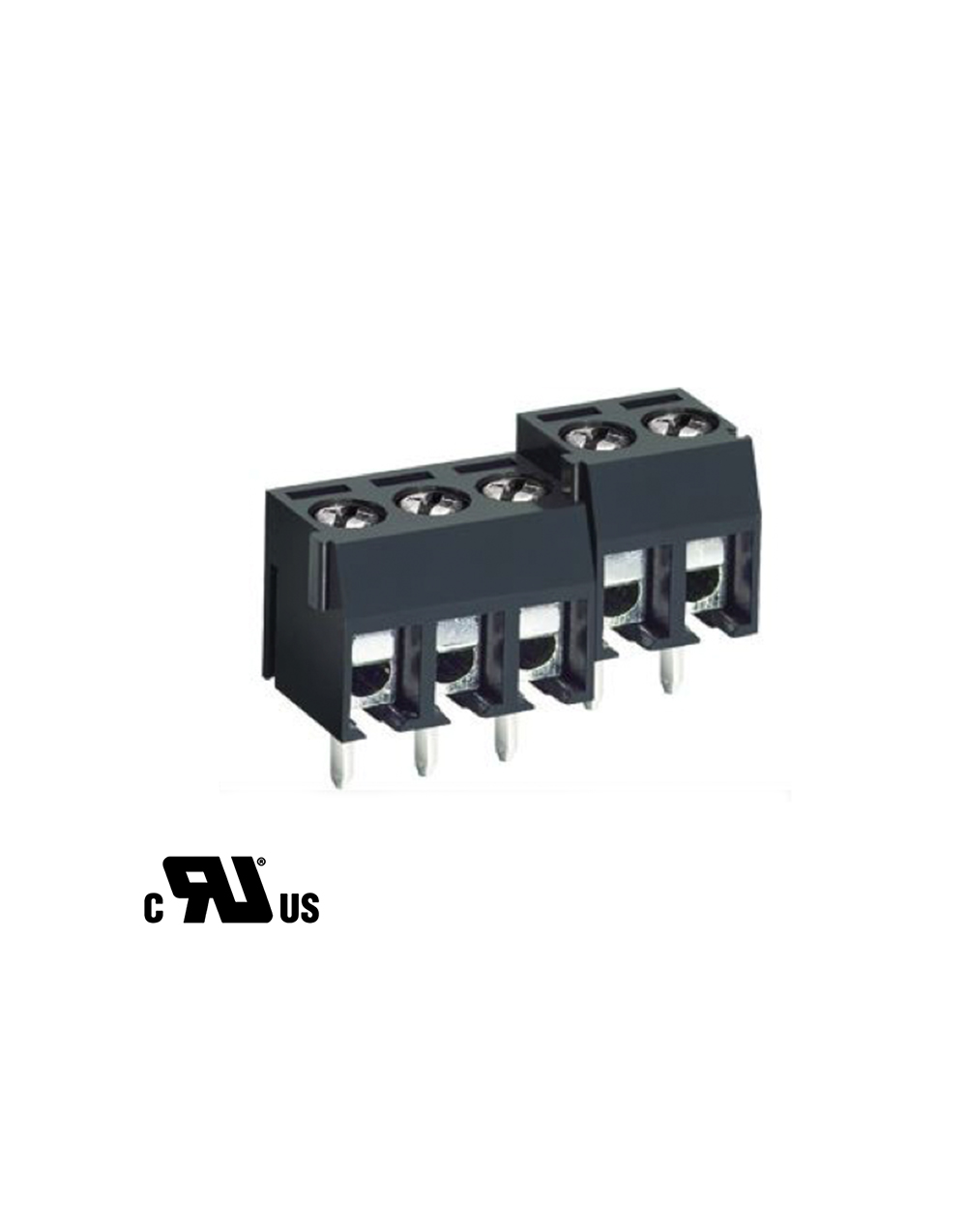

3.5mm Pitch PCB terminal block
Download: Spec SheetSPEC SHEET SPEC SHEET
Specifications:
Pitch | 3.50 mm |
Poles | 2~3 Poles |
Length A | A=3.50xP |
Housing Material | PA 66 |
Spring | Stainless, Tin Plated |
Contact | Brass, Tin Plated |
Wire Size | 16 ~ 26 |
Wire Strip Length | 5-6mm |
PCB Hole Diameter | Ø1.2 |
Tightening Torque, Max. | 2.0 Lb-in |
Operating Temperature | -40°C to +105°C |
