product ME030-381-RA-HEADER

3.81mmPitch PCB -R/A Header 2~24 Position UL ; CE Approved

Categories: 3.81 MM Str R/A, Electro mechanical, Terminal Blocks

Description
Request a Quote

Description

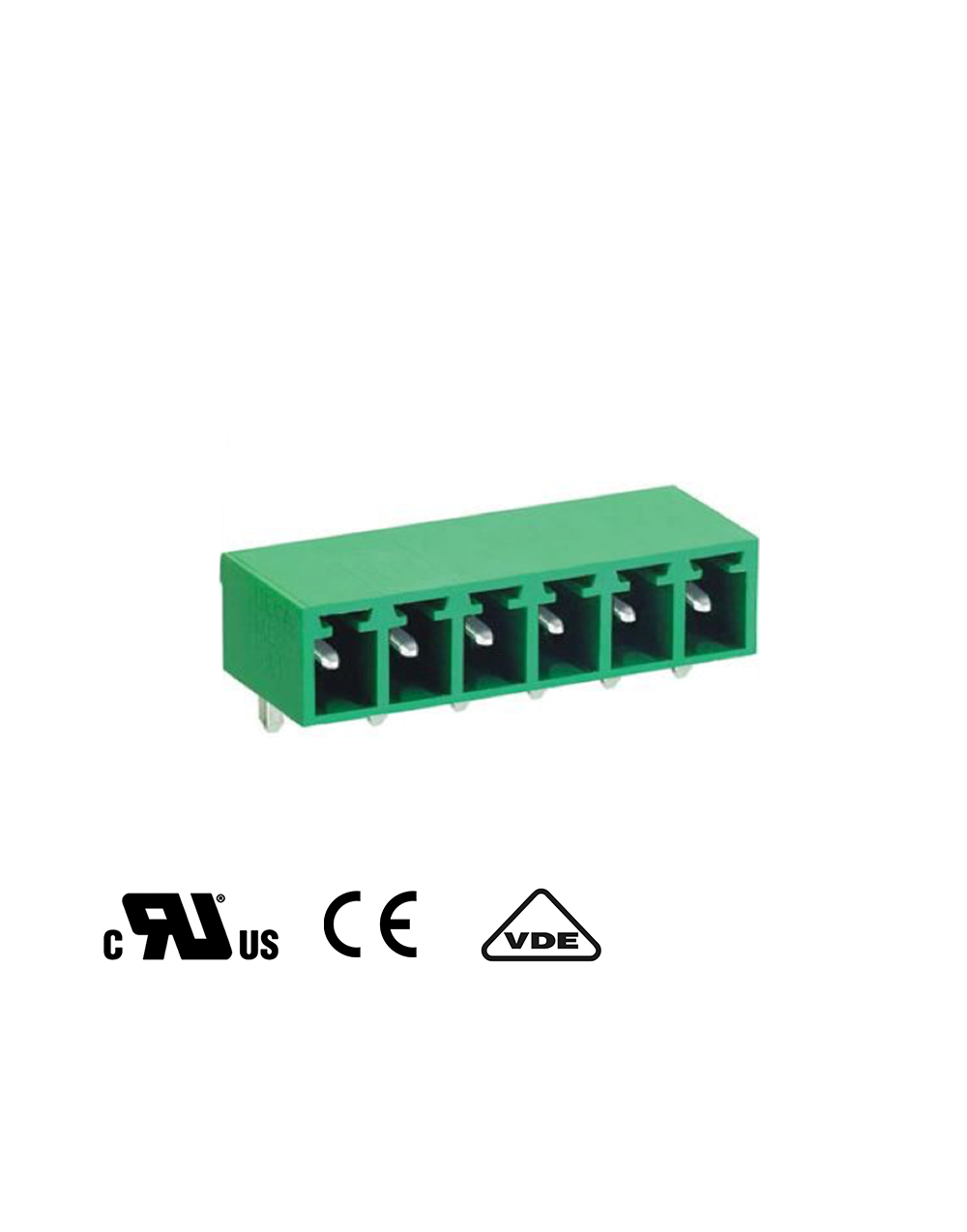

3.81mm Pitch R/A Header

Download: Spec Sheet

Specifications:

Pitch	3.81 mm
Poles	2~24 Poles
Length A	A=3.810xP+0.6mm
Housing Material	PA 66
Pin Dimensions	Brass, Tin Plated
PCB Hole Diameter	Ø1.3
Operating Temperature	-40°C to +105°C


SKU#	P/N	POLE	MOQ
1484	1484-ME030-02	2	200
1485	1485-ME030-03	3	200
1486	1486-ME030-04	4	200
1487	1487-ME030-05	5	200
1488	1488-ME030-06	6	200
1489	1489-ME030-07	7	200
1490	1490-ME030-08	8	200
1491	1491-ME030-09	9	200
1492	1492-ME030-10	10	200
1493	1493-ME030-11	11	100
1494	1494-ME030-12	12	100
1495	1495-ME030-13	13	100
1496	1496-ME030-14	14	100
1497	1497-ME030-15	15	100
1498	1498-ME030-16	16	100
1499	1499-ME030-17	17	100
1500	1500-ME030-18	18	100
1501	1501-ME030-19	19	100
1502	1502-ME030-20	20	100
1503	1503-ME030-21	21	100
1504	1504-ME030-22	22	100
1505	1505-ME030-23	23	100
1506	1506-ME030-24	24	100
