Description

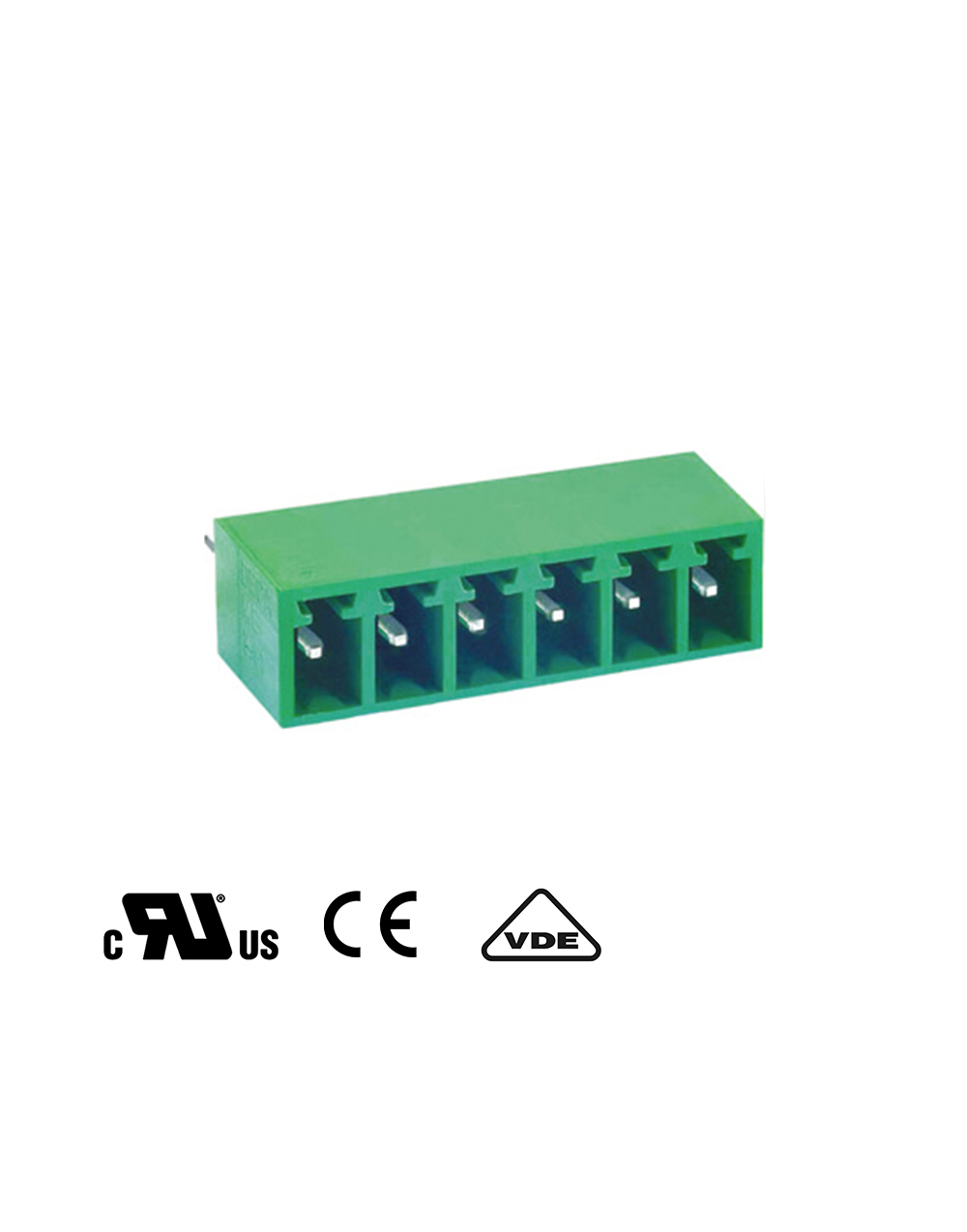

3.81mm Pitch Straight Header
Download: Spec Sheet
Specifications:
| Pitch | 3.81 mm |
| Poles | 2~24 Poles |
| Length A | A=3.81xP+0.6mm |
| Housing Material | PA 66 |
| Cage Clamp | Brass, Ni Plated |
| PCB Hole Diameter | Ø1.3 |
| Operating Temperature | -40°C to +105°C |
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1576 | 1576-ME050-02 | 2
| 200
|
| 1577 | 1577-ME050-03 | 3 | 200 |
| 1578 | 1578-ME050-04 | 4 | 200 |
| 1579 | 1579-ME050-05 | 5 | 200 |
| 1580 | 1580-ME050-06 | 6 | 200 |
| 1581 | 1581-ME050-07 | 7 | 200 |
| 1582 | 1582-ME050-08 | 8 | 200 |
| 1583 | 1583-ME050-09 | 9 | 200 |
| 1584 | 1584-ME050-10 | 10 | 200 |
| 1585 | 1585-ME050-11 | 11 | 100 |
| 1586 | 1586-ME050-12 | 12 | 100 |
| 1587 | 1587-ME050-13 | 13 | 100 |
| 1588 | 1588-ME050-14 | 14 | 100 |
| 1589 | 1589-ME050-15 | 15 | 100 |
| 1590 | 1590-ME050-16 | 16 | 100 |
| 1591 | 1591-ME050-17 | 17 | 100 |
| 1592 | 1592-ME050-18 | 18 | 100 |
| 1593 | 1593-ME050-19 | 19 | 100 |
| 1594 | 1594-ME050-20 | 20 | 100 |
| 1595 | 1595-ME050-21 | 21 | 100 |
| 1596 | 1596-ME050-22 | 22 | 100 |
| 1597 | 1597-ME050-23 | 23 | 100 |
| 1598 | 1598-ME050-24
| 24 | 100 |
