Description

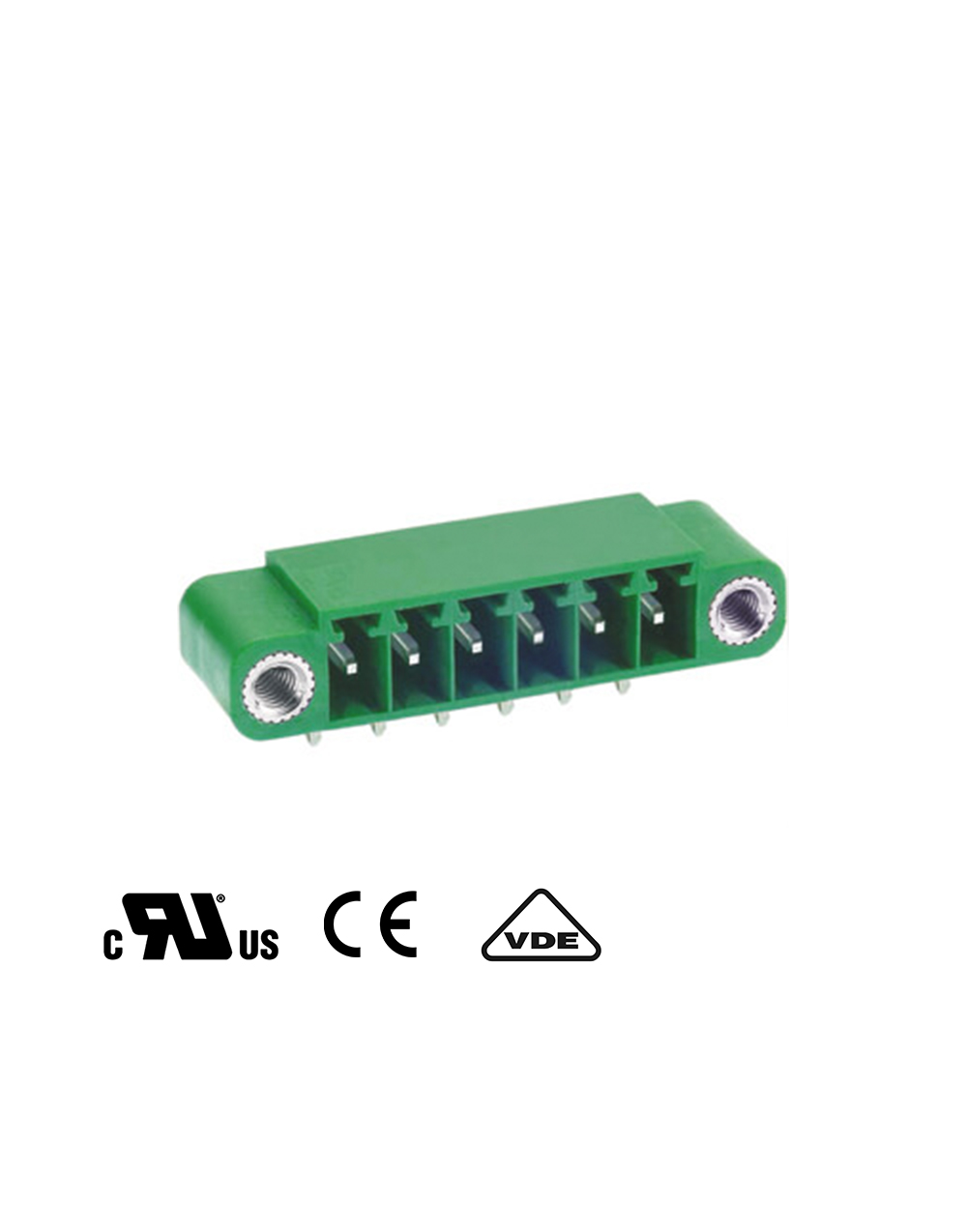

3.81mm Pitch R/A Header with Mounting
Download: Spec Sheet
Specifications:
| Pitch | 3.81 mm |
| Poles | 2~24 Poles |
| Length A | A=3.81xP+10.40mm |
| Housing Material | PA 66 |
| Pin Dimensions | Brass, Tin Plated |
| PCB Hole Diameter | Ø1.3 |
| Operating Temperature | -40°C to +105°C |
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1530 | 1530-ME050-02 | 2
| 200
|
| 1531 | 1531-ME050-03 | 3 | 200 |
| 1532 | 1532-ME050-04 | 4 | 200 |
| 1533 | 1533-ME050-05 | 5 | 200 |
| 1534 | 1534-ME050-06 | 6 | 200 |
| 1535 | 1535-ME050-07 | 7 | 200 |
| 1536 | 1536-ME050-08 | 8 | 200 |
| 1537 | 1537-ME050-09 | 9 | 200 |
| 1538 | 1538-ME050-10 | 10 | 200 |
| 1539 | 1539-ME050-11 | 11 | 100 |
| 1540 | 1540-ME050-12 | 12 | 100 |
| 1541 | 1541-ME050-13 | 13 | 100 |
| 1542 | 1542-ME050-14 | 14 | 100 |
| 1543 | 1543-ME050-15 | 15 | 100 |
| 1544 | 1544-ME050-16 | 16 | 100 |
| 1545 | 1545-ME050-17 | 17 | 100 |
| 1546 | 1546-ME050-18 | 18 | 100 |
| 1547 | 1547-ME050-19 | 19 | 100 |
| 1548 | 1548-ME050-20 | 20 | 100 |
| 1549 | 1549-ME050-21 | 21 | 100 |
| 1550 | 1550-ME050-22 | 22 | 100 |
| 1551 | 1551-ME050-23 | 23 | 100 |
| 1552 | 1552-ME050-24
| 24 | 100 |
