Description

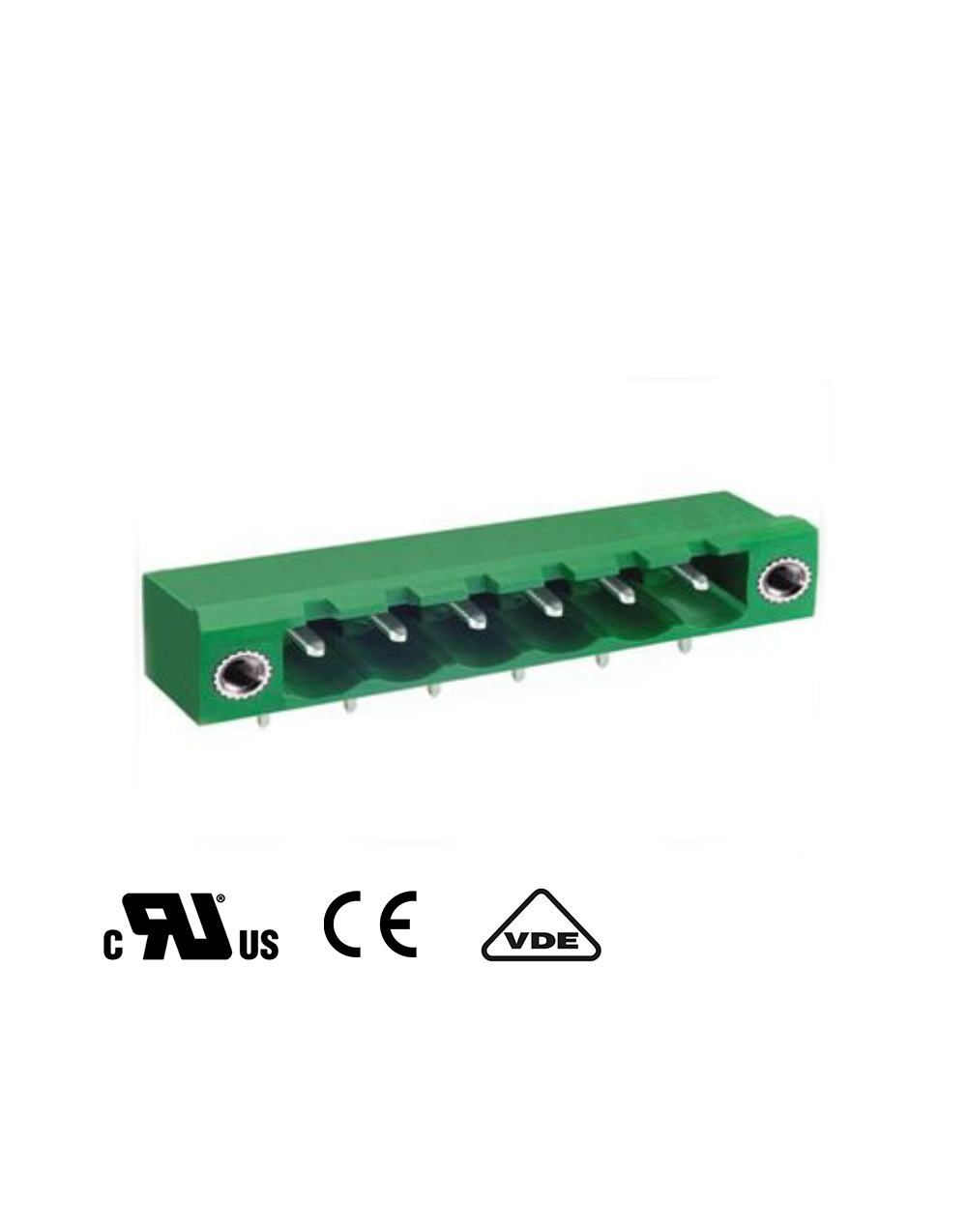

5.08mm Pitch R/A Header with Mounting
Download: SPEC SHEET
Specifications:
| Pitch | 5.08 mm |
| Poles | 2~24 Poles |
| Length A | A=5.08xP+10.60mm |
| Housing Material | PA 66 |
| Pin Dimensions | Brass, Tin Plated |
| PCB Hole Diameter | Ø1.5 |
| Operating Temperature | -40°C to +105°C |
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1371 | 1371-ME050-02 | 2
| 200
|
| 1372 | 1372-ME050-03 | 3 | 200 |
| 1373 | 1373-ME050-04 | 4 | 200 |
| 1374 | 1374-ME050-05 | 5 | 200 |
| 1375 | 1375-ME050-06 | 6 | 200 |
| 1376 | 1376-ME050-07 | 7 | 200 |
| 1377 | 1377-ME050-08 | 8 | 200 |
| 1378 | 1378-ME050-09 | 9 | 200 |
| 1379 | 1379-ME050-10 | 10 | 200 |
| 1380 | 1380-ME050–11 | 11 | 100 |
| 1381 | 1381-ME050-12 | 12 | 100 |
| 1382 | 1382-ME050–13 | 13 | 100 |
| 1383 | 1383-ME050–14 | 14 | 100 |
| 1384 | 1384-ME050–15 | 15 | 100 |
| 1385 | 1385-ME050–16 | 16 | 100 |
| 1386 | 1386-ME050–17 | 17 | 100 |
| 1387 | 1387-ME050–18 | 18 | 100 |
| 1388 | 1388-ME050–19 | 19 | 100 |
| 1389 | 1389-ME050-20
| 20 | 100 |
| 1390 | 1390-ME050–21 | 21 | 100 |
| 1391 | 1391-ME050–22 | 22 | 100 |
| 1392 | 1392-ME050–23 | 23 | 100 |
| 1393 | 1393-ME050-24
| 24 | 100 |
