Description

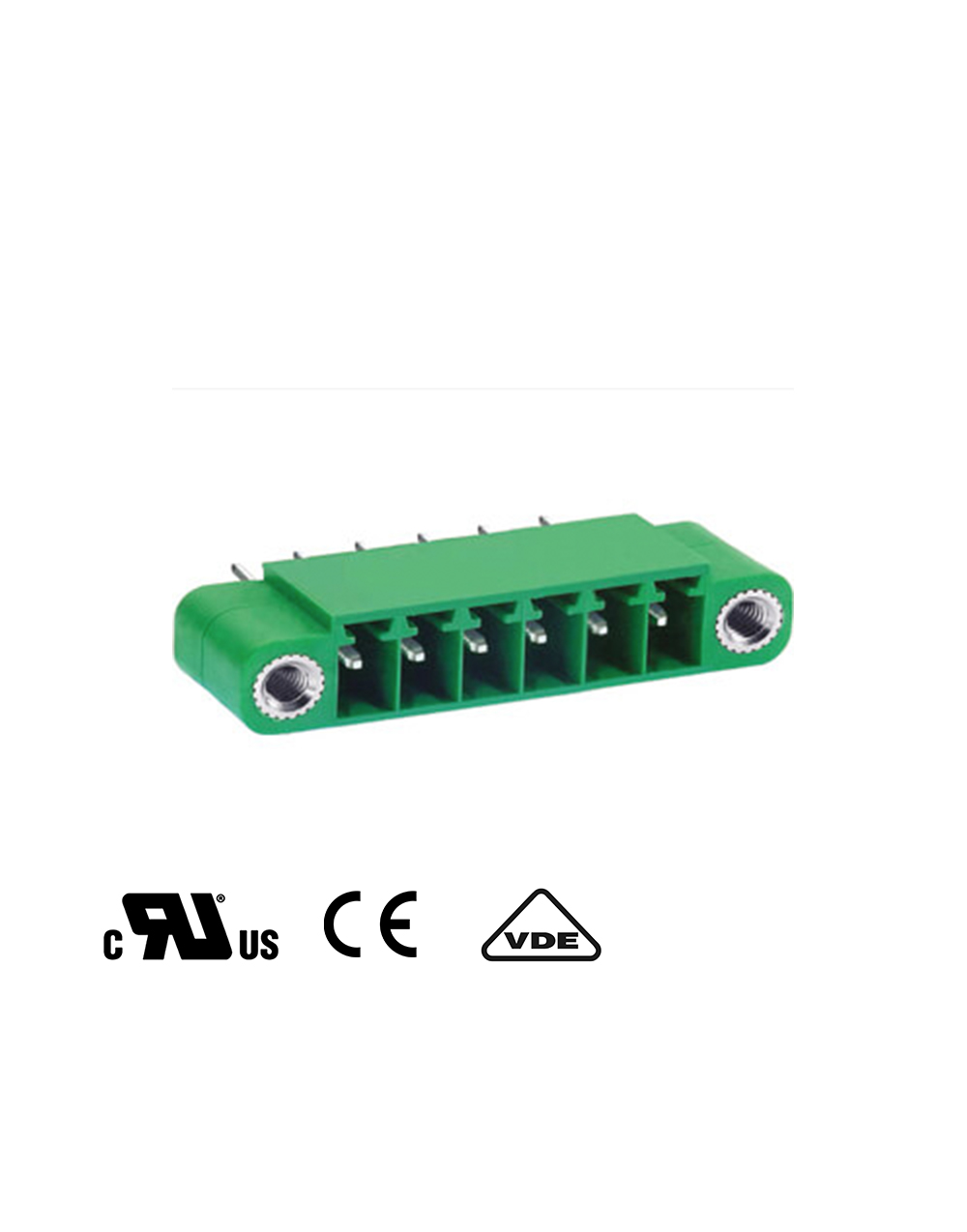

3.81mm Pitch Straight Header with Mounting
Download: Spec Sheet
Specifications:
| Pitch | 3.81 mm |
| Poles | 2~24 Poles |
| Length A | A=3.81xP+10.40mm |
| Housing Material | PA 66 |
| Pin Dimensions | Brass, Tin Plated |
| PCB Hole Diameter | Ø1.3 |
| Operating Temperature | -40°C to +105°C |
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1618 | 1618-ME060-02 | 2
| 200
|
| 1619 | 1619-ME060-03 | 3 | 200 |
| 1620 | 1620-ME060-04 | 4 | 200 |
| 1621 | 1621-ME060-05 | 5 | 200 |
| 1622 | 1622-ME060-06 | 6 | 200 |
| 1623 | 1623-ME060-07 | 7 | 200 |
| 1624 | 1624-ME060-08 | 8 | 200 |
| 1625 | 1625-ME060-09 | 9 | 200 |
| 1626 | 1626-ME060-10 | 10 | 200 |
| 1627 | 1627-ME060-11 | 11 | 100 |
| 1628 | 1628-ME060-12 | 12 | 100 |
| 1629 | 1629-ME060-13 | 13 | 100 |
| 1630 | 1630-ME060-14 | 14 | 100 |
| 1631 | 1631-ME060-15 | 15 | 100 |
| 1632 | 1632-ME060-16 | 16 | 100 |
| 1633 | 1633-ME060-17 | 17 | 100 |
| 1634 | 1634-ME060-18 | 18 | 100 |
| 1635 | 1635-ME060-19 | 19 | 100 |
| 1636 | 1636-ME060-20 | 20 | 100 |
| 1637 | 1637-ME060-21 | 21 | 100 |
| 1638 | 1638-ME060-22 | 22 | 100 |
| 1639 | 1639-ME060-23 | 23 | 100 |
| 1640 | 1640-ME060-24
| 24 | 100 |
