3.81mm Pitch Straight Plug 2~20 Position UL ; CE Approved

3.81mm Pitch Straight Plug

Categories: 3.81 mm Str., Electro mechanical, Terminal Blocks

Description
Request a Quote

Description

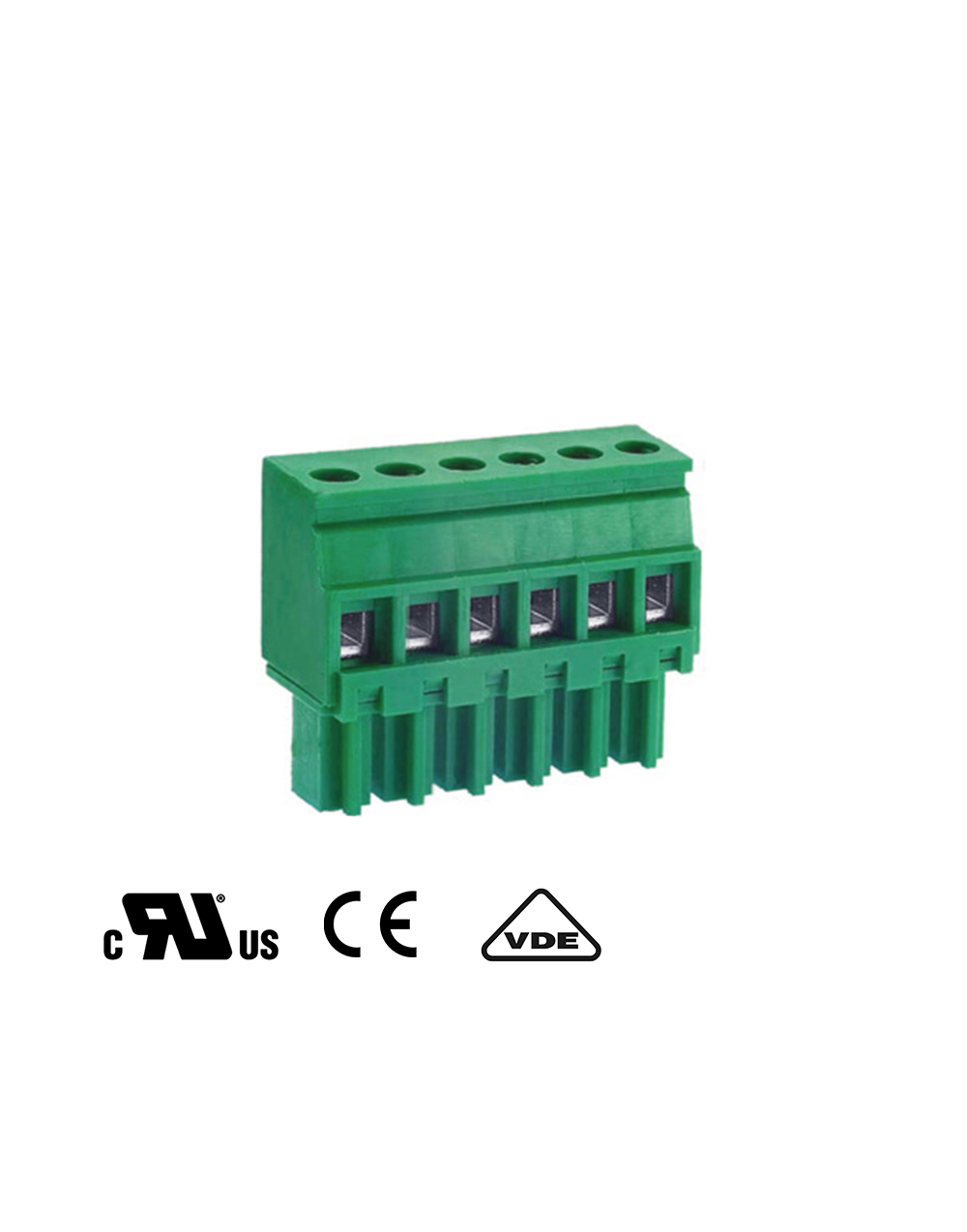

3.81mm Pitch Straight Plug

Download: Spec Sheet

Specifications:

Pitch	3.81 mm
Poles	2~20 Poles
Length A	A=3.81xP+0.80mm
Housing Material	PA 66
Cage Clamp	Brass, Ni Plated
Contact	Phosphor Bronze, Tin Plated
Wire Size	16 ~ 24
Wire Strip Length	5-6mm
Tightening Torque, Max.	3 Lb-in
Operating Temperature	-40°C to +105°C


SKU#	P/N	POLE	MOQ
1599	1599-MC421-02	2	200
1600	1600-MC421-03	3	200
1601	1601-MC421-04	4	200
1602	1602-MC421-05	5	200
1603	1603-MC421-06	6	200
1604	1604-MC421-07	7	200
1605	1605-MC421-08	8	200
1606	1606-MC421-09	9	200
1607	1607-MC421-10	10	200
1608	1608-MC421–11	11	100
1609	1609-MC421-12	12	100
1610	1610-MC421–13	13	100
1611	1611-MC421–14	14	100
1612	1612-MC421–15	15	100
1613	1613-MC421–16	16	100
1614	1614-MC421–17	17	100
1615	1615-MC421–18	18	100
1616	1616-MC421–19	19	100
1617	1617-MC421–20	20	100
