PG Thread – Nylon Cable Glands UL , CE Approved
Description

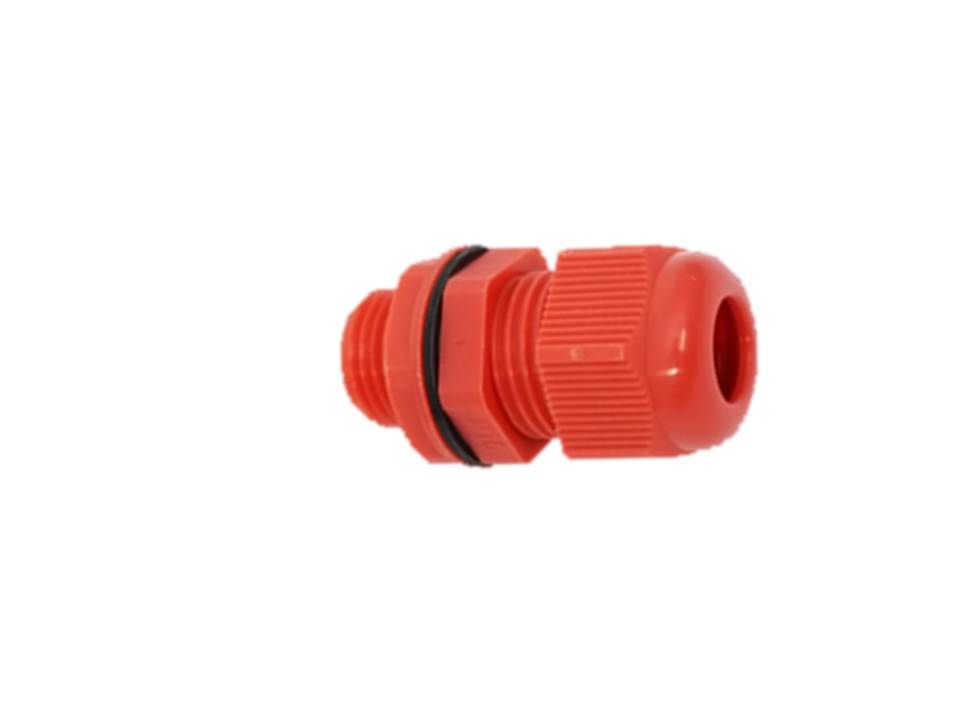

PG Thread – Nylon Cable Glands
- Material: UL approved Nylon 66, 94V-2
- Color: Black, available in other colors.
- PG Thread (DIN Standard) without washer.
- Protection: IP68 (only if the washer is assembled).
| SKU# | PART# | Mounting Hole | D1 | D2 | B1 | L1 | L2 | L3 | Cable Range | MOQ |
| 2055 | 2055-PG7 | 12.5~12.8 | 12.5 | 8.3 | 6.9 | 7.9 | 20 | 13.3 | 3.5 ~ 6 | 100 |
| 2056 | 2056-PG9 | 15.2~15.5 | 15.2 | 10.5 | 8 | 14.7 | 22 | 15.1 | 4 ~ 8 | 100 |
| 2057 | 2057-PG11 | 18.3~18.9 | 18.3 | 13.2 | 10.5 | 7.9 | 23.7 | 18.3 | 5 ~ 10 | 100 |
| 2058 | 2058-PG13 | 20.4~20.7 | 20.4 | 15.5 | 12 | 8.9 | 24.6 | 18.9 | 6 ~ 12 | 100 |
| 2059 | 2059-PG16 | 22.5~22.8 | 22.5 | 17.2 | 14 | 9.8 | 26.2 | 19.5 | 10 ~ 14 | 100 |
| 2060 | 2060-PG21 | 22.5~22.8 | 28.3 | 22.4 | 18.4 | 10.8 | 30 | 23.7 | 13 ~ 18 | 100 |
| 2061 | 2061-PG29 | 28.3~28.7 | 37 | 30.6 | 25 | 10.8 | 35 | 27.4 | 18 ~ 25 | 100 |
| 2062 | 2062-PG36 | 37.0~37.4 | 47 | 35.3 | 35.5 | 14.5 | 42.3 | 30.3 | 22 ~ 32 | 100 |
