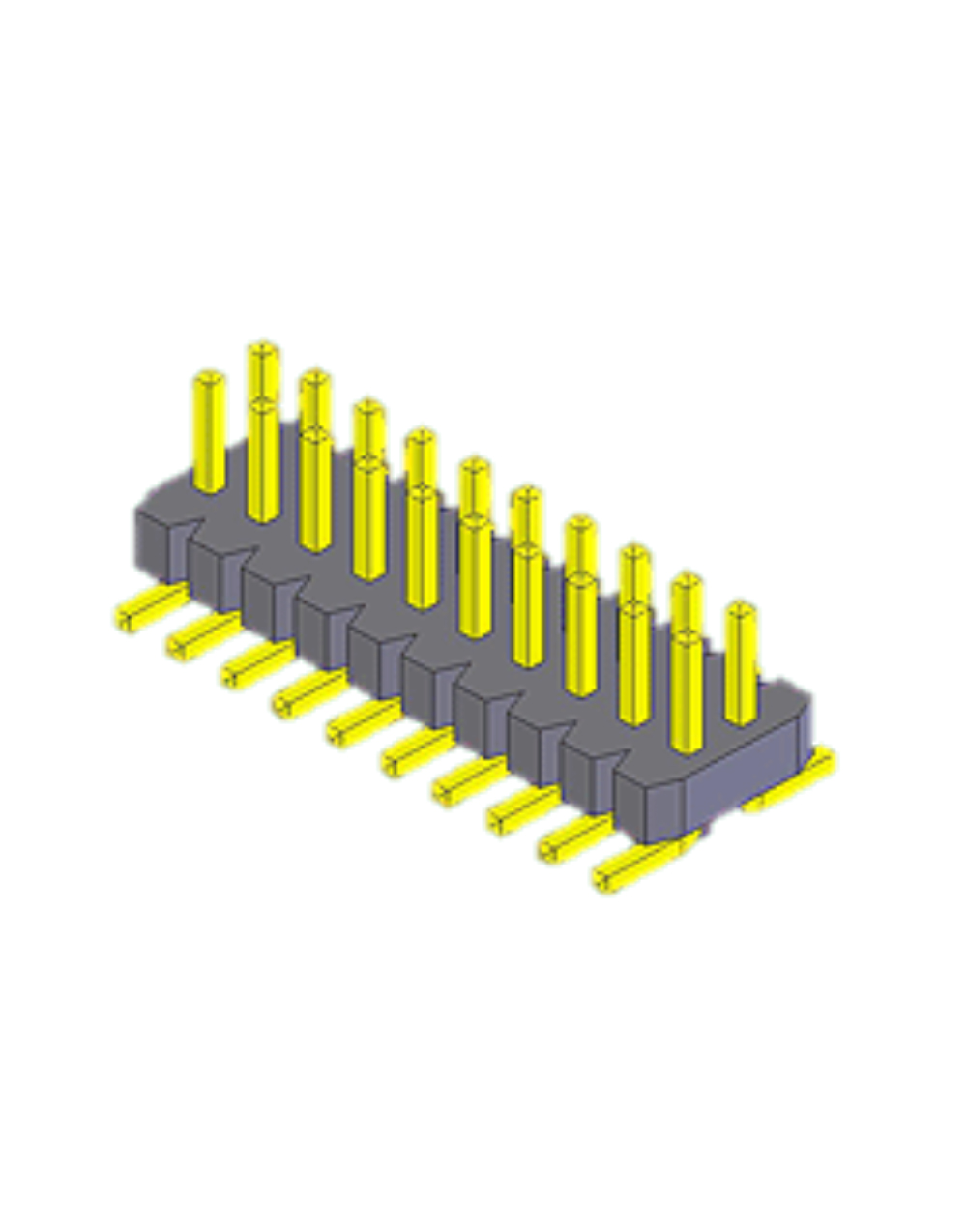

Pin Header1.0mm(0.039″)pitch

Categories: Board to Board Connectors, Inter Connects

Description
Request a Quote

Description

Current rating
0.8 Amp
Insulator Resistance 900 Megohms Min.
Dielectric Withstanding AC 500 V
Operating Temperature -40°C～ +105℃
Max Processing Temp 260℃ for 3～5 seconds

Contact Material Bronze
Insulator Material High Temperature, Thermoplastic.UL 94V-0
Standard Nylon-6T
Finish Tin,Gold Plated
Standard Gold Flash all over

A/B	SKU#	PART#	# OF CONTACTS	MOQ
1.8	2408	2408-P801-XXX	4~100	1000
