PUSHWIRE connector for Luminaire disconnect with “make first/break last” ground circuit SOLID CONDUCTORS —18-12 AWG; STRANDED CONDUCTORS —16-12 AWG
Description

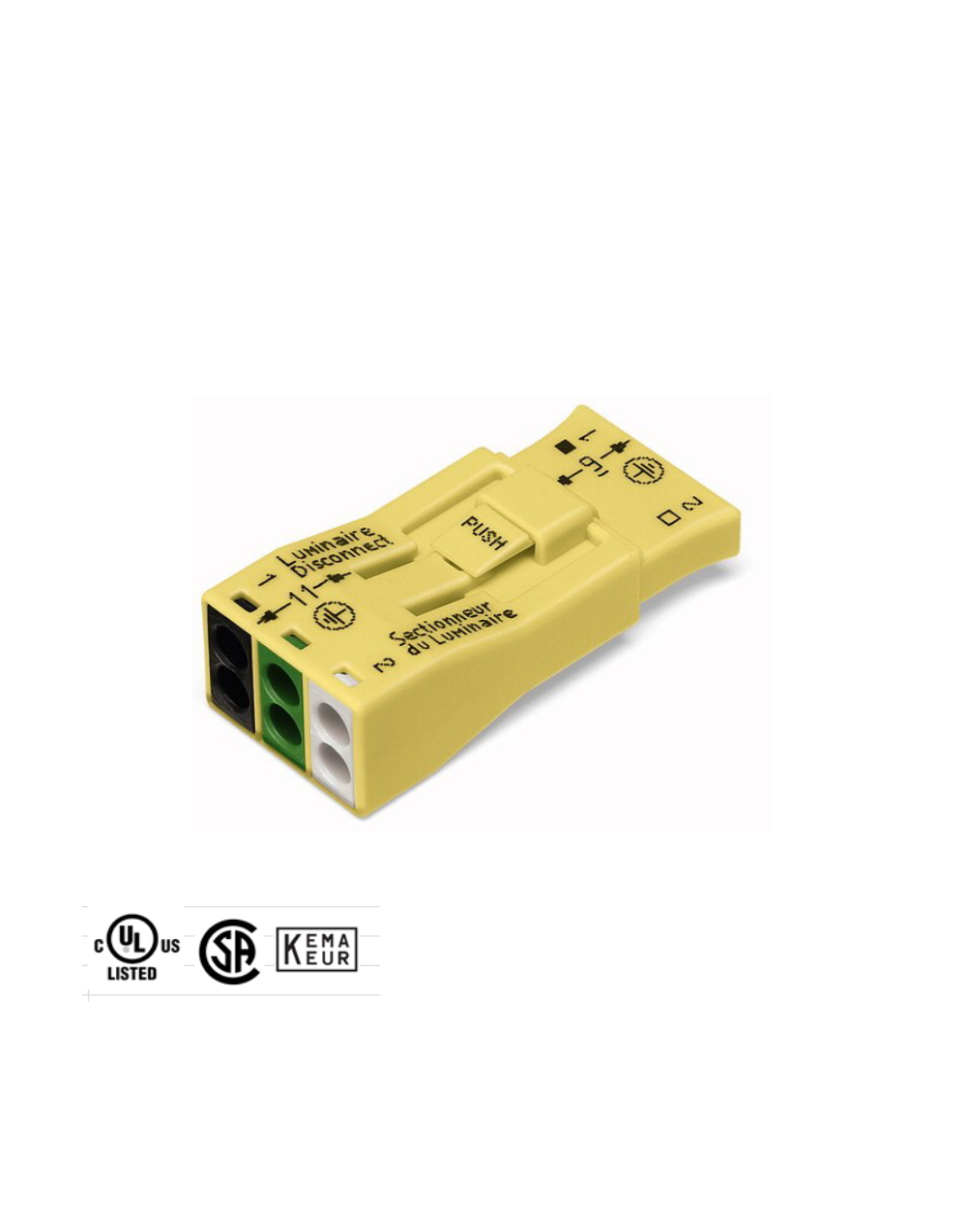

PUSH WIRE® connector for Luminaire disconnect with “make first/break last” ground circuit
3 Pole Connector
- Molded in color coding for circuit wiring
- 2 connectors per pole on male side for easy chaining
- 20A current capacity to support multiple fixture loads
- Integrated locking latch
RATED VOLTAGE: 660V
NOMINAL CURRENT: 20A male / 6A female
WIRE SIZE:
SOLID CONDUCTORS —18-12 AWG;
STRANDED CONDUCTORS —16-12 AWG
STRIP LENGTH: 11-13 mm
MAX. TEMP: 105°C
