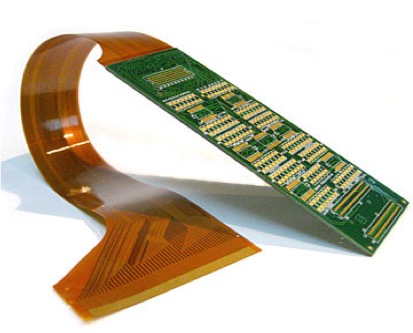

Rigid Flex Circuit

Custom designed as per your requirements; drawings; gerber files.


Custom designed as per your requirements; drawings; gerber files

Rigid flex PCB have been used in the military and aerospace industries for more than 20 years. In most rigid flex circuit boards, the circuitry consists of multiple flexible circuit inner layers selectively attached together using an epoxy pre-preg bonding film, similar to a multilayer flexible circuit. However, a multilayer rigid flex circuit incorporates a board externally, internally or both as needed to accomplish the design.

Flex and Rigid-Flex applications also provide increased reliability. Mean time between failure rates (MTBF) typically exceed those of standard PCB sets with discrete wires and connectors, often becoming the choice of companies and engineers alike for its dependable and consistent performance.


  • Flexible Printed Circuit Boards with 8 layers rigid PCB
  • Single-Sided Flexible with rigid PCB board up to 6 layer
  • Double-Sided Flexible Printed Circuit Boards  with 4 layer to 12 layer rigid PCB
  • Multilayer Flexible Printed Circuit Boards with multilayer rigid PCB
  • Board-to-chip
  • Chip-to-chip connections

Diverse Application for a variety of industries, including:

  • Consumer Electronics
  • Industrial Controls
  • Medical
  • Military
  • Optoelectronics
  • Semiconductor
  • Testing & Measurements
  • Wireless Networks
