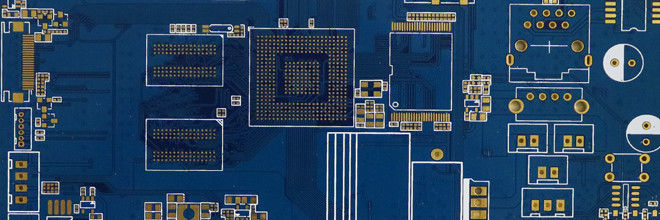

RIGID PCB
Custom designed as per your requirements; drawings; gerber files.
Description
Custom designed as per your requirements; drawings; gerber files.
PCB Specifications
- Maximum Panel size: 600*770mm( 23.62″*30.31″)
- Maximum Number of Layers: 1-36
- Copper Thickness: 0.5 oz to 20.0 oz
- Minimum Line Width: 3 mil
- Minimum Line spacing: 3 mil
- Smallest Hole: 0.006″
- Blind, Buried and plugged Vias
- Controlled impedance
Material
- Thickness: 0.008″ to 0.240″
- FR-4
- High TG FR-4
- PTFE
Solder Mask
- LPI – Green, Yellow, Black, Red, Blue etc.
- Peelable Mask
- Final Finishes
SMOBC (HASL)
- Carbon
- Selective Gold Plating
- Hard and Soft Gold
- Immersion Gold
- Immersion Silver
- Immersion Tin
- OSP
Legend
- White
- Other colors per your request
- Inspection Methods
- 100% Visual inspection
- Electrical testing – Flying probe or Nails Bed
- Sample lot inspection
- Cross sectioning
Delivery Rush: 24 Hours
Standard Prototype: 5 days
Standard Production: 10 days
