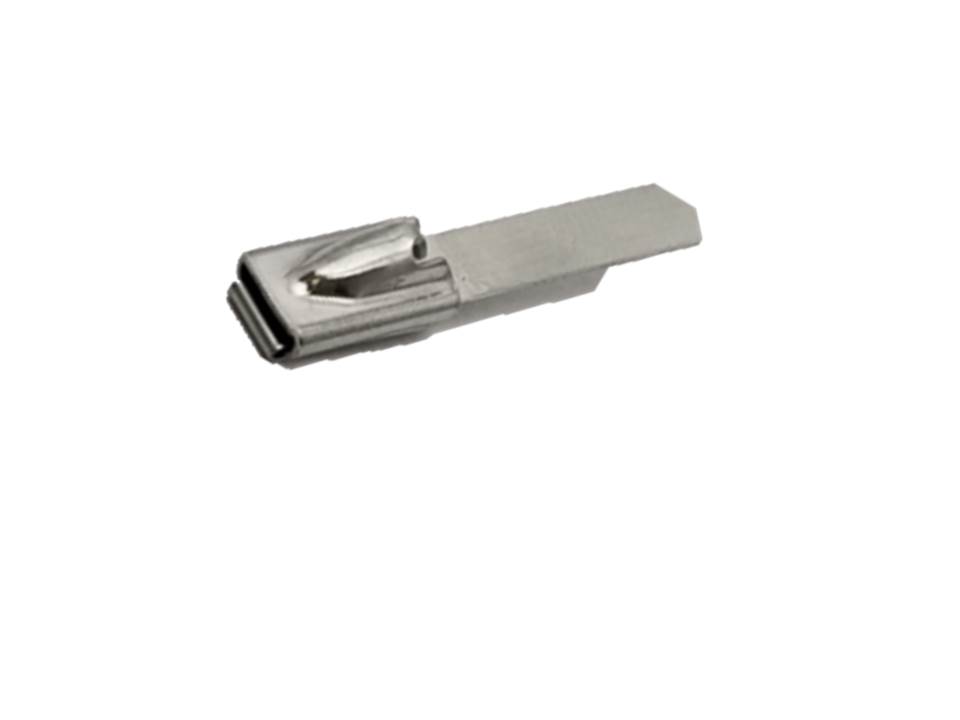

Stainless Steel Cable ties – Ball Self-Lock SS304 ; SS316 UL Approved

Categories: Cable Management, Cable Ties

Description

Description

Unique ball locking mechanism
High tensile strength
Non flammability
Working temperature -60°C ~ 550°C
High resistance to acetic acid, sulphuric acid, corrosion.
S304 ,SS316

SKU#	PART#	WIDTH	LENGTH	THICKNESS	MAX. BUNDLE	TENSILE STRENGTH	MOQ
		(mm)	(mm)	(mm)	DIA (mm)	(KGS)
1970	1970-46-100	4.6	100	0.25	23	80	10,000
1971	1971-46-150		150		37		10,000
1972	1972-46-200		200		50		10,000
1973	1973-46-250		250		63		10,000
1974	1974-46-300		300		76		10,000
1975	1975-46-350		350		89		10,000
1976	1976-46-400		400		102		10,000
1977	1977-46-450		450		115		10,000
1978	1978-46-500		500		128		10,000
1979	1979-46-550		550		141		10,000
1980	1980-79-150	7.9	150	0.25	37	100	10,000
1981	1981-79-200		200		50		10,000
1982	1982-79-250		250		63		10,000
1983	1983-79-300		300		76		10,000
1984	1984-79-350		350		89		10,000
1985	1985-79-400		400		102		10,000
1986	1986-79-500		500		128		10,000
1987	1987-79-1000		1000		286		10,000
1988	1988-100-200	10.0	200	0.25	50	100	10,000
1989	1989-100-300		300		76		5,000
1990	1990-100-400		400		102		5000
1991	1991-100-500		500		128		5000
1992	1992-100-1000		1000		286		5000
1993	1993-100-1200		1200		350		5000
1994	1994-120-200	12.0	200	0.25	50	120	5000
1995	1995-120-250		250		63		5000
1996	1996-120-300		300		76		5000
1997	1997-120-400		400		102		5000
1998	1998-120-500		500		128		5,000
1999	1999-120-1200		1200		350		5000
2000	2000-150-300	15.0	300	0.4	76	150	5000
2001	2001-150-400		400		102		5000
2002	2002-150-500		500		128		5000
2003	2003-150-1000		1000		286		5000
2004	2004-190-800	19.0	800	0.4	223	150	5000
2005	2005-190-1000		1000		286		5000
2006	2006-190-1200		1200		350		5000
2007	2007-190-1500		1500		445		5,000
2008	2008-190-1800		1800		540		5000
2009	2009-190-2000		2000		605		5000
