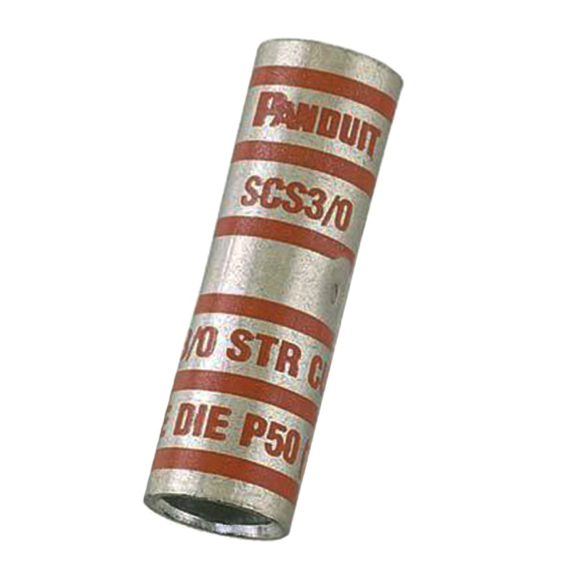

Standard Barrel Butt Splice AWG 6 ~ 1000 KCMIL
Description
Standard Barrel Butt Splice
| 2383 | SCS8-L | # 8 AWG | 0.270 | 1.500 | RED | 50 |
| 2384 | SCS6-L | # 6 AWG | 0.310 | 1.750 | BLUE | 50 |
| 2385 | SCS4-L | #4-#3 AWG STR,#2 SOL | 0.380 | 1.750 | GRAY | 50 |
| 2386 | SCS2-Q | #2AWG | 0.420 | 1.870 | BROWN | 50 |
| 2387 | SCS1-E | #1 AWG | 0.470 | 1.870 | GREEN | 10 |
| 2388 | SCS1/O-X | 1/O AWG | 0.520 | 1.870 | PINK | 10 |
| 2389 | SCS2/O-X | 2/O AWG | 0.580 | 2.000 | BLACK | 10 |
| 2390 | SCS3/O-X | 3/O AWG | 0.640 | 2.120 | ORANGE | 10 |
| 2391 | SCS4/O-X | 4/O AWG | 0.710 | 2.120 | PURPLE | 10 |
| 2392 | SCS250-X | 250 KCMIL | 0.770 | 2.250 | YELLOW | 10 |
| 2393 | SCS300-X | 300 KCMIL | 0.810 | 2.250 | WHITE | 10 |
| 2394 | SCS350-X | 350 KCMIL | 0.870 | 2.370 | RED | 10 |
| 2395 | SCS400-6 | 400 KCMIL | 0.950 | 2.500 | BLUE | 10 |
| 2396 | SCS500-6 | 500 KCMIL | 1.050 | 2.870 | BROWN | 10 |
| 2397 | SCS600-6 | 600 KCMIL | 1.180 | 2.870 | GREEN | 10 |
| 2398 | SCS750-6 | 750 KCMIL | 1.290 | 3.370 | BLACK | 10 |
| 2399 | SCS1000-3 | 1000 KCMIL | 1.500 | 3.870 | WHITE | 10 |
