Description

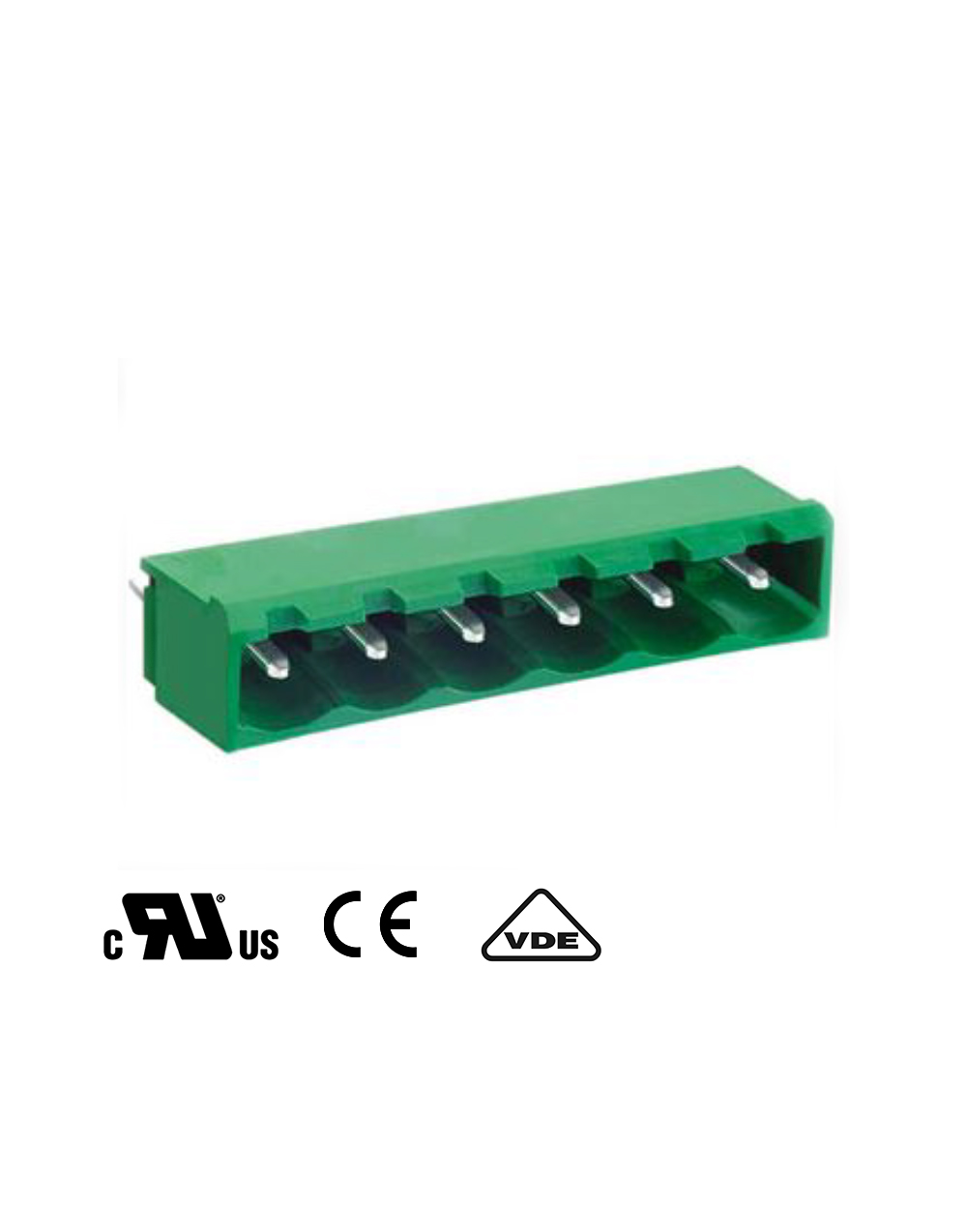

5.08mm Pitch Straight Plug Header
Download: SPEC SHEET
Specifications:
Pitch | 5.08 mm |
Poles | 2-24 Poles |
Length A | A=5.08xP+10.16mm |
Housing Material | PA 66 |
Pin Dimensions | Brass, Tin Plated |
PCB Hole diameter | Ø1.5 |
Operating Temperature | -40°C to +105°C |
SKU# | P/N | POLE | MOQ |
1417 | 1417-ME040-02 | 2 | 200 |
1418 | 1418-ME040-03 | 3 | 200 |
1419 | 1419-ME040-04 | 4 | 200 |
1420 | 1420-ME040-05 | 5 | 200 |
1421 | 1421-ME040-06 | 6 | 200 |
1422 | 1422-ME040-07 | 7 | 200 |
1423 | 1423-ME040-08 | 8 | 200 |
1424 | 1424-ME040-09 | 9 | 200 |
1425 | 1425-ME040-10 | 10 | 200 |
1426 | 1426-ME040-11 | 11 | 100 |
1427 | 1427-ME040-12 | 12 | 100 |
1428 | 1428-ME040-13 | 13 | 100 |
1429 | 1429-ME040-14 | 14 | 100 |
1430 | 1430-ME040-15 | 15 | 100 |
1431 | 1431-ME040-16 | 16 | 100 |
1432 | 1432-ME040-17 | 17 | 100 |
1433 | 1433-ME040-18 | 18 | 100 |
1434 | 1434-ME040-19 | 19 | 100 |
1435 | 1435-ME040-20 | 20 | 100 |
1436 | 1436-ME040-21 | 21 | 100 |
1437 | 1437-ME040-22 | 22 | 100 |
1438 | 1438-ME040-23 | 23 | 100 |
1439 | 1439-ME040-24 | 24 | 100 |
