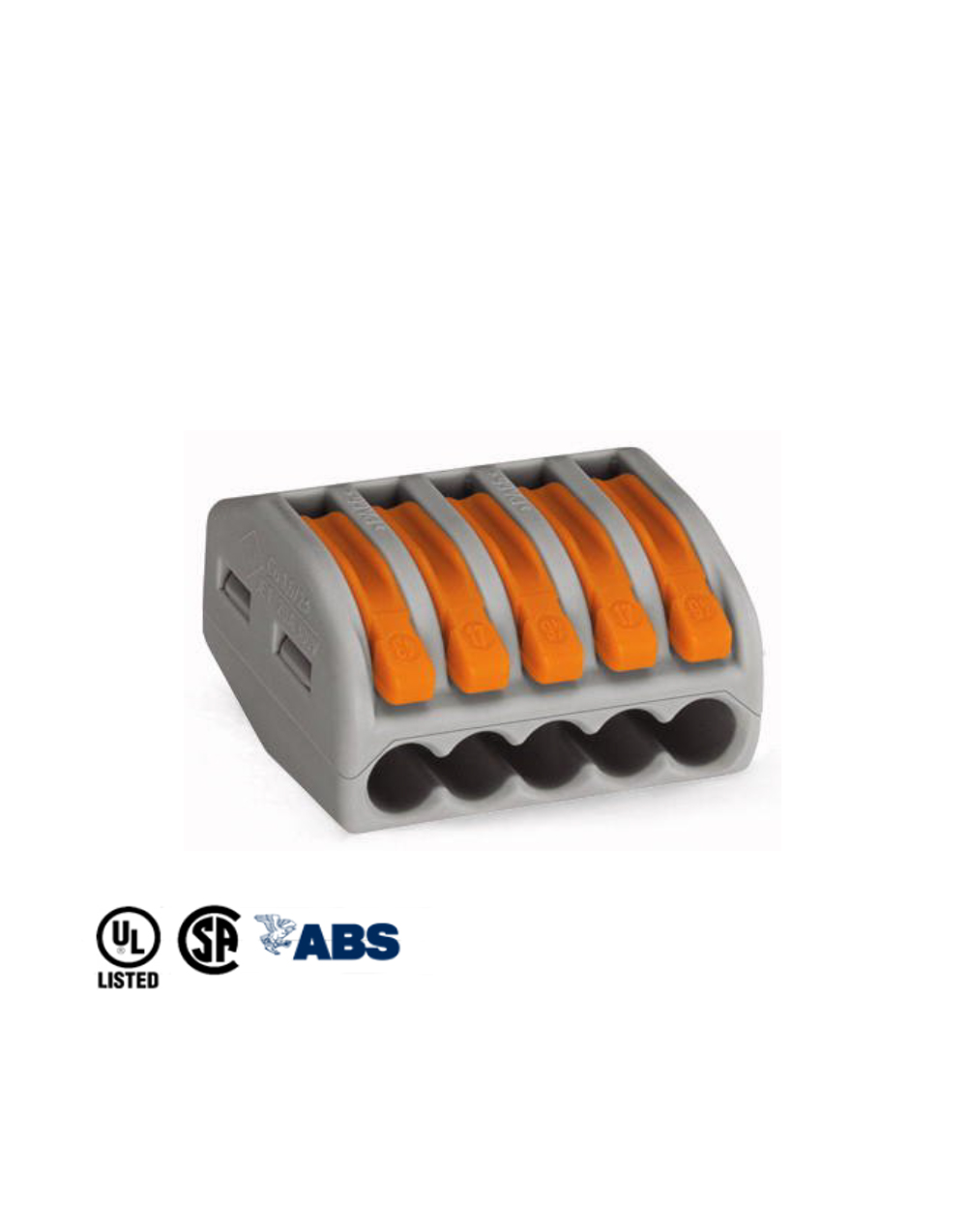

5 Position Splicing Connector, All wires type: solid, stranded, Flex-28~12 AWG
$21.15 $17.85
Box of 40 Pcs
Description
Compact splicing connector.
- Solid & Stranded Conductors: 0.08-2.5mm2, Fine Stranded Conductor: 0.08-4mm2
- Current Rating: 20A
- Voltage Rating: 600V
- Rated Voltage: 660V
- Nominal Current: 20A
- Wire Size:
Solid Conductors – 28-12
Stranded Conductors – 28-12
Flexible Conductors – 28-12 - Strip Length: 9-10mm
- Max. Temp: 105°C
