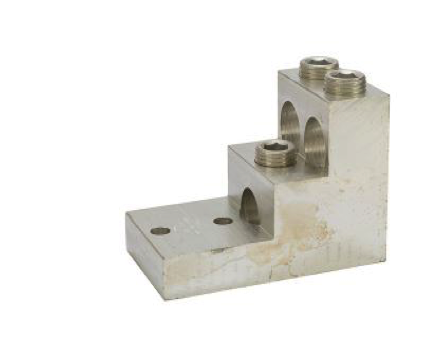

Aluminum, Stacked Lug UL Listed for Wire Connector E155027 Temperature Rating: 90 °C Voltage: 600V max. (2000V ma. per UL486B)
Description
- UL Listed for Wire Connector E155027
- UL486A/B Listed. AL9CU
- Temperature Rating: 90 °C
- Voltage: 600V max. (2000V ma. per UL486B)
Download:
| 2102 | 2102-300T-2 | 2 | 1 | 300-6 | 5/16″ | 3.00 | 2.00 | 1.00 | 0.47 | 1.00 | N/A | 0.31 | 0.33 | 275 | 25 |
| 2103 | 2103-350T-2 | 2 | 2 | 350-6 | 5/16 | 3.56 | 2.00 | 1.06 | 0.47 | 1.56 | 0.60 | 0.25 | .33X.43 | 275 | 25 |
| 2104 | 2104-600T-2 | 2 | 3 | 600-2 | 3/8″ | 4.91 | 3.00 | 1.50 | 0.38 | 2.34 | 1.38 | 0.75 | 0.41 | 375 | 25 |
| 2105 | 2105-600T-3 | 3 | 4 | 600-2 | 3/8″ | 4.91 | 3.00 | 2.50 | 0.38 | 2.34 | 1.38 | 0.75 | 0.41 | 375 | 25 |
| 2106 | 2106-600T-4 | 4 | 5 | 600-2 | 3/8″ | 4.91 | 3.00 | 2.50 | 0.38 | 2.34 | 1.38 | 0.75 | 0.41 | 375 | 25 |
| 2107 | 2107-800T-2 | 2 | 3 | 800-300 | 1/2″ | 4.91 | 3.00 | 1.50 | 0.38 | 2.34 | 1.38 | 0.75 | 0.41 | 500 | 25 |
| 2108 | 2108-800T-3 | 3 | 4 | 800-300 | 1/2″ | 4.91 | 3.00 | 2.63 | 0.38 | 2.34 | 1.38 | 0.75 | 0.41 | 500 | 25 |
| 2109 | 2109-800T-4 | 4 | 5 | 800-300 | 1/2″ | 4.91 | 3.00 | 2.63 | 0.38 | 2.34 | 1.38 | 0.75 | 0.41 | 500 | 25 |
