Description

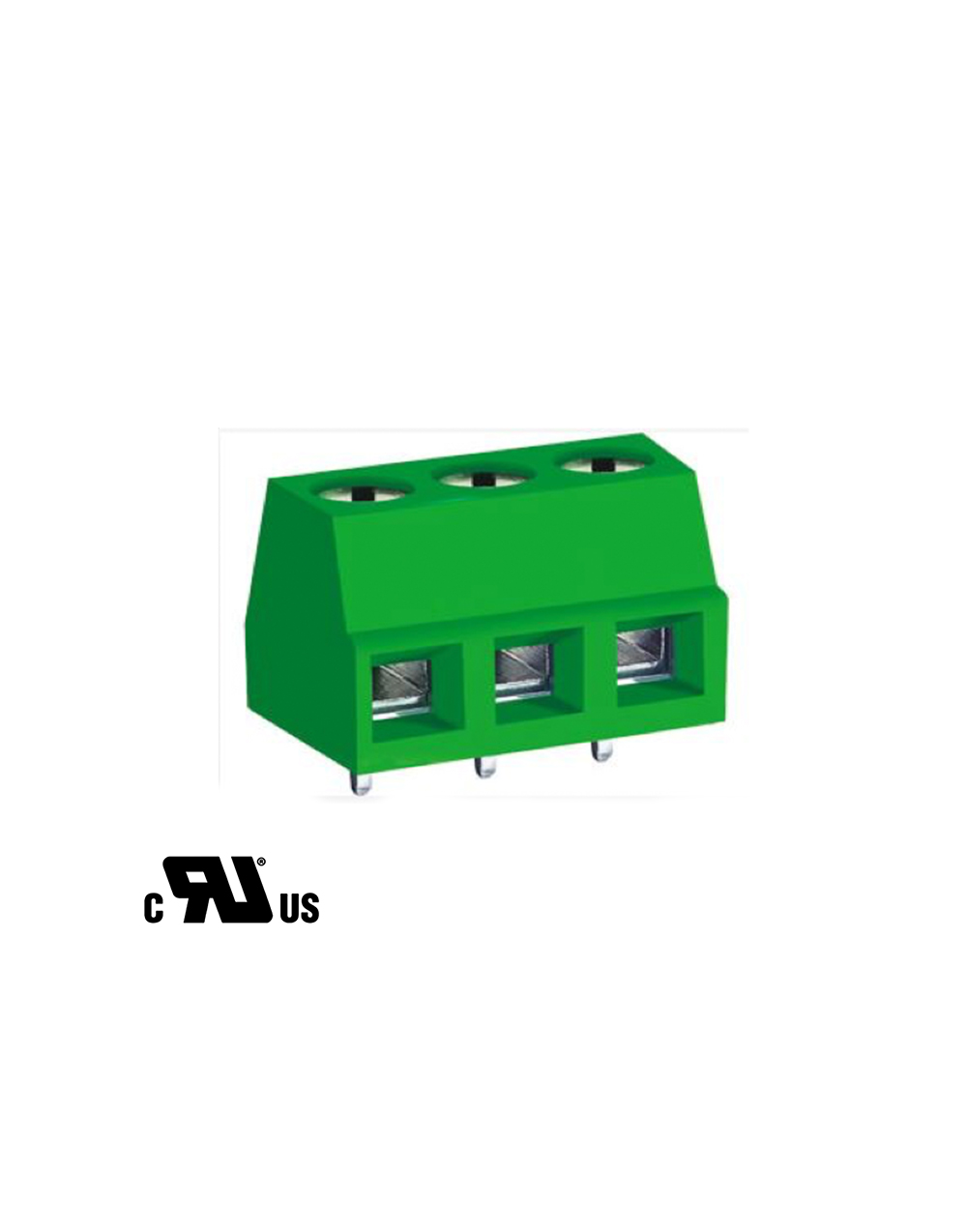

5.08mm Pitch PCB terminal block
Download:
Specifications:Spec Sheet 310
| Pitch | 5.08 mm |
| Poles | 2~24 Poles |
| Length A | A=5.08xP |
| Housing Material | PA 66 |
| Pin Dimensions | Brass, Tin Plated |
| Wire Size | 12 ~ 26 |
| Wire Strip Length | 7mm |
| PCB Hole Diameter | Ø1.5 |
| Tightening Torque, Max. | 7.0 Lb-in |
| Operating Temperature | -40°C to +105°C |
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1281 | 12821-MB310-02 | 2
| 200
|
| 1282 | 1282-MB310-03 | 3 | 200 |
| 1283 | 1283-MB310-04 | 4 | 200 |
| 1284 | 1284-MB310-05 | 5 | 200 |
| 1285 | 1285-MB310-06 | 6 | 200 |
| 1286 | 1286-MB310-07 | 7 | 200 |
| 1287 | 1287-MB310-08 | 8 | 200 |
| 1288 | 1288-MB310-09 | 9 | 200 |
| 1289 | 1289-MB310-10 | 10 | 200 |
| 1290 | 1290-MB310–11 | 11 | 100 |
| 1291 | 1291-MB310-12 | 12 | 100 |
| 1292 | 1292-MB310–13 | 13 | 100 |
| 1293 | 1293-MB310–14 | 14 | 100 |
| 1294 | 1294-MB310–15 | 15 | 100 |
| 1295 | 1295-MB310–16 | 16 | 100 |
| 1296 | 1296-MB310–17 | 17 | 100 |
| 1297 | 1297-MB310–18 | 18 | 100 |
| 1298 | 1298-MB310–19 | 19 | 100 |
| 1299 | 1299-MB310-20
| 20 | 100 |
| 1300 | 1300-MB310–21 | 21 | 100 |
| 1301 | 1301-MB310–22 | 22 | 100 |
| 1302 | 1302-MB310–23 | 23 | 100 |
| 1303 | 1303-MB310-24
| 24 | 100 |
