Description

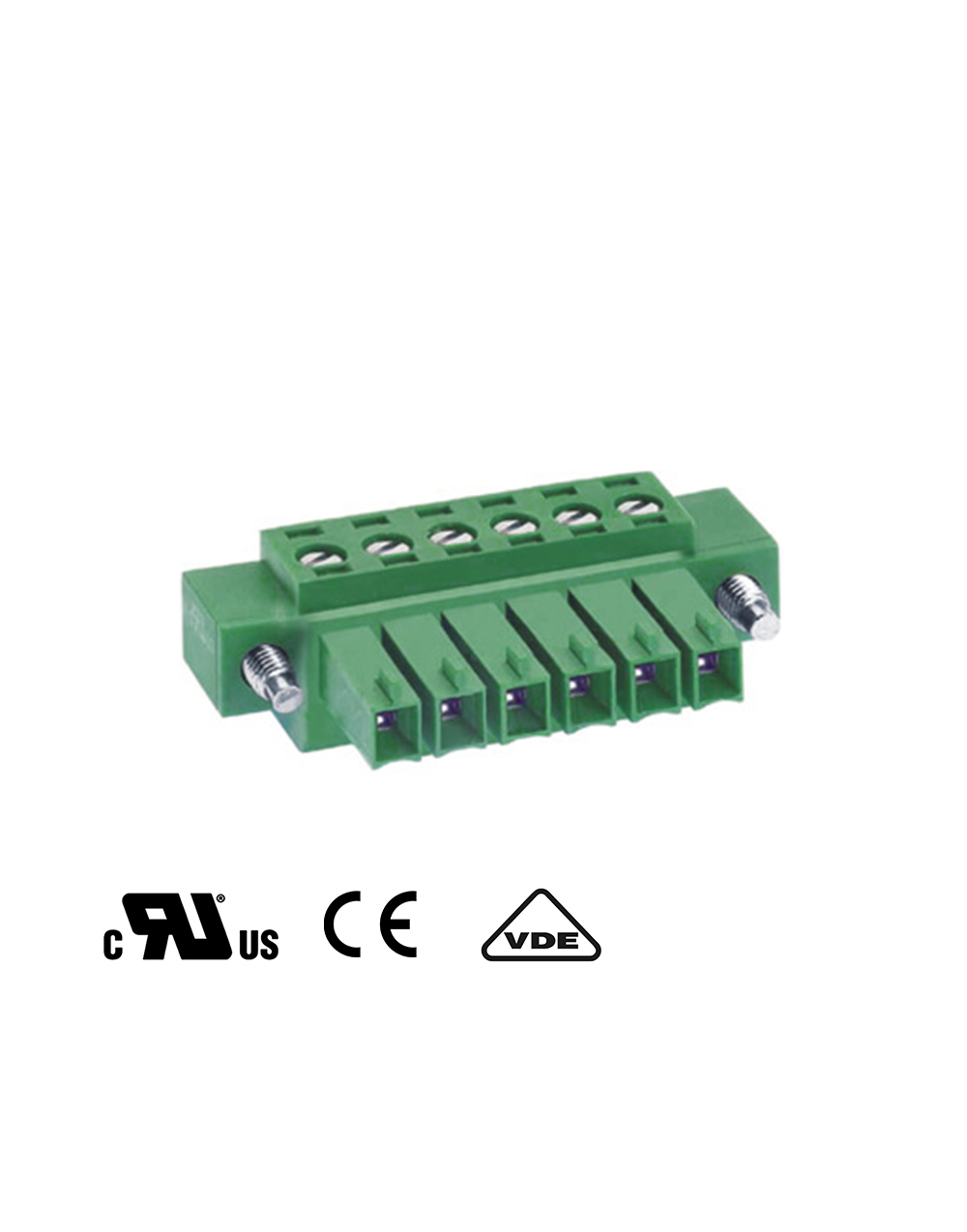

3.81mm Pitch R/A Plug with Mounting
Download : Spec Sheet
Specifications:
| Pitch | 3.81 mm |
| Poles | 2~24 Poles |
| Length A | A=3.81xP+10.40mm |
| Housing Material | PA 66 |
| Cage Clamp | Brass, Tin Plated |
| Contact | Phosphor Bronze, Tin Plated |
| Wire Size | 16 ~ 26 |
| Wire Strip Length | 5-6mm |
| Tightening Torque, Max. | 3 Lb-in |
| Operating Temperature | -40°C to +105°C |
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1553 | 1553-MC421-02 | 2
| 200
|
| 1554 | 1554-MC421-03 | 3 | 200 |
| 1555 | 1555-MC421-04 | 4 | 200 |
| 1556 | 1556-MC421-05 | 5 | 200 |
| 1557 | 1557-MC421-06 | 6 | 200 |
| 1558 | 1558-MC421-07 | 7 | 200 |
| 1559 | 1559-MC421-08 | 8 | 200 |
| 1560 | 1560-MC421-09 | 9 | 200 |
| 1561 | 1561-MC421-10 | 10 | 200 |
| 1562 | 1562-MC421-11 | 11 | 100 |
| 1563 | 1563-MC421-12 | 12 | 100 |
| 1564 | 1564-MC421-13 | 13 | 100 |
| 1565 | 1565-MC421-14 | 14 | 100 |
| 1566 | 1566-MC421-15 | 15 | 100 |
| 1567 | 1567-MC421-16 | 16 | 100 |
| 1568 | 1568-MC421-17 | 17 | 100 |
| 1569 | 1569-MC421-18 | 18 | 100 |
| 1570 | 1570-MC421-19 | 19 | 100 |
| 1571 | 1571-MC421-20 | 20 | 100 |
| 1572 | 1572-MC421-21 | 21 | 100 |
| 1573 | 1573-MC421-22 | 22 | 100 |
| 1574 | 1574-MC421-23 | 23 | 100 |
| 1575 | 1575-MC421-24
| 24 | 100 |
