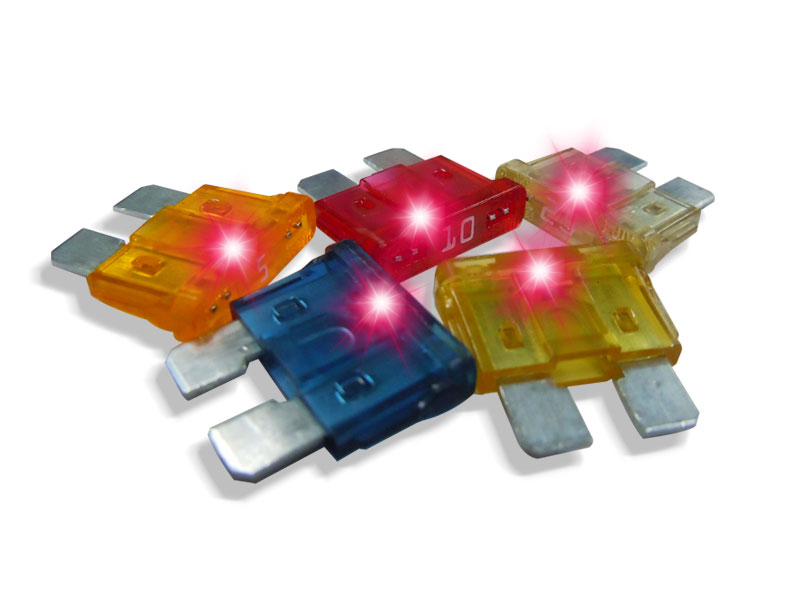

Intelligent Blade Fuse is designed with an indicating device located on top which lights up when the fuse is blown, further provide easy identification for blown fuse that needs replacement inside the fuse box assembly.
LED indicating device
Blade fuses are color-coded for easy amperage indentification
Fuse body is made by Transparent plastic
Fuse element is made by Zinc Alloy
Rating from 3A to 40A
MODEL
AMPERE RATING
VOLTAGE RATING
COLOR CODE
NOMINAL R OHMS
ATP-L03
3
32
VIOLET
0.030
ATP-L04
4
32
PINK
0.023
ATP-L05
5
32
TAN
0.017
ATP-L07
7.5
32
BROWN
0.0105
ATP-L10
10
32
RED
0.0075
ATP-L15
15
32
BLUE
0.0046
ATP-L20
20
32
YELLOW
0.0032
ATP-L25
25
32
NATURAL
0.0024
ATP-L30
30
32
GREEN
0.0018
ATP-L35
35
32
BLUE GREEN
0.0016
ATP-L40
40
32
AMBER
0.0013
SKU#
P/N
MOQ
1917
1917-ATP-L03
250
1918
1917-ATP-L04
250
1919
1917-ATP-L05
250
1920
1917-ATP-L07.5
250
1921
1917-ATP-L10
250
1922
1917-ATP-L15
250
1923
1917-ATP-L20
250
1924
1917-ATP-L25
250
1925
1917-ATP-L30
250
1926
1917-ATP-L35
250
1927
1917-ATP-L40
250
