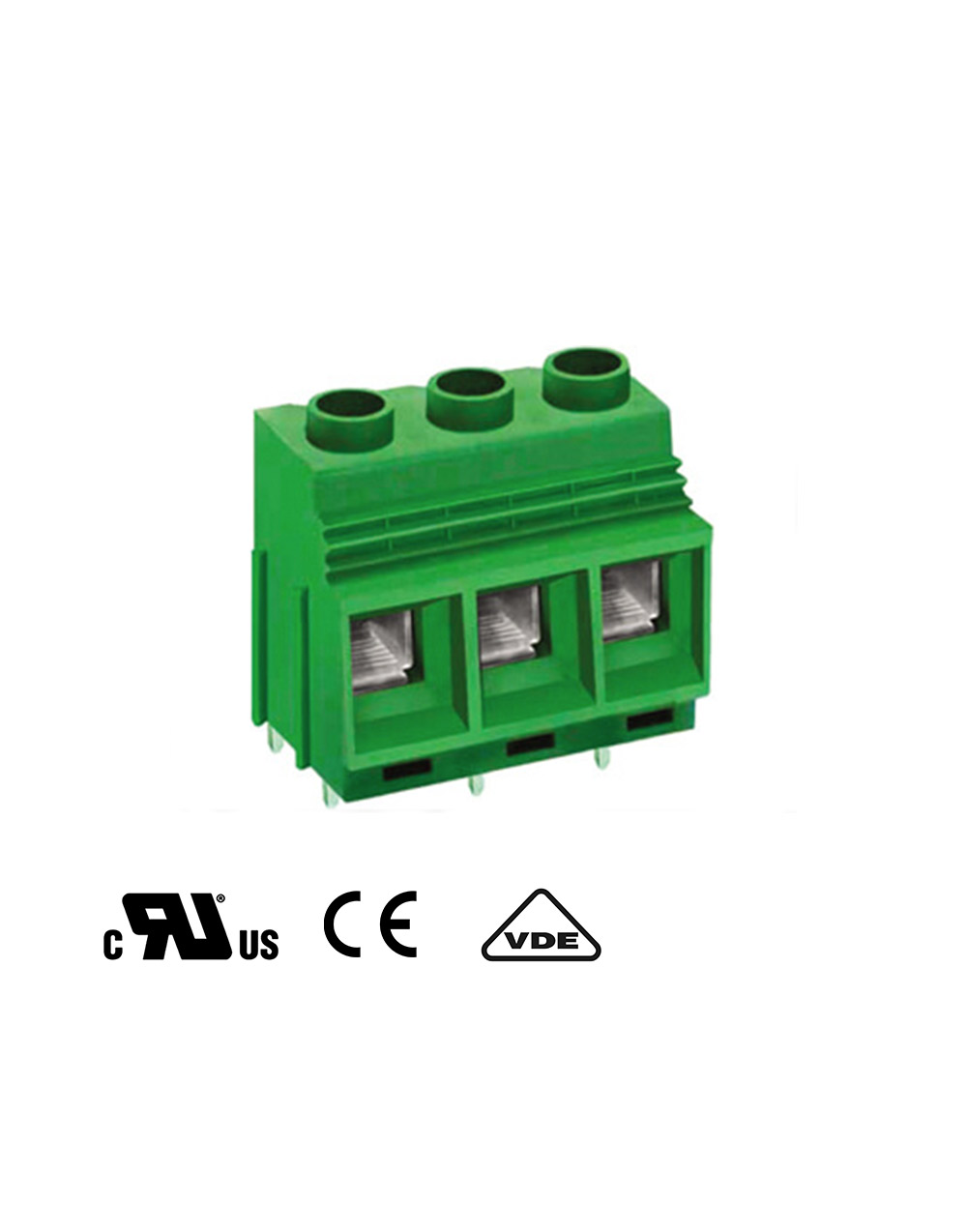

10.16 mm pitch PCB Power Terminal block 2~3 Position UL ; CE Approved
5.08mm pitch PCB Power Terminal block
Description
10.16 mm pitch PCB Power Terminal block
Download: Spec Sheet
Specifications:
| Pitch | 10.16 mm |
| Poles | 2~3 Poles |
| Length A | A=10.16xP |
| Housing Material | PA 66 |
| Pin Dimensions | Steel, Tin Plated |
| Contact | Copper, Tin Plated |
| Wire Size | 6 ~ 20 |
| Wire Strip Length | 10-11mm |
| PCB Hole Diameter | Ø1.8 |
| Tightening Torque, Max. | 20 Lb-in |
| Operating Temperature | -40°C to +105°C |
