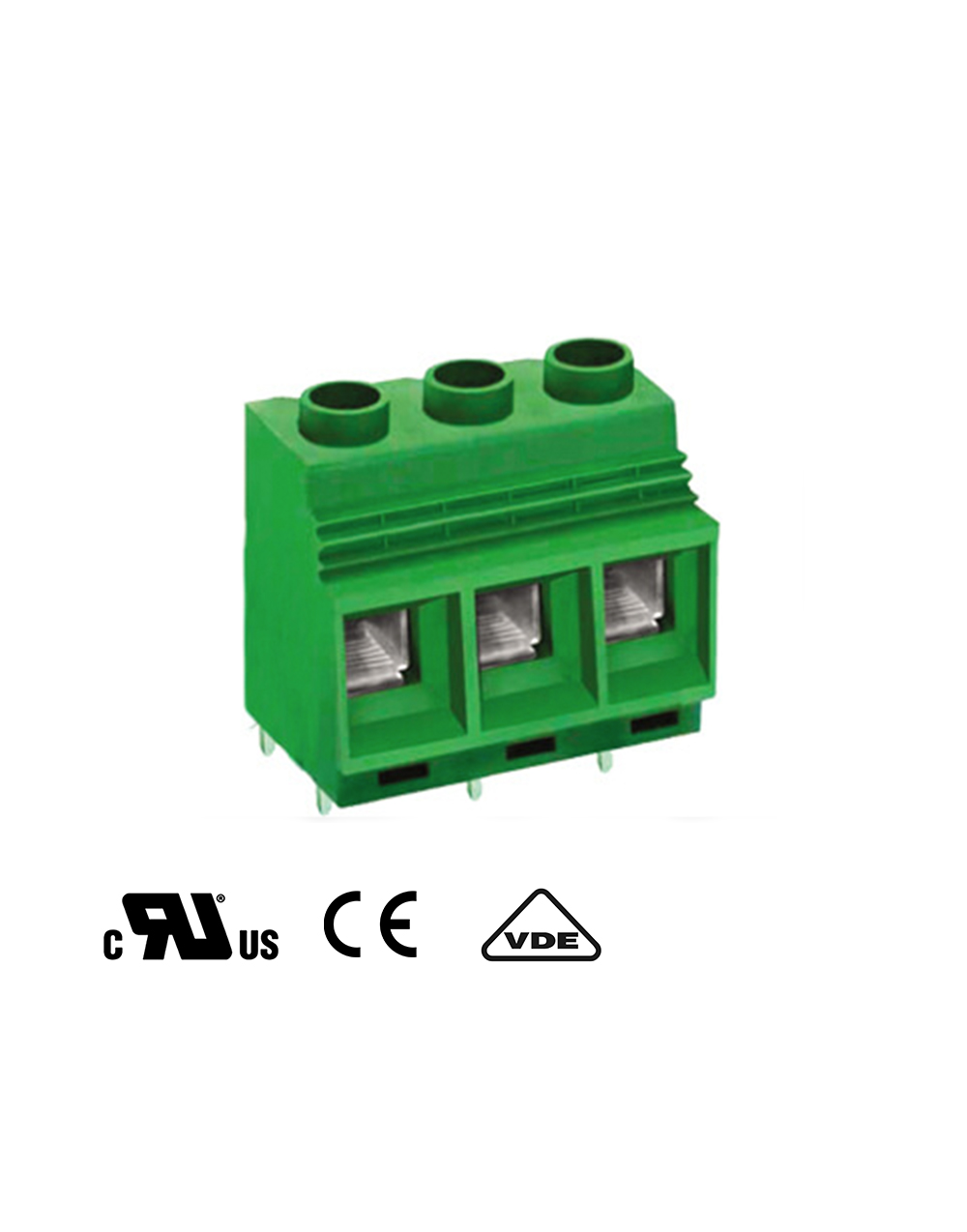

15mm pitch PCB Power Terminal block 2~8 Position UL ; CE Approved
Description
15mm pitch PCB Power Terminal block
Download: Spec Sheet
Specifications:
| Pitch | 15.00 mm |
| Poles | 2~8 Poles |
| Length A | A=15.00xP |
| Housing Material | PA 66 |
| Pin Dimensions | Steel, Zinc Plated |
| Contact | Copper, Tin Plated |
| Wire Size | 1 ~ 20 |
| Wire Strip Length | 18mm |
| PCB Hole Diameter | Ø2.0 |
| Tightening Torque, Max. | 30 Lb-in |
| Operating Temperature | -40°C to +105°C |
