Description

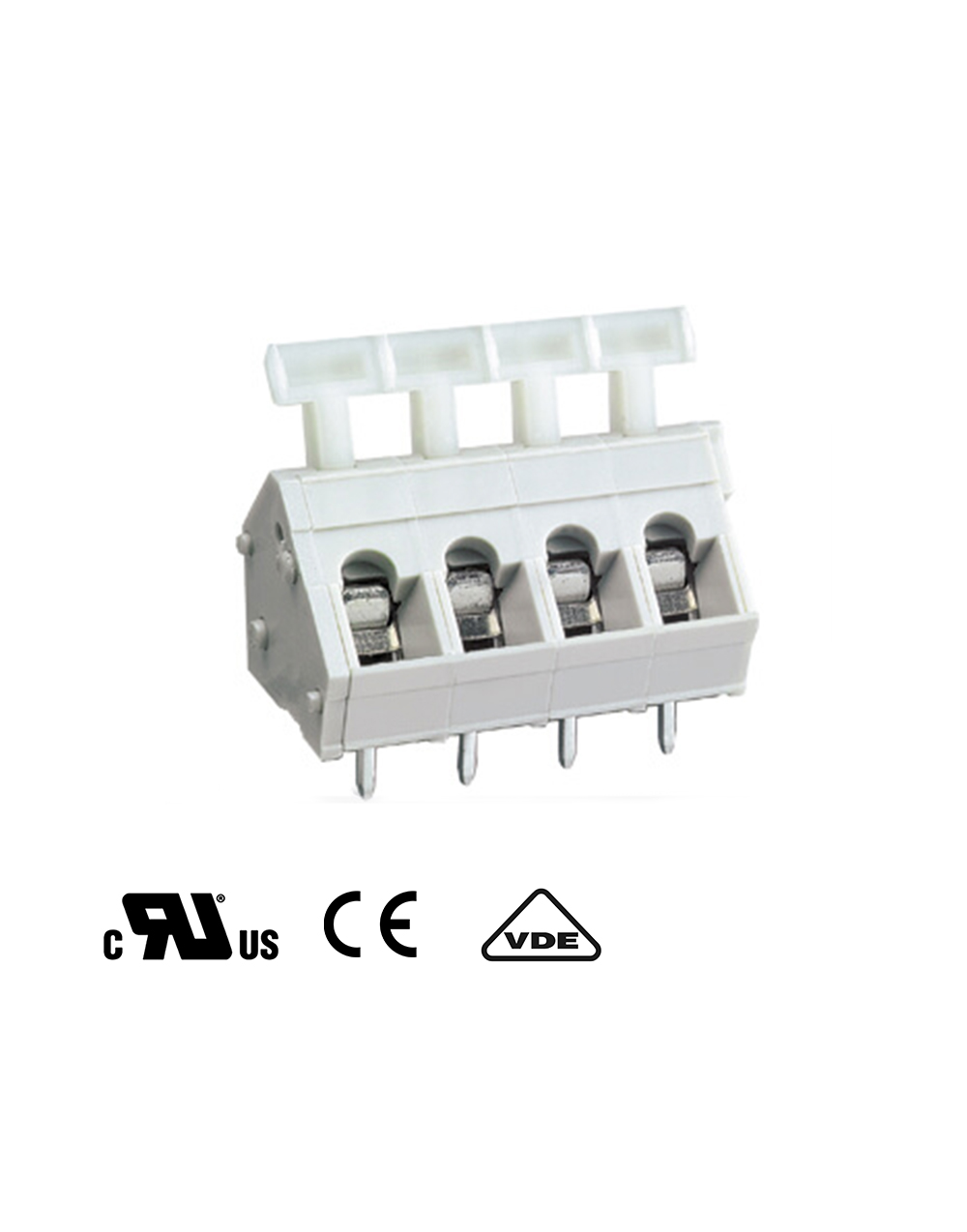

5.08mm Pitch PCB Push / Release Type Terminal block
Download: Spec Sheet
Specifications:
| Pitch | 5.08 mm |
| Poles | 2~24 Poles |
| Length A | A=5.08xP+1.00mm |
| Housing Material | PA 66 |
| Spring | Stainless, Tin Plated |
| Contact | Brass, Tin Plated |
| Wire Size | 14 ~ 28 |
| Wire Strip Length | 5-6mm |
| PCB Hole Diameter | Ø1.3 |
| Operating Temperature | -40°C to +105°C |
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1692 | 1692-MWX110-02 | 2
| 200
|
| 1693 | 1693-MWX110-03 | 3 | 200 |
| 1694 | 1694-MWX110-04 | 4 | 200 |
| 1695 | 1695-MWX110-05 | 5 | 200 |
| 1696 | 1696-MWX110-06 | 6 | 200 |
| 1697 | 1697-MWX110-07 | 7 | 200 |
| 1698 | 1698-MWX110-08 | 8 | 200 |
| 1699 | 1699-MWX110-09 | 9 | 200 |
| 1700 | 1700-MWX110-10 | 10 | 200 |
| 1701 | 1701-MWX110-11 | 11 | 100 |
| 1702 | 1702-MWX110-12 | 12 | 100 |
| 1703 | 1703-MWX110-13 | 13 | 100 |
| 1704 | 1704-MWX110-14 | 14 | 100 |
| 1705 | 1705-MWX110-15 | 15 | 100 |
| 1706 | 1706-MWX110-16 | 16 | 100 |
| 1707 | 1707-MWX110-17 | 17 | 100 |
| 1708 | 1708-MWX110-18 | 18 | 100 |
| 1709 | 1709-MWX110-19 | 19 | 100 |
| 1710 | 1710-MWX110-20 | 20 | 100 |
| 1711 | 1711-MWX110-21 | 21 | 100 |
| 1712 | 1712-MWX110-22 | 22 | 100 |
| 1713 | 1713-MWX110-23 | 23 | 100 |
| 1714 | 1714-MWX110-24
| 24 | 100 |
