NPT Thread Right Angled Nylon Cable Glands CE, ROHS Approved
Description

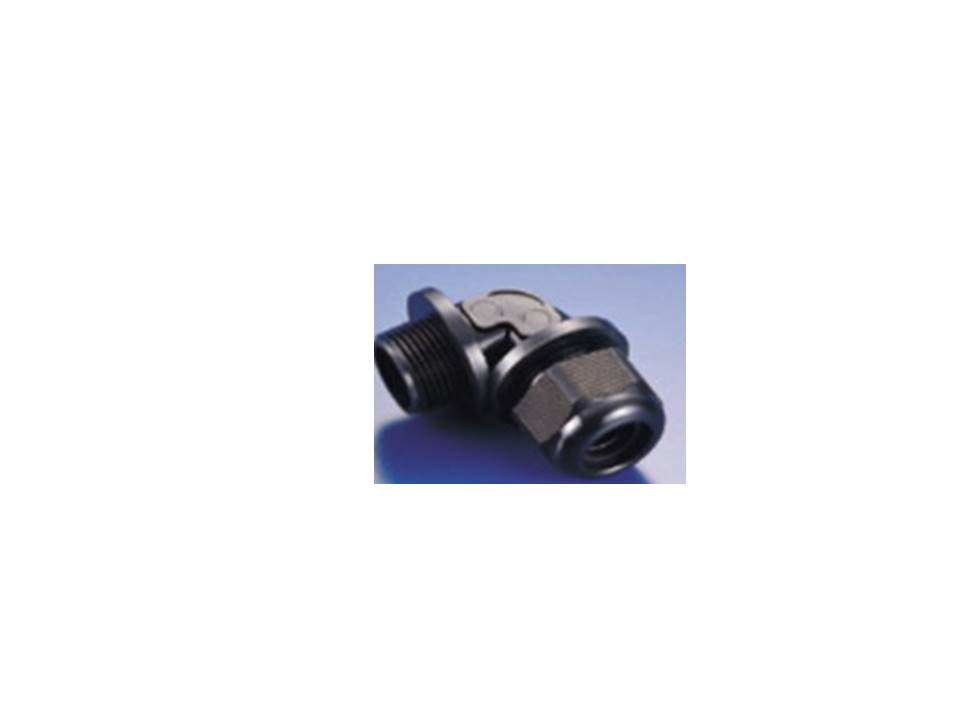

NPT Thread Right Angled Nylon Cable Glands
- Material: UL approved Nylon 66, 94V-2
- Color: Black, available in other colors.
- 90 design to protect cable from breakage.
| SKU# | PART# | Mounting Hole | Thread Outside Diameter | D2 | B1 | L1 | L2 | L3 | L | H | Cable Range | MOQ | |
| C1 | C2 | ||||||||||||
| 2069 | 2069-3/8″ NPT | 16.7~17.0 | 16.7 | 16.2 | 12 | 10.5 | 11.7 | 9.85 | 16.7 | 48.5 | 30 | 5 ~ 9 | 200 |
| 2070 | 2070-1/2″ NPT | 21.2~21.5 | 21.2 | 20.8 | 14 | 14 | 14.7 | 11.75 | 18.4 | 51.6 | 31.2 | 10 ~ 13 | 200 |
| 2071 | 2071-3/4″ NPT | 26.3~26.6 | 26.3 | 25.6 | 19.2 | 18.4 | 14.8 | 12.55 | 22.3 | 64.5 | 41.6 | 13 ~ 16 | 200 |
| 2072 | 2072-1 1/4″ NPT | 41.9~42.3 | 41.9 | 41.2 | 31.6 | 33 | 18.8 | 16.25 | 31 | 85 | 53 | 22 ~ 29 | 200 |
