One-Hole, Standard Barrel with Window Lug AWG: 10 ~ 3/O
Description

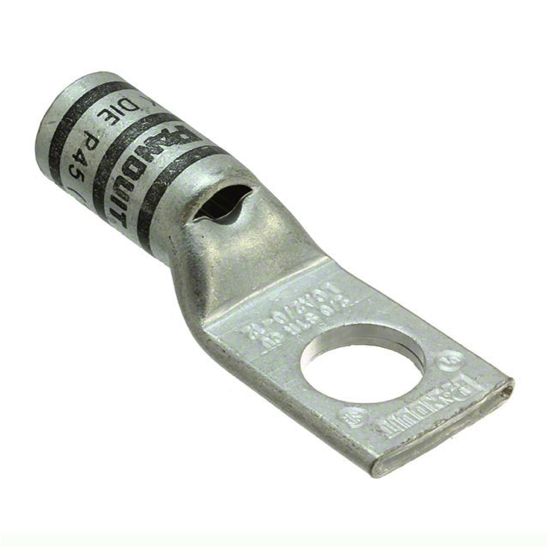

One-Hole, Standard Barrel with Window Lug
| 2189 | LCA10-10-L | #14-#10 AWG STR #12-#10 AWG SOL | #10 | 0.38 | 0.38 | 0.06 | 1.07 | N/A | 50 |
| 2190 | LCA10-14-L | 1/4 | 0.42 | 0.38 | 0.05 | 1.16 | N/A | 50 | |
| 2191 | LCA10-56-L | 5/16 | 0.54 | 0.38 | 0.04 | 1.28 | N/A | 50 | |
| 2192 | LCA10-38-L | 3/8 | 0.56 | 0.38 | 0.04 | 1.38 | N/A | 50 | |
| 2193 | LCA8-10-L | #8 AWG | #10 | 0.41 | 0.56 | 0.08 | 1.25 | RED | 50 |
| 2194 | LCA8-14-L | 1/4 | 0.48 | 0.56 | 0.07 | 1.34 | RED | 50 | |
| 2195 | LCA8-56-L | 5/16 | 0.56 | 0.56 | 0.05 | 1.46 | RED | 50 | |
| 2196 | LCA8-38-L | 3/8 | 0.60 | 0.56 | 0.05 | 1.56 | RED | 50 | |
| 2197 | LCA6-10-L | #6 AWG | #10 | 0.45 | 0.81 | 0.09 | 1.52 | BUE | 50 |
| 2198 | LCA6-14-L | 1/4 | 0.48 | 0.81 | 0.08 | 1.61 | BUE | 50 | |
| 2199 | LCA6-56-L | 5/16 | 0.56 | 0.81 | 0.07 | 1.73 | BUE | 50 | |
| 2200 | LCA6-38-L | 3/8 | 0.62 | 0.81 | 0.06 | 1.83 | BUE | 50 | |
| 2201 | LCA6-12L | 1/2 | 0.75 | 0.81 | 0.07 | 2.23 | BUE | 50 | |
| 2202 | LCA4-10-L | #4–#3 AWG STR# 2AWG SOL | #10 | 0.55 | 0.81 | 0.09 | 1.54 | GRAY | 50 |
| 2203 | LCA4-14-L | 1/4 | 0.55 | 0.81 | 0.09 | 1.63 | GRAY | 50 | |
| 2204 | LCA4-56-L | 5/16 | 0.55 | 0.81 | 0.09 | 1.75 | GRAY | 50 | |
| 2205 | LCA4-38-L | 3/8 | 0.62 | 0.81 | 0.07 | 1.85 | GRAY | 50 | |
| 2206 | LCA4-12-L | 1/2 | 0.75 | 0.81 | 0.07 | 2.23 | GRAY | 50 | |
| 2207 | LCA2-14-Q | #2 AWG | 1/4 | 0.60 | 0.88 | 0.10 | 1.77 | BROWN | 50 |
| 2208 | LCA2-56-Q | 5/16 | 0.66 | 0.88 | 0.10 | 1.90 | BROWN | 50 | |
| 2209 | LCA2-38-Q | 3/8 | 0.66 | 0.88 | 0.10 | 1.97 | BROWN | 50 | |
| 2210 | LCA2-12-Q | 1/2 | 0.75 | 0.89 | 0.08 | 2.21 | BROWN | 50 | |
| 2211 | LCA1-14-E | #1 AWG | 1/4 | 0.70 | 0.88 | 0.11 | 1.79 | GREEN | 50 |
| 2212 | LCA1-56-E | 5/16 | 0.70 | 0.88 | 0.11 | 1.92 | GREEN | 50 | |
| 2213 | LCA1-38-E | 3/8 | 0.70 | 0.88 | 0.11 | 1.99 | GREEN | 25 | |
| 2214 | LCA1-12-E | 1/2 | 0.75 | 0.88 | 0.09 | 2.23 | GREEN | 25 | |
| 2215 | LCA1/O-14-X | 1/O AWG | 1/4 | 0.76 | 0.94 | 0.12 | 1.95 | PINK | 25 |
| 2216 | LCA1/O-56-X | 5/16 | 0.76 | 0.94 | 0.12 | 2.00 | PINK | 25 | |
| 2217 | LCA1/O-38-X | 3/8 | 0.76 | 0.94 | 0.12 | 2.08 | PINK | 25 | |
| 2218 | LCA1/O-12-X | 1/2 | 0.80 | 0.94 | 0.12 | 2.13 | PINK | 25 | |
| 2219 | LCA2/O-14-X | 2/O AWG | 1/4 | 0.85 | 0.98 | 0.13 | 2.09 | BLACK | 20 |
| 2220 | LCA2/O-56-X | 5/16 | 0.85 | 0.98 | 0.13 | 2.09 | BLACK | 20 | |
| 2221 | LCA2/O-38-X | 3/8 | 0.85 | 0.98 | 0.13 | 2.15 | BLACK | 20 | |
| 2222 | LCA2/O-12-X | 1/2 | 0.85 | 0.98 | 0.13 | 2.40 | BLACK | 20 | |
| 2223 | LCA3/O-14-X | 3/O AWG | 1/4 | 0.96 | 1.14 | 0.13 | 2.28 | ORANGE | 20 |
| 2224 | LCA3/O-56-X | 5/16 | 0.96 | 1.14 | 0.13 | 2.28 | ORANGE | 20 | |
| 2225 | LCA3/O-38-X | 3/8 | 0.96 | 1.14 | 0.13 | 2.34 | ORANGE | 20 | |
| 2226 | LCA3/O-12-X | 1/2 | 0.96 | 1.14 | 0.13 | 2.59 | ORANGE | 20 |
