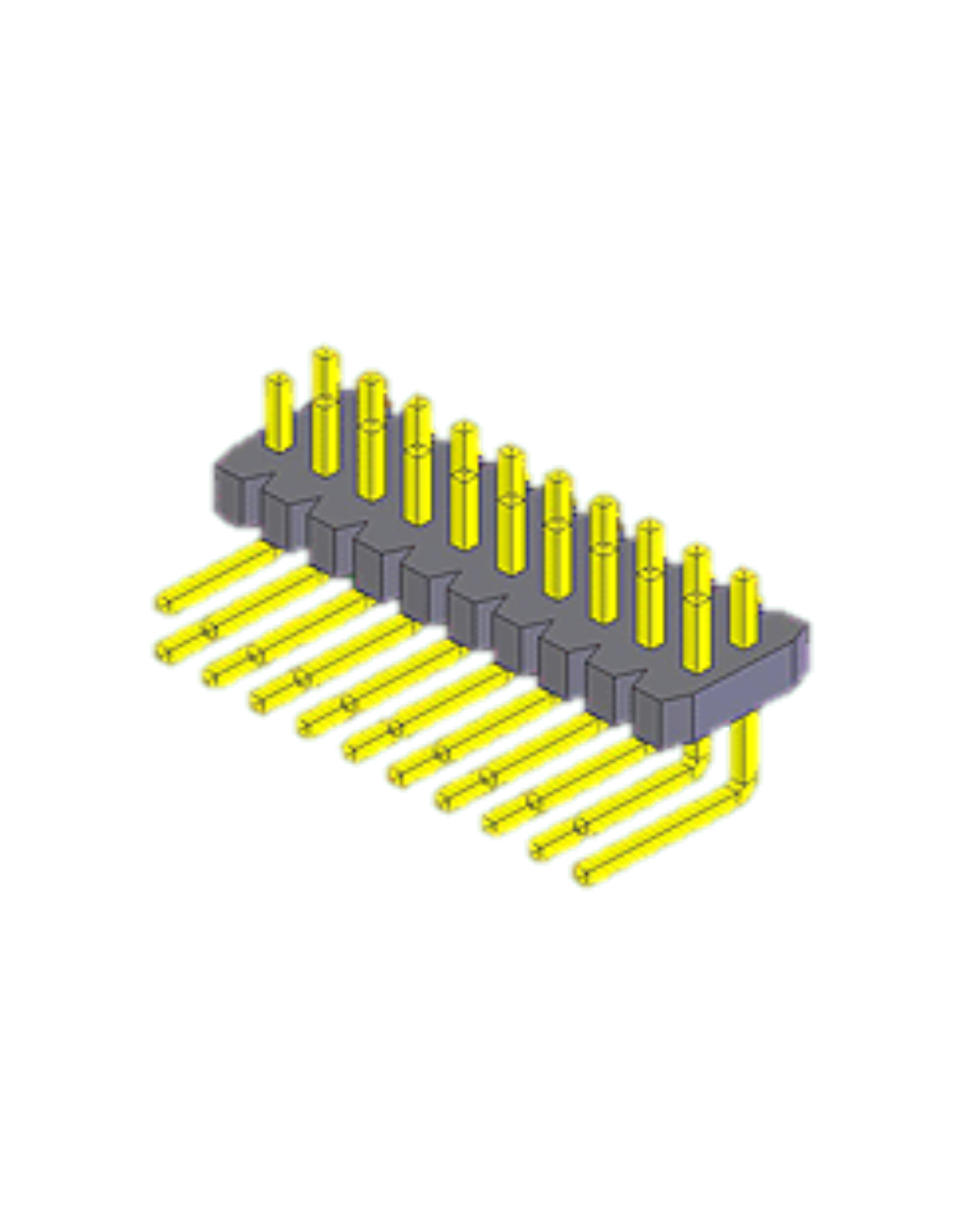

Pin Header1.0mm(0.039″)pitch

Description

Current rating	0.8 Amp
Insulator Resistance :	900 Megohms Min.
Dielectric Withstanding :	AC 500 V
Operating Temperature :	-40°C～ +105℃
Contact Material :	Bronze
Insulator Material :	High Temperature, Thermoplastic.UL 94V-0
Standard :	Nylon-6T
Finish :	Tin,Gold Plated
Standard :	Gold Flash all over

A/B	SKU#	PART#	# OF CONTACTS	MOQ
2.0/1.0	2407	2407-P802-XXX	4~100	1000
