Description

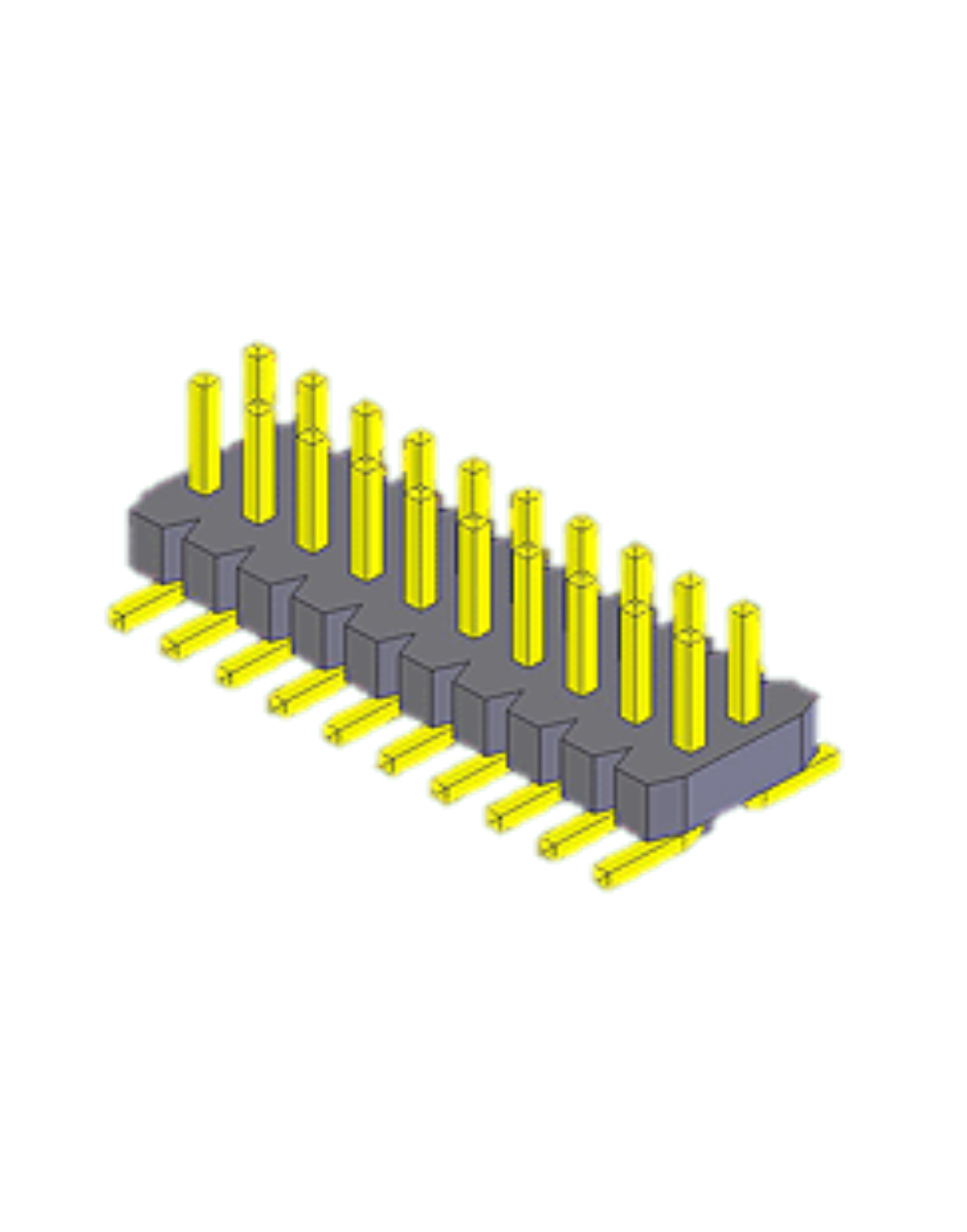

Pin Header1.0mm(0.039″)pitch
Current rating | 0.8 Amp |
Insulator Resistance | 900 Megohms Min. |
Dielectric Withstanding | AC 500 V |
Operating Temperature | -40°C~ +105℃ |
Max Processing Temp | 260℃ for 3~5 seconds |
Contact Material | Phosphor Bronze |
Insulator Material | High Temperature, Thermoplastic.UL 94V-0 |
Standard | Nylon-6T |
Finish | Tin,Gold Plated |
Standard | Gold Flash all over |
A/B | SKU# | PART# | # OF CONTACTS | MOQ |
1.9 | 2409 | 2409-P804-XXX | 4~100 | 1000 |
