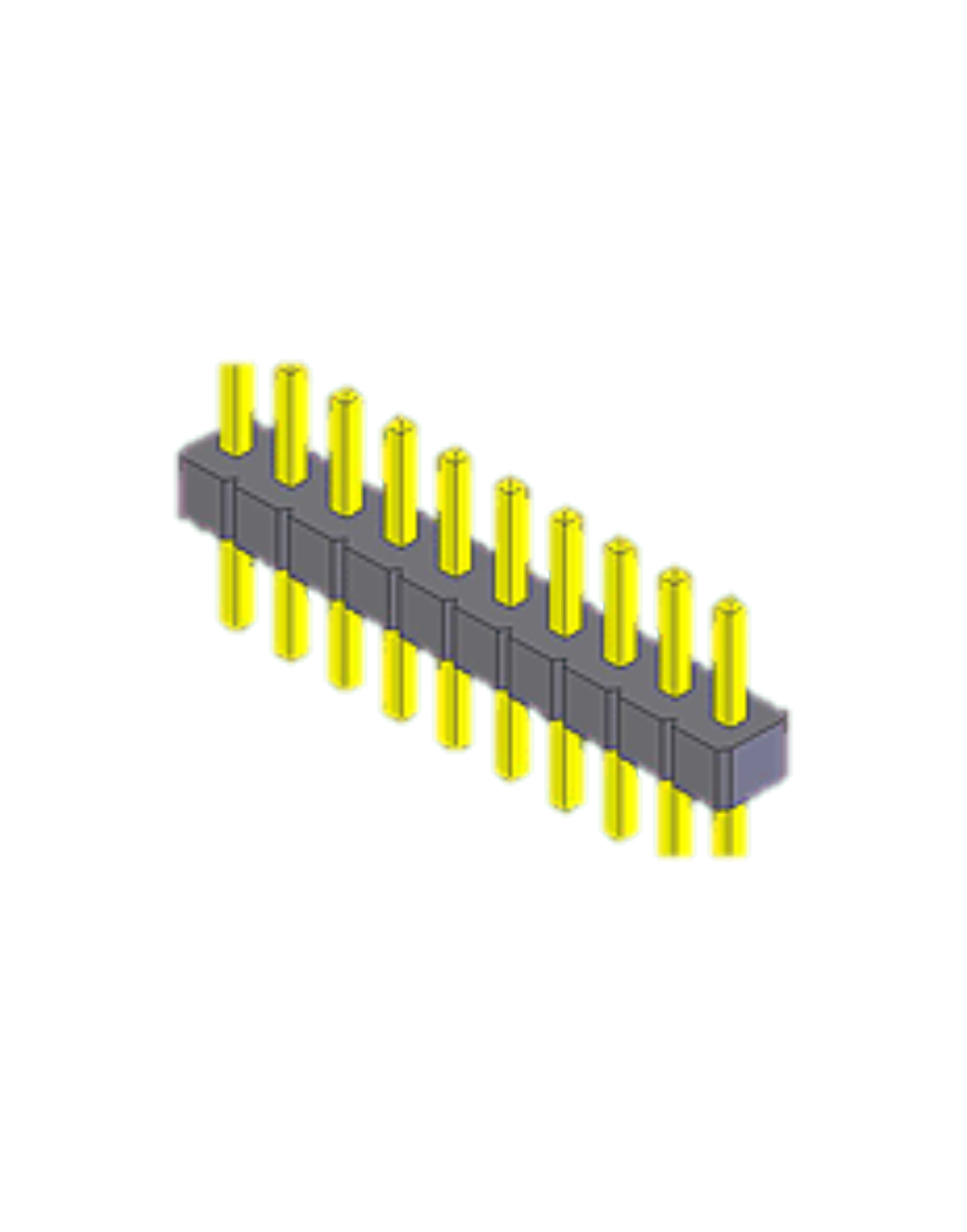

Pin Header 1.0mm(0.039″)pitch

Categories: Board to Board Connectors, Inter Connects

Description
Request a Quote

Description

P702-SGN-XXX/XXX-XX

Current rating	0.8 Amp
Insulator Resistance	900 Megohms Min.
Dielectric Withstanding	AC 500V
Operating Temperature	-40°C～ +105℃
Contact Material	Phosphor Bronze
Insulator Material	High Temperature, Thermoplastic.UL 94V-0
Standard	Nylon-6T
Finish	Tin,Gold Plated
Standard	Gold Flash all over

A/B	SKU#	PART#	# OF CONTACTS	MOQ
2.0/1.5	2402	2402-SGN-XXX	2~50	1000
