Description

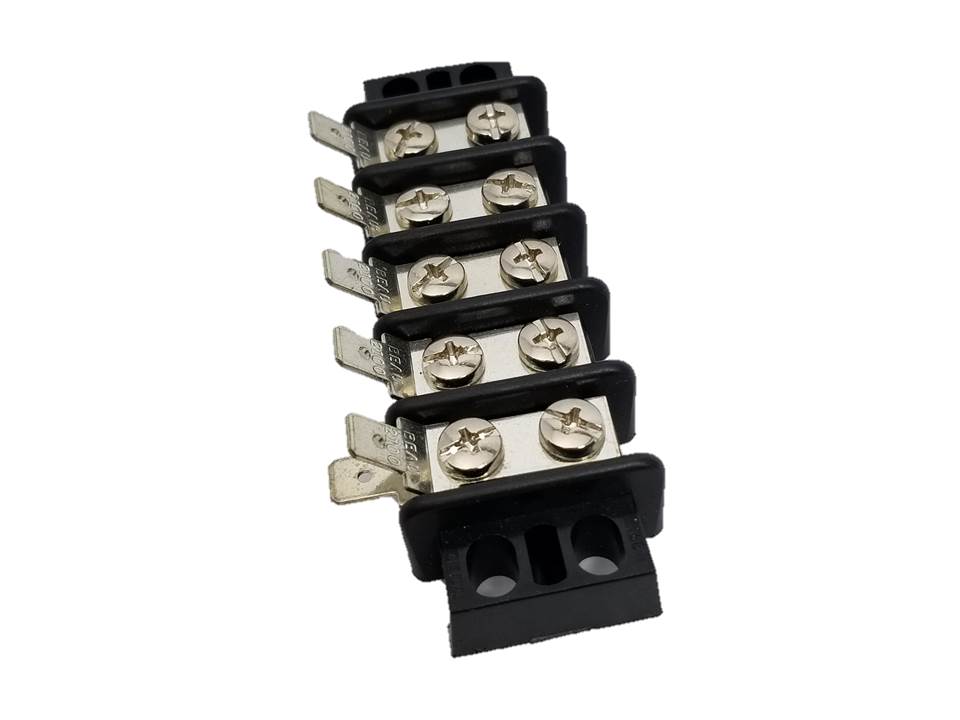

0.563″ Double Row Barrier terminal Block with Quick Connect
Download:
Specifications:
| |
| Poles | 2~18 |
| Pitch | 14.3mm |
| Terminal | Bras, Tin Plated, 0.8 t |
| Insulator Body | PBT (UL94V-0), Black |
| Screw | #8-32, steel, Ni plated |
| Cover | PC |
| Wire range | 10~22 |
Note: Screws are available in Brass. Screws are available with washers.
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1196 | 1196-T68-QC-02 | 2
| 200
|
| 1197 | 1197-T68-QC-03 | 3 | 200 |
| 1198 | 1198-T68-QC-04 | 4 | 200 |
| 1199 | 1199-T68-QC-05 | 5 | 200 |
| 1200 | 1200-T68-QC-06 | 6 | 200 |
| 1201 | 1201-T68-QC-07 | 7 | 200 |
| 1202 | 1202-T68-QC-08 | 8 | 200 |
| 1203 | 1203-T68-QC-09 | 9 | 200 |
| 1204 | 1204-T68-QC-10 | 10 | 200 |
| 1205 | 1205-T68-QC-11 | 11 | 200 |
| 1206 | 1206-T68-QC-12 | 12 | 200 |
| 1207 | 1207-T68-QC-13 | 13 | 200 |
| 1208 | 1208-T68-QC-14 | 14 | 200 |
| 1209 | 1209-T68-QC-15 | 15 | 200 |
| 1210 | 1210-T68-QC-16 | 16 | 100 |
| 1211 | 1211-T68-QC-17 | 17 | 100 |
| 1212 | 1212-T68-QC-18 | 18 | 100 |
| 1213 | 1213-T68-QC-19 | 19 | 100 |
| 1214 | 1214-T68-QC-20 | 20 | 100 |
| 1215 | 1215-T68-QC-21 | 21 | 100 |
| 1216 | 1216-T68-QC-22 | 22 | 100 |
| 1217 | 1217-T68-QC-23 | 23 | 100 |
| 1218 | 1218-T68-QC-24 | 24 | 100 |
| 1219 | 1219-T68-QC-25 | 25 | 100 |
| 1220 | 1220-T68-QC-26 | 26 | 100 |
