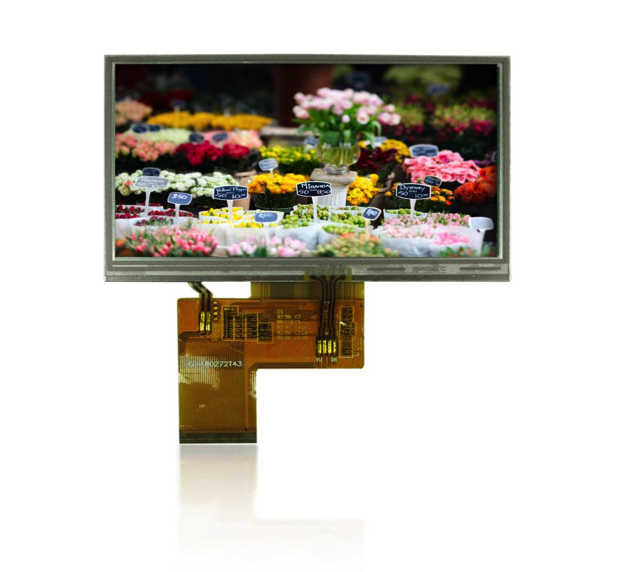

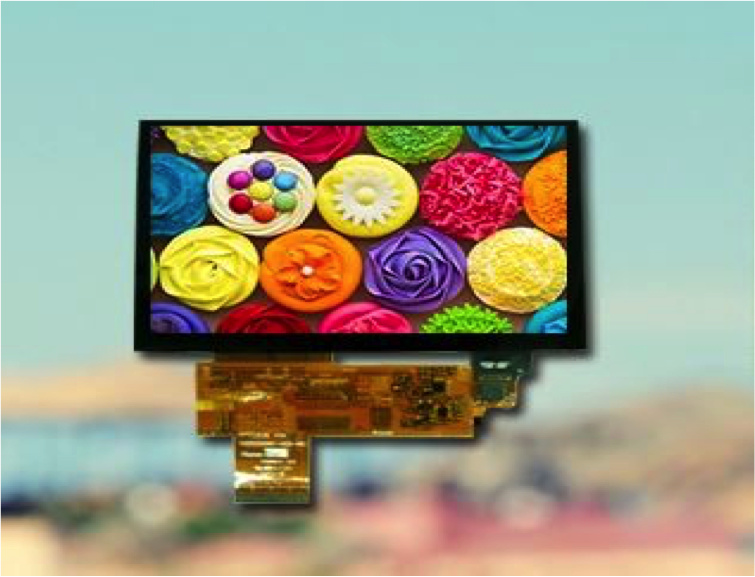

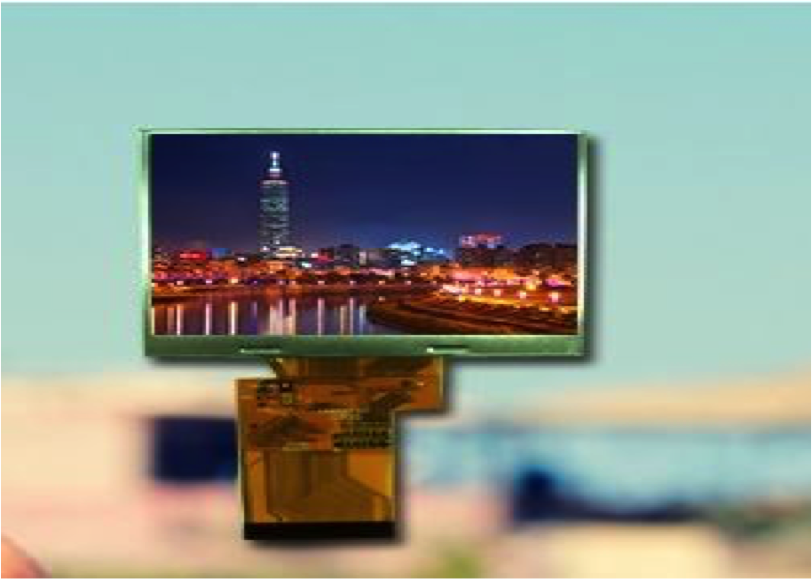

TFT – LCD Display
Description
| MODEL # | Outline Dimension W*H*T (mm) | Brightness | Interface | LED Voltage |
| AM-128160-018F | 33.83*43.42*2.60 | 250nits | i80/SPI/40PIN | 3.0V/80mA |
| AM-128160-018F | 33.83*43.42*2.60 | 250nits | i80/SPI/40PIN | 3.0V/80mA |
| AM-176220-020H | 37.63*51.25*2.45 | 220nits | i80/36PIN | 3.2V/45mA |
| AM-240240-013A | 26.85*29.55*1.90 | 300nits | i80/4-wire SPI/24PIN | 3.2V/40mA |
| AM-240240-015A | 31.50*35.00*1.85 | 400nits | 3-wire SPI/24PIN | 3.1V/45mA |
| AM-240320-022H | 41.04*56.45*2.85 | 200nits | i80/41PIN | 3.2V/45mA |
| AM-240320-024D | 42.72*60.26*2.40 | 250nits | i80/40PIN | 3.2V/60mA |
| AM-240320-024DT | 42.72*60.26*3.50 | 200nits | i80/40PIN | 3.2V/60mA |
| AM-240320-024F | 42.72*60.26*2.30 | 300nits | 3-wire SPI/RGB/40PIN | 3.2V/80mA |
| AM-240320-024F-A | 42.72*60.26*2.30 | 300nits | 3-wire SPI/RGB/40PIN | 12.8V/20mA |
| AM-240320-024H | 42.00*59.00*2.25 | 350nits | 4-wire SPI/14PIN | 12.8V/20mA |
| AM-240320-028C-A | 69.20*50.00*2.45 | 250nits | MCU/37PIN | 3.2V/80mA |
| AM-240320-028D | 50.00*69.20*2.40 | 210nits | i80/30PIN | 3.2V/60mA |
| AM-240320-028E | 50.00*69.20*2.40 | 200nits | i80/30PIN | 3.2V/60mA |
| AM-240320-028E-350 | 50.00*69.20*2.40 | 350nits | i80/30PIN | 3.2V/60mA |
| AM-240320-028G | 50.00*69.20*2.50 | 230nits | i80/SPI/RGB/50PIN | 3.2V/60mA |
| AM-240320-028G-X | 50.00*69.20*2.45 | 300nits | i80/SPI/RGB/50PIN | 3.2V/60mA |
| AM-240320-028GT | 50.00*69.20*3.60 | 185nits | i80/SPI/RGB/50PIN | 3.2V/60mA |
| AM-240320-028H | 50.00*69.20*2.50 | 200nits | i80/SPI/RGB/50PIN | 3.2V/60mA |
| AM-240320-028HT | 50.00*69.20*3.60 | 170nits | i80/SPI/RGB/50PIN | 3.2V/60mA |
| AM-240320-028J-OA | 50.00*69.20*2.40 | 210nits | i80/40PIN | 3.2V/60mA |
| AM-240320-028P | 49.00*69.00*2.06 | 350nits | i80/35PIN | 9.6V/40mA |
| AM-240320-028QP | 50.00*69.20*6.46 | 220nits | i80/SPI/40PIN | 3.2V/80mA |
| AM-240320-032E | 53.64*77.50*2.30 | 250nits | i80/3-wire SPI/RGB/45PIN | 3.2V/120mA |
| AM-240320-032G | 56.64*79.30*2.45 | 350nits | i80/SPI/40PIN | 3.2V/100mA |
| AM-240320-032GT | 56.64*79.30*2.45 | 280nits | i80/SPI/40PIN | 3.2V/100mA |
| AM-240320-035D | 61.00*85.00*2.93 | 150nits | 3-wire SPI + RGB | 19.2V/20mA |
| AM-320240-020A-1 | 46.20*41.20*2.55 | 230nits | 3-wire SPI/RGB/40PIN | 3.3V/40mA |
| AM-320240-020D-1 | 46.20*41.20*2.70 | 500nits | 8-bit serial RGB/39PIN | 3.1V/80mA |
| AM-320240-023A | 51.00*45.80*2.35 | 230nits | i80/36PIN | 3.2V/60mA |
| AM-320240-035A | 76.90*63.90*3.26 | 550nits | RGB/CCIR656/CCIR601/54PIN | 19.2V/20mA |
| AM-320240-035AT | 76.90*63.90*4.36 | 450nits | RGB/CCIR656/CCIR601/54PIN | 19.2V/20mA |
| AM-320240-035AP | 77.44*63.94*5.01 | 400nits | RGB/CCIR656/CCIR601/54PIN | 19.2V/20mA |
| AM-320240-035AP-800 | 77.44*63.94*5.01 | 800nits | RGB/CCIR656/CCIR601/54PIN | 19.2V/20mA |
| AM-320240-035B | 76.90*63.90*3.26 | 250nits | RGB/CCIR656/CCIR601/54PIN | 19.2V/20mA |
| AM-320240-035BT | 76.90*63.90*4.36 | 200nits | RGB/CCIR656/CCIR601/54PIN | 19.2V/20mA |
| AM-320240-035C | 76.90*63.90*3.30 | 550nits | RGB/54PIN | 19.2V/20mA |
| AM-320240-035CT | 76.90*63.90*4.35 | 450nits | RGB/54PIN | 19.2V/20mA |
| AM-320240-035D | 76.90*63.90*3.30 | 250nits | RGB/54PIN | 19.2V/20mA |
| AM-320240-035DT | 76.90*63.90*4.35 | 200nits | RGB/54PIN | 19.2V/20mA |
| AM-320240-035F | 76.90*63.90*3.26 | 250nits | RGB/54PIN | 19.2V/20mA |
| AM-320240-035FT | 76.90*63.90*4.36 | 200nits | RGB/54PIN | 19.2V/20mA |
