Description

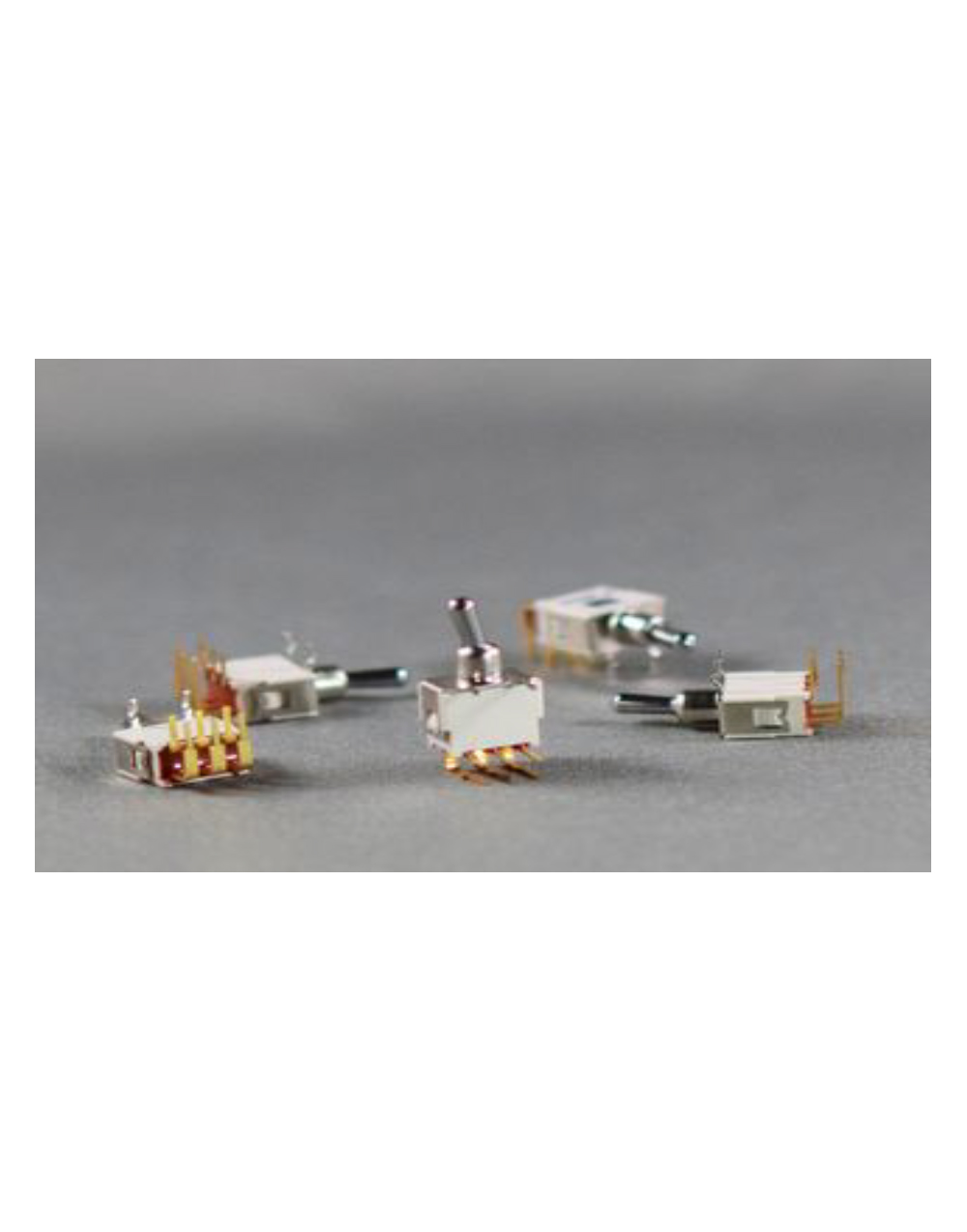

Sealed Subminiature Toggle Switches.
Tiny toggle switches with gold-plated contact.
Sealed by the internal O-ring and epoxy sealed at the terminals
Single pole or Double pole available.
Straight terminals or right angled terminals for PCB mounting.
Specifications:
Max 0.4 VA max @ 48 V AC
Min. 1μA /20V AC or DC
- Contact Resistance: 50 mΩ max. initial @2-4VDC,100 mA
Insulation Resistance: 500 MΩ min.
Dielectric Strength: 500 V RMS @ sea level
Electrical Life: 50,000 cycles
Operating Temperature: -30°C to 85°C
Actuator: Copper alloy, chrome plated
Busing&Housing: Stainless Steel
Base: glass filled nylon 4/6, UL94V-0
Contact: phosphor bronze gold-plated over nickel plated
Terminals: phosphor bronze tin plated over nickel plated
