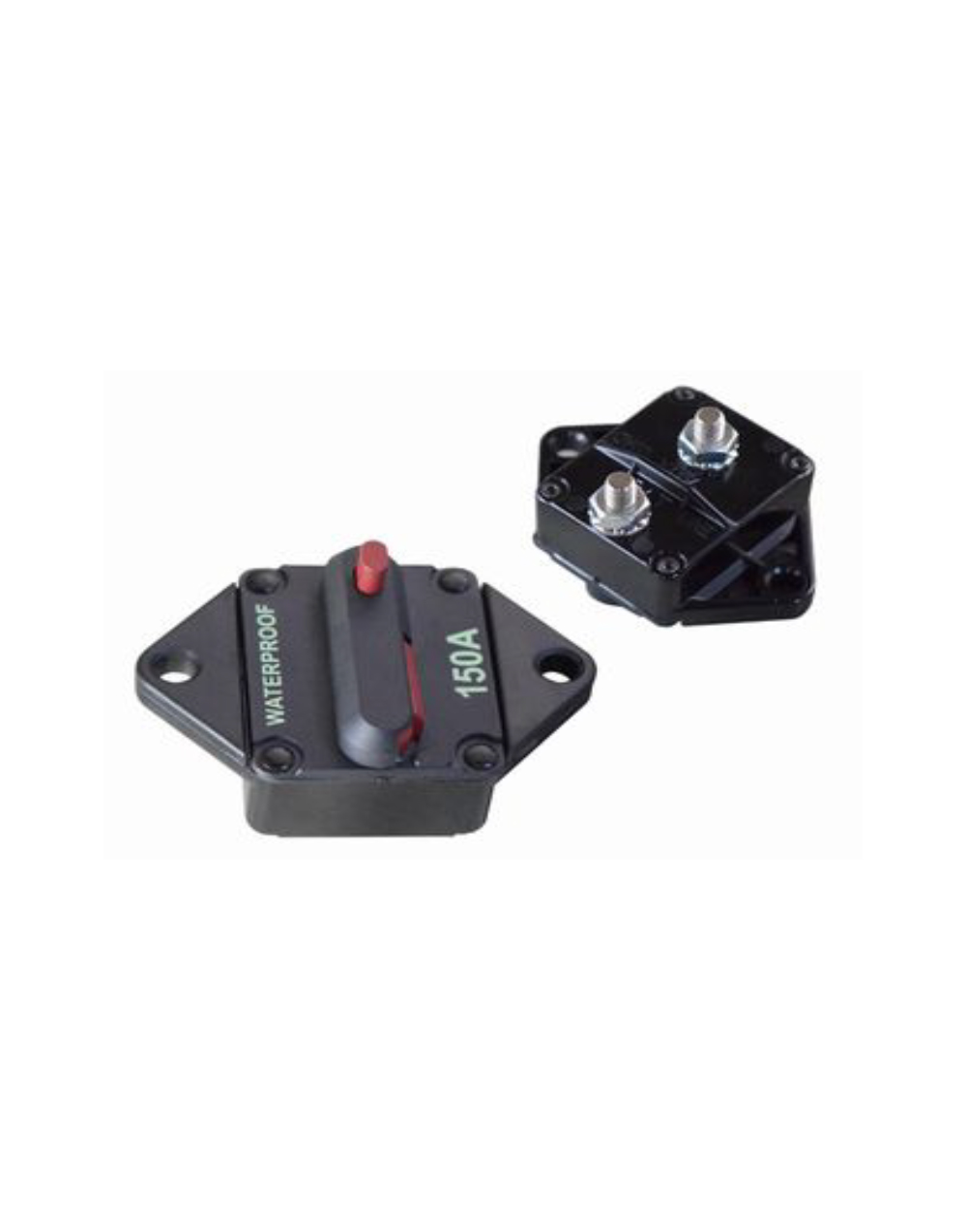

50A-200A, Panel Mount
High-Amp Circuit Breaker, 50A-150A, 42VDC MAX.
Meets IP67 Protection Level
Description
50A-200A, Panel Mount
High-Amp Circuit Breaker, 50A-150A, 42VDC MAX., Meets IP67 Protection Level
Download: Spec Sheet
Features:
- Manual Reset or Automatic Reset
- Meet IP67 Protection Level
- Panel mounting
- Housing: Thermoset plastic, UL 94-V0
- Applications: Trucks, Buses, RV, Marine, battery charge and DC audio systems…etc.
Specifications:
| Rating | 50A~150A, 42VDC Max. |
| Interrupt Rating: | 3000A at 30VDC |
| Operating Temperature | -32~+92 degree C |
| Storage Temperature | -34~+149 degree C |
| Testing | SAE J1625, SAE J1171 (Ignition Protected) |
