Description

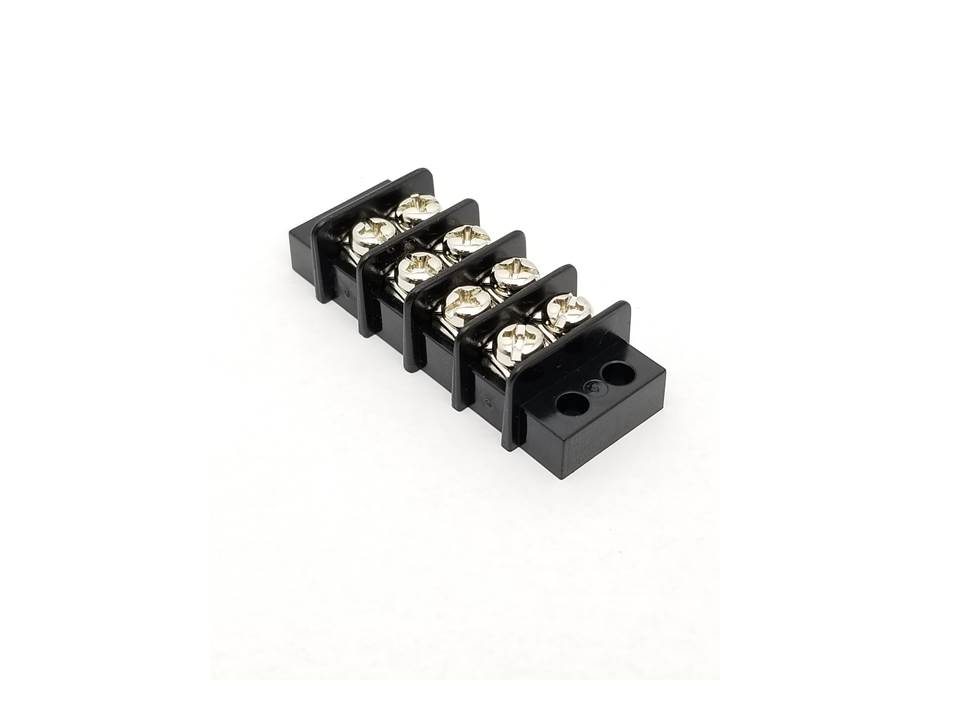

0.374″ Double Row Barrier terminal Block
Download: 9.5 mm SPEC SHEET
Specifications:
| |
| Poles | 2~30 |
| Pitch | 9.50mm |
| Terminal | Bras, Tin Plated, 0.8 t |
| Insulator Body | PC (UL94V-0), Black |
| Screw | #6-32, steel, Ni plated |
| Wire range | 12~22 |
Note: Screws are available in Brass. Screws are available with washers.
| | | | |
| SKU# | P/N | POLE | MOQ |
| 1001 | 1001-T64-T02 | 2 | 200 |
| 1002 | 1002-T64-T03 | 3 | 200 |
| 1003 | 1003-T64-T04 | 4 | 200 |
| 1004 | 1004-T64-T05 | 5 | 200 |
| 1005 | 1005-T64-T06 | 6 | 200 |
| 1006 | 1006-T64-T07 | 7 | 200 |
| 1007 | 1007-T64-T08 | 8 | 200 |
| 1008 | 1008-T64-T09 | 9 | 200 |
| 1009 | 1009-T64-T10 | 10 | 200 |
| 1010 | 1010-T64-T11 | 11 | 200 |
| 1011 | 1011-T64-T12 | 12 | 200 |
| 1012 | 1012-T64-T13 | 13 | 200 |
| 1013 | 1013-T64-T14 | 14 | 200 |
| 1014 | 1014-T64-T15 | 15 | 200 |
| 1015 | 1015-T64-T16 | 16 | 200 |
| 1016 | 1016-T64-T17 | 17 | 200 |
| 1017 | 1017-T64-T18 | 18 | 200 |
| 1018 | 1018-T64-T19 | 19 | 200 |
| 1019 | 1019-T64-T20 | 20 | 200 |
| 1020 | 1020-T64-T21 | 21 | 200 |
| 1021 | 1021-T64-T22 | 22 | 200 |
| 1022 | 1022-T64-T23 | 23 | 200 |
| 1023 | 1023-T64-T24 | 24 | 200 |
| 1024 | 1024-T64-T25 | 25 | 200 |
| 1025 | 1025-T64-T26 | 26 | 200 |
| 1026 | 1026-T64-T27 | 27 | 200 |
| 1027 | 1027-T64-T28 | 28 | 200 |
| 1028 | 1028-T64-T29 | 29 | 200 |
| 1029 | 1029-T64-T30 | 30 | 200 |
