0.374″ (9.5 mm ) Single Row Barrier terminal Block Feed Through with Mounting holes 2 ~ 30 Position UL ; CE Approved
Categories: Electro mechanical, Single Row Barrier Type, Terminal Blocks
Description

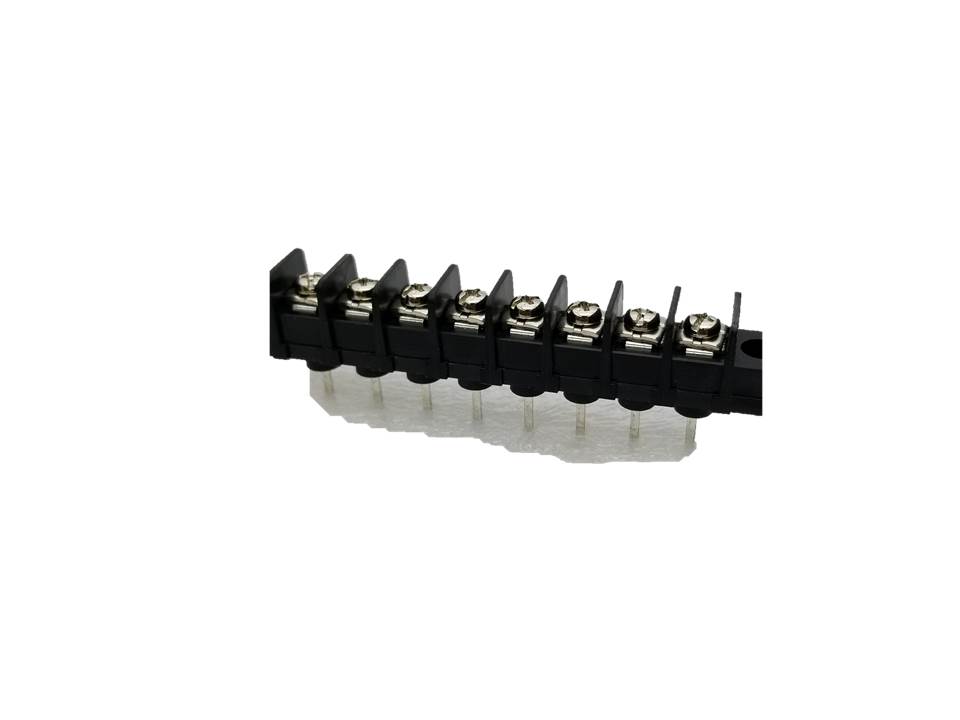

0.374″ Single Row Barrier terminal Block with Mounting holes
Download: Spec Sheet
Specifications:
Poles | 2~30 |
Pitch | 9.5mm |
Terminal | Bras, Tin Plated, 0.8 t |
Insulator Body | PBT (UL94V-0), Black |
Screw | M3.5, steel, Ni plated |
Cover | PC |
PCB Hole | Ø1.8~Ø2.0 |
Wire range | 14~22 |
Note: Screws are available in Brass. Screws are available with washers.
SKU# | P/N | POLE | MOQ |
1080 | 1080-T34LM14-02 | 2 | 200 |
1081 | 1081-T34LM14-03 | 3 | 200 |
1082 | 1082-T34LM14-04 | 4 | 200 |
1083 | 1083-T34LM14-05 | 5 | 200 |
1084 | 1084-T34LM14-06 | 6 | 200 |
1085 | 1085-T34LM14-07 | 7 | 200 |
1086 | 1086-T34LM14-08 | 8 | 200 |
1087 | 1087-T34LM14-09 | 9 | 200 |
1088 | 1088-T34LM14-10 | 10 | 200 |
1088 | 1089-T34LM14-11 | 11 | 200 |
1090 | 1090-T34LM14-12 | 12 | 200 |
1091 | 1091-T34LM14-13 | 13 | 200 |
1092 | 1092-T34LM14-14 | 14 | 200 |
1093 | 1093-T34LM14-15 | 15 | 200 |
1094 | 1094-T34LM14-16 | 16 | 100 |
1095 | 1095-T34LM14-17 | 17 | 100 |
1096 | 1096-T34LM14-18 | 18 | 100 |
1097 | 1097-T34LM14-19 | 19 | 100 |
1098 | 1098-T34LM14-20 | 20 | 100 |
1099 | 1099-T34LM14-21 | 21 | 100 |
1100 | 1100-T34LM14-22 | 22 | 100 |
1101 | 1101-T34LM14-23 | 23 | 100 |
1102 | 1102-T34LM14-24 | 24 | 100 |
1103 | 1103-T34LM14-25 | 25 | 100 |
1104 | 1104-T34LM14-26 | 26 | 100 |
1105 | 1105-T34LM14-27 | 27 | 100 |
1106 | 1106-T34LM14-28 | 28 | 100 |
