Sealed Toggle Switch, meeting IP68 standard, up to 78A inrush Contact Rating: 12 A, 125VAC/250VAC(UL,CUL) 1HP, 250VAC; 1/2 HP, 125VAC; 5A 125VL (Tungsten) (UL,CUL)
Description

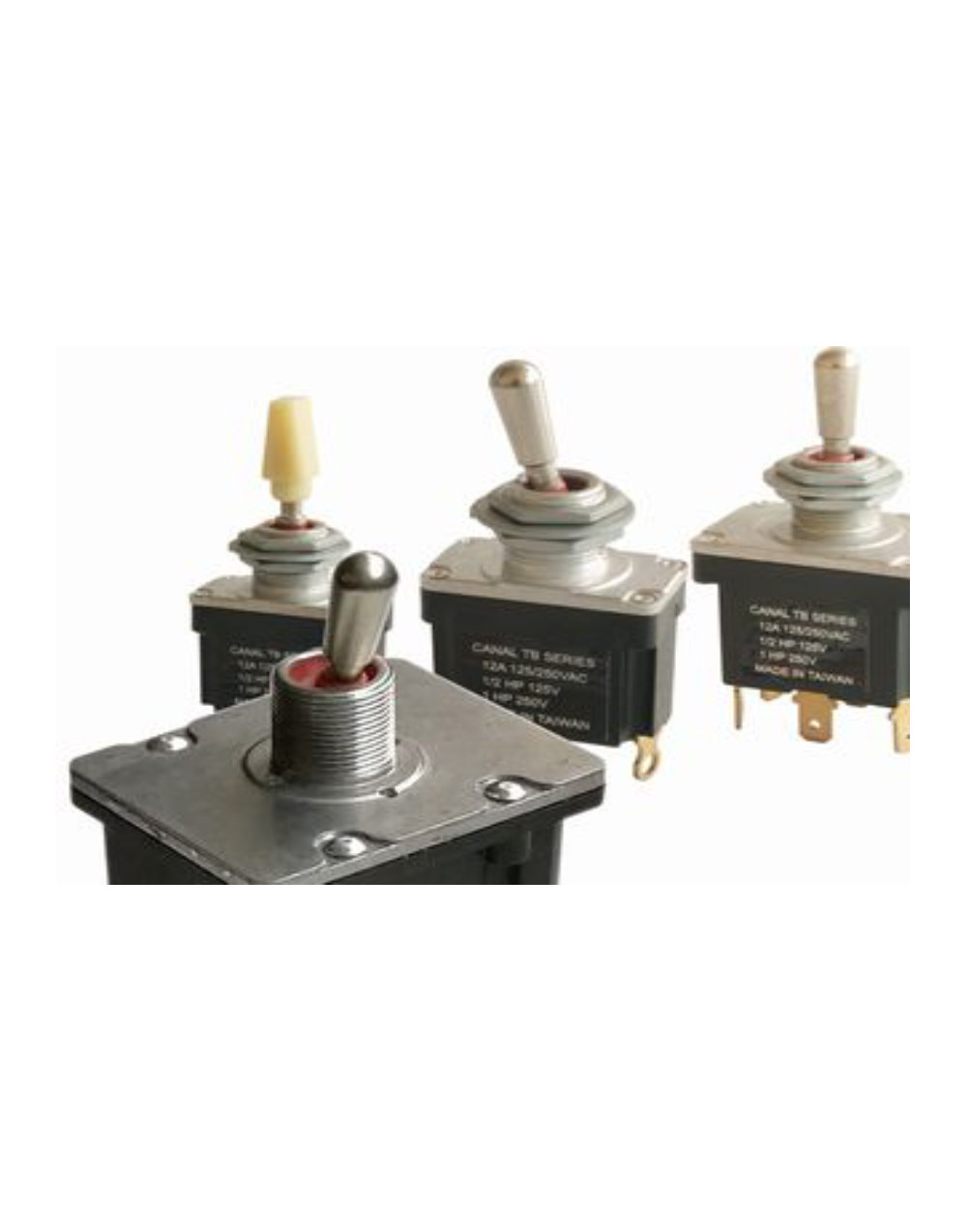

Sealed Toggle Switch, meeting IP68 standard, up to 78A inrush
TB is a sealed toggle switch, waterproof, conforming to IP68 level protection, up to 78A inrush current.
It can built with a plastic or brass bat type actuator; 1, 2 & 4 pole, 2 or 3 positions, maintained and momentary action.
Perfectly suitable for control panels in rugged environment.
Specifications:
- Contact Rating: 12 A, 125VAC/250VAC(UL,CUL)
- 1HP, 250VAC; 1/2 HP, 125VAC; 5A 125VL (Tungsten) (UL,CUL)
- Contact resistance : 50m Ω max
- Dielectric Strength: 1500 Volts RMS
- Insulation Resistance: 50 Megohms
- Life: 50,000 cycles
Download: Spec Sheet
