12mm Pitch Euro terminal block with wire protector 30 Aps, 300 V ; 2~ 12 Position UL;CE; VDE Approved

Categories: Double Row Euro Type Nylon, Electro mechanical, Terminal Blocks

Description
Request a Quote

Description

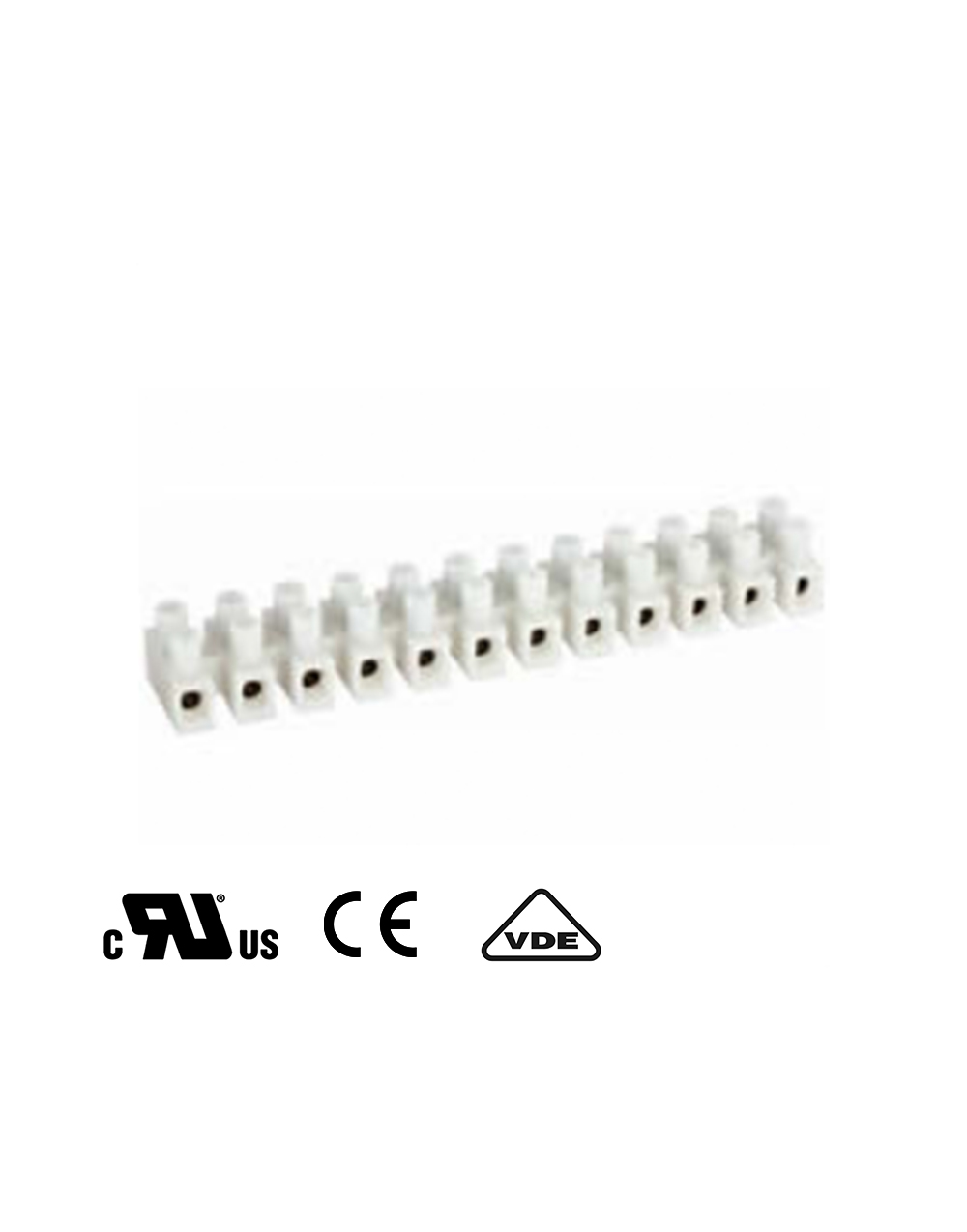

12mm Pitch Euro terminal block with wire protector

Download: Spec Sheet

Specifications:

Pitch		12.00mm
Approval
Rated Voltage	300V	750V	750V
Rated Current	30A	41A
Wire range	22-10AWG	1.5-6.0mm²	6.00mm²
Screw		M3.5


SKU#	P/N	POLE	MOQ
1268	1268-TLB-300W-02	2	200
1269	1269-TLB-300W-03	3	200
1270	1270-TLB-300W-04	4	200
1271	1271-TLB-300W-05	5	200
1272	1272-TLB-300W-06	6	200
1273	1273-TLB-300W-07	7	200
1274	1274-TLB-300W-08	8	200
1275	1275-TLB-300W-09	9	200
1276	1276-TLB-300W-10	10	200
1277	1277-TLB-300W-11	11	200
1278	1278-TLB-300W-12	12	200
