1. Introduction

Switches are fundamental electromechanical components that control the flow of electrical current by making or breaking circuit connections. They provide user interfaces for controlling equipment, machinery, and electronic devices. Among the most commonly used types are tactile switches, vandal-proof switches, rocker switches, and toggle switches, each designed for specific applications and operating environments.

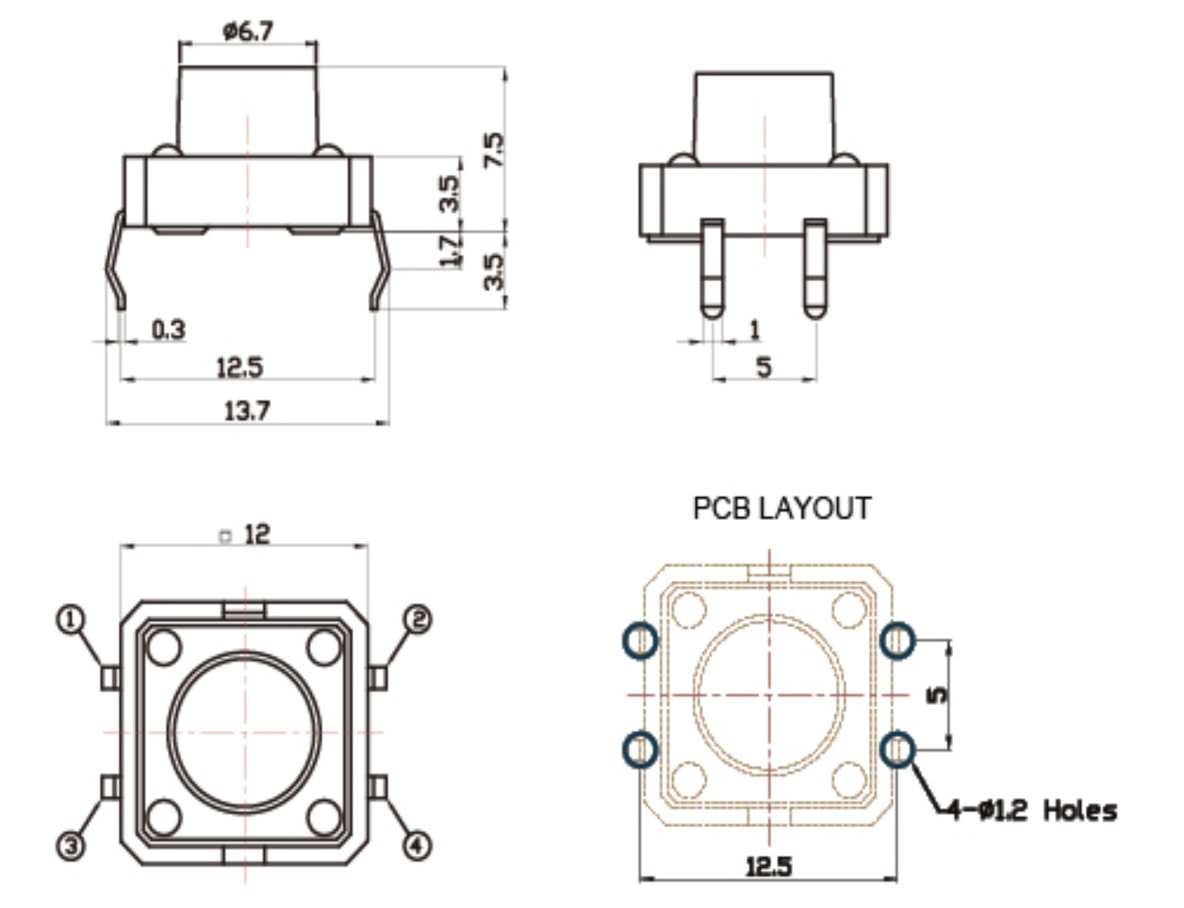

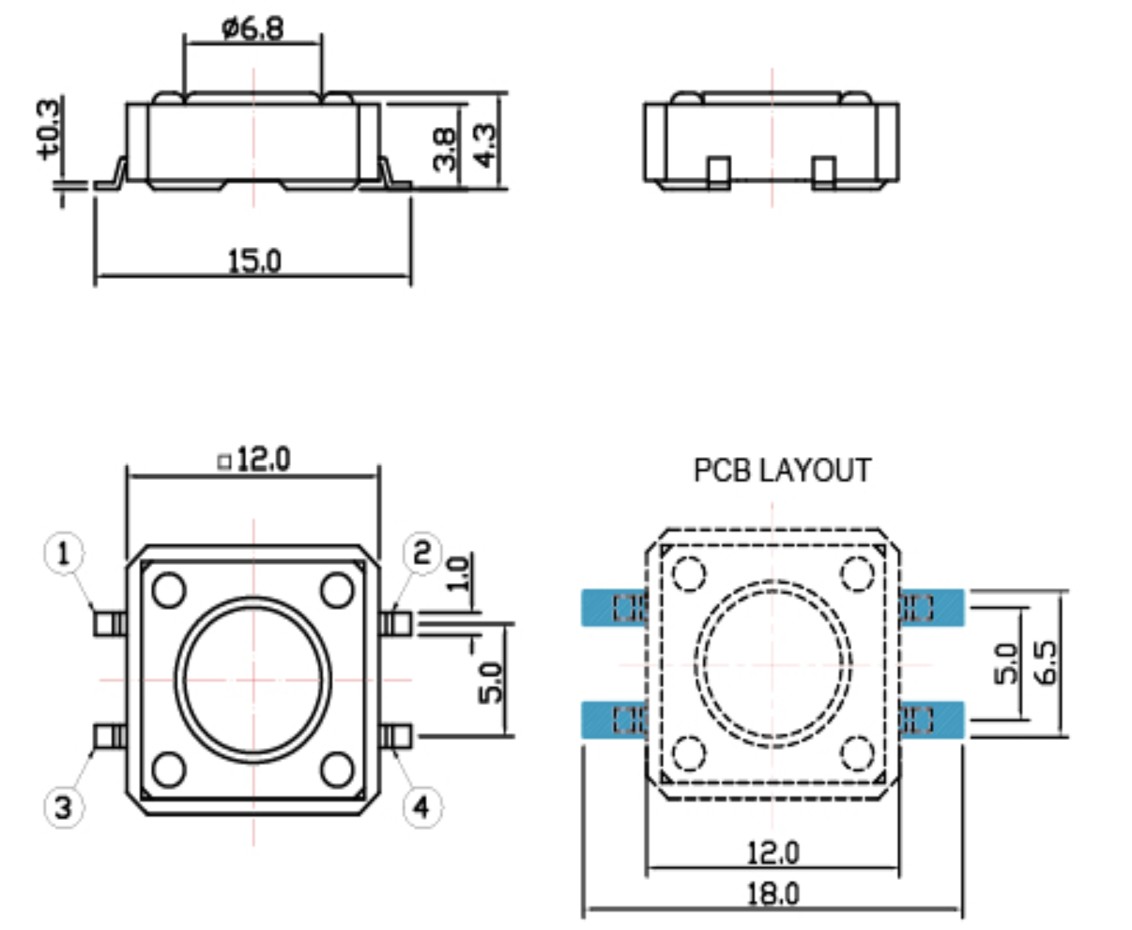

2. Tactile Switches

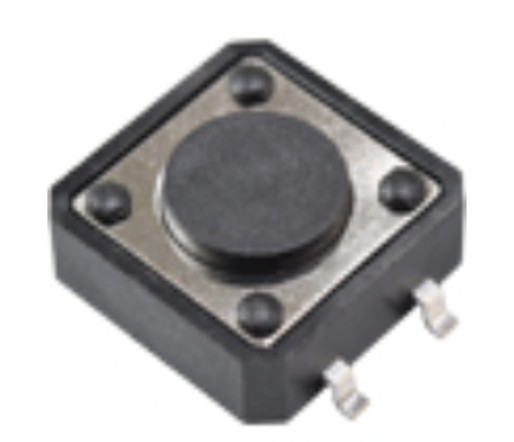

A tactile switch is a momentary contact switch that provides tactile feedback when pressed. It gives the user a physical confirmation that the switch has been activated through a distinct “click” or snap sensation.

Working Principle:

• When pressed, a dome-shaped contact deflects and makes electrical contact.
• The dome snaps back to its original position when pressure is released.
• This creates the distinctive tactile feedback and audible click.

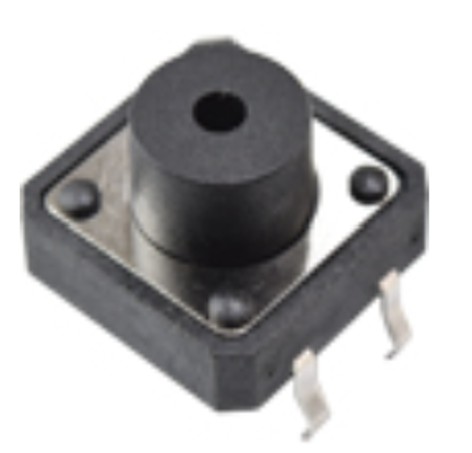

Types of Tactile Switches:

• Surface Mount (SMD): For PCB mounting in compact applications.
• Through-Hole: Traditional mounting with leads through PCB holes.
• Panel Mount: Designed for mounting through equipment panels.
• Right-Angle: Side-actuated for space-constrained designs.

Applications:

• Computer keyboards and keypads.
• Remote controls and handheld devices.
• Gaming controllers and consumer electronics.
• Industrial control panels and instrumentation.

Advantages:

• Positive tactile feedback confirms operation.
• Compact size suitable for miniaturized equipment.
• Low operating force and high reliability.
• Available in various actuation forces and travel distances.

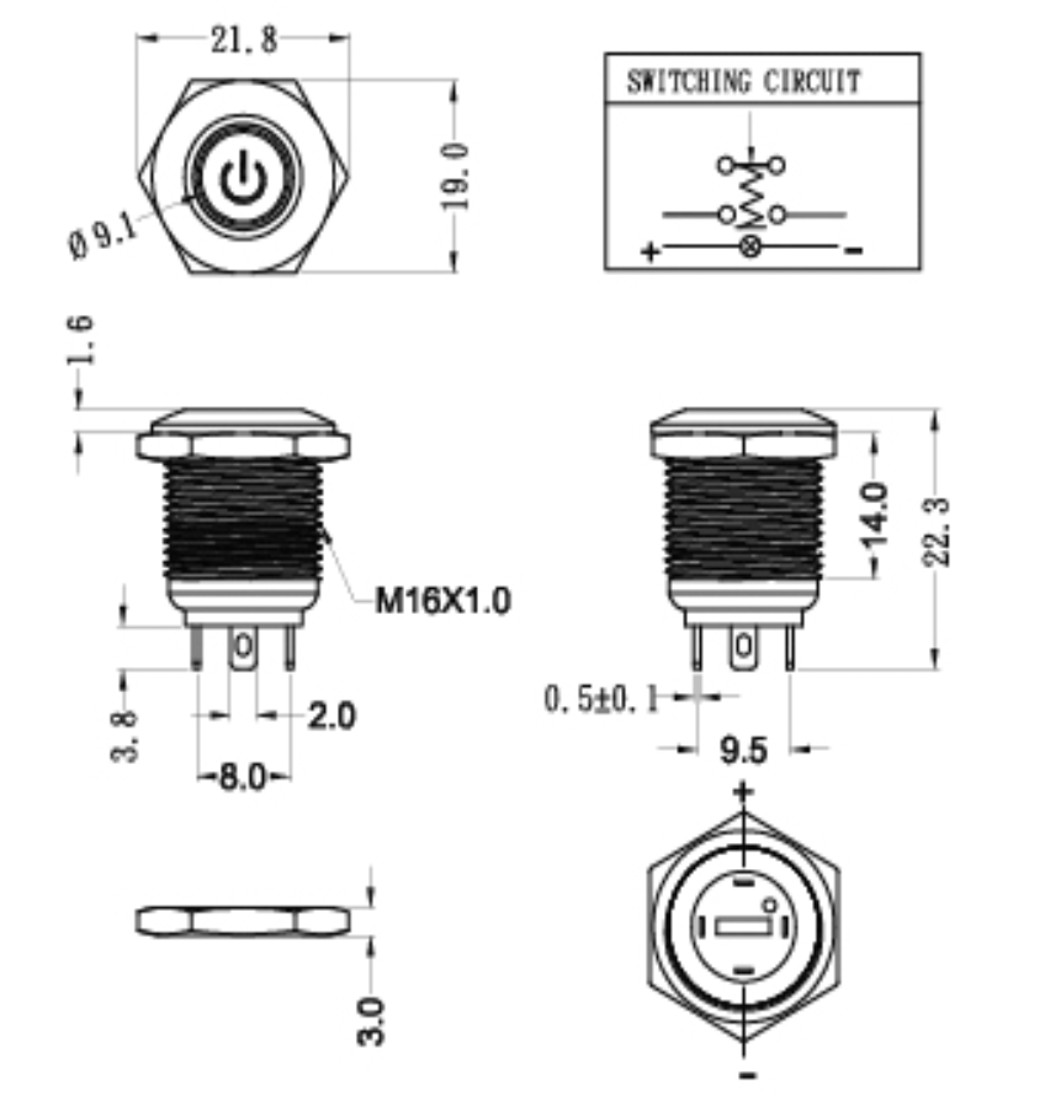

3. Vandal-Proof Switches

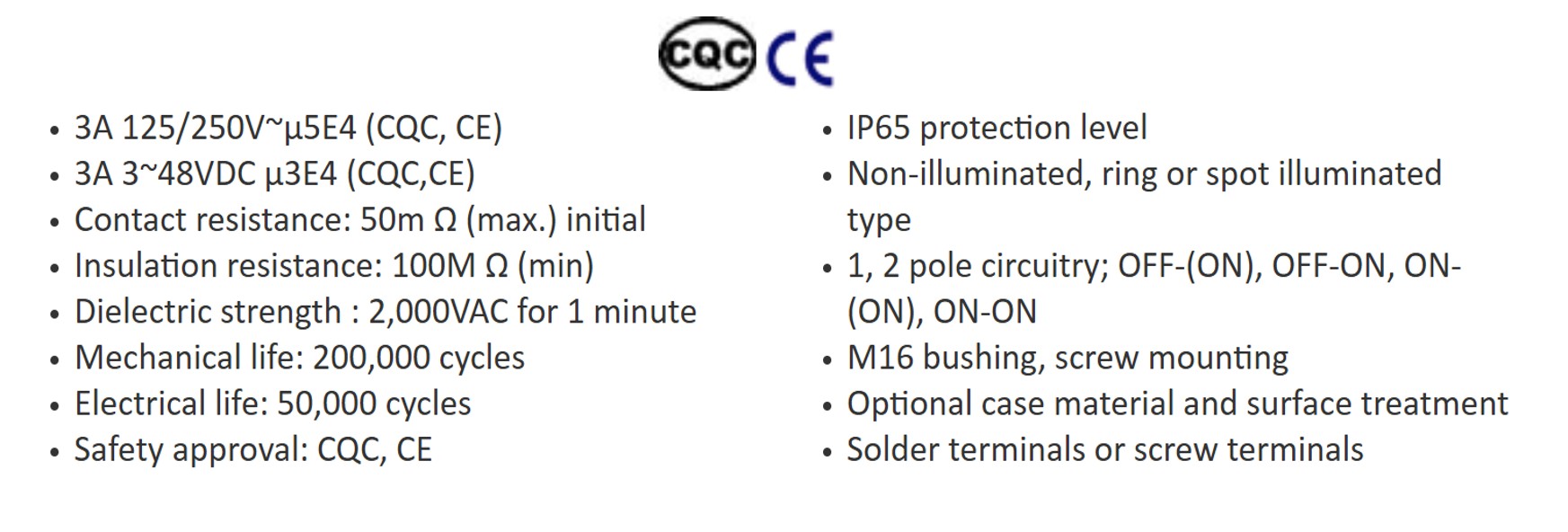

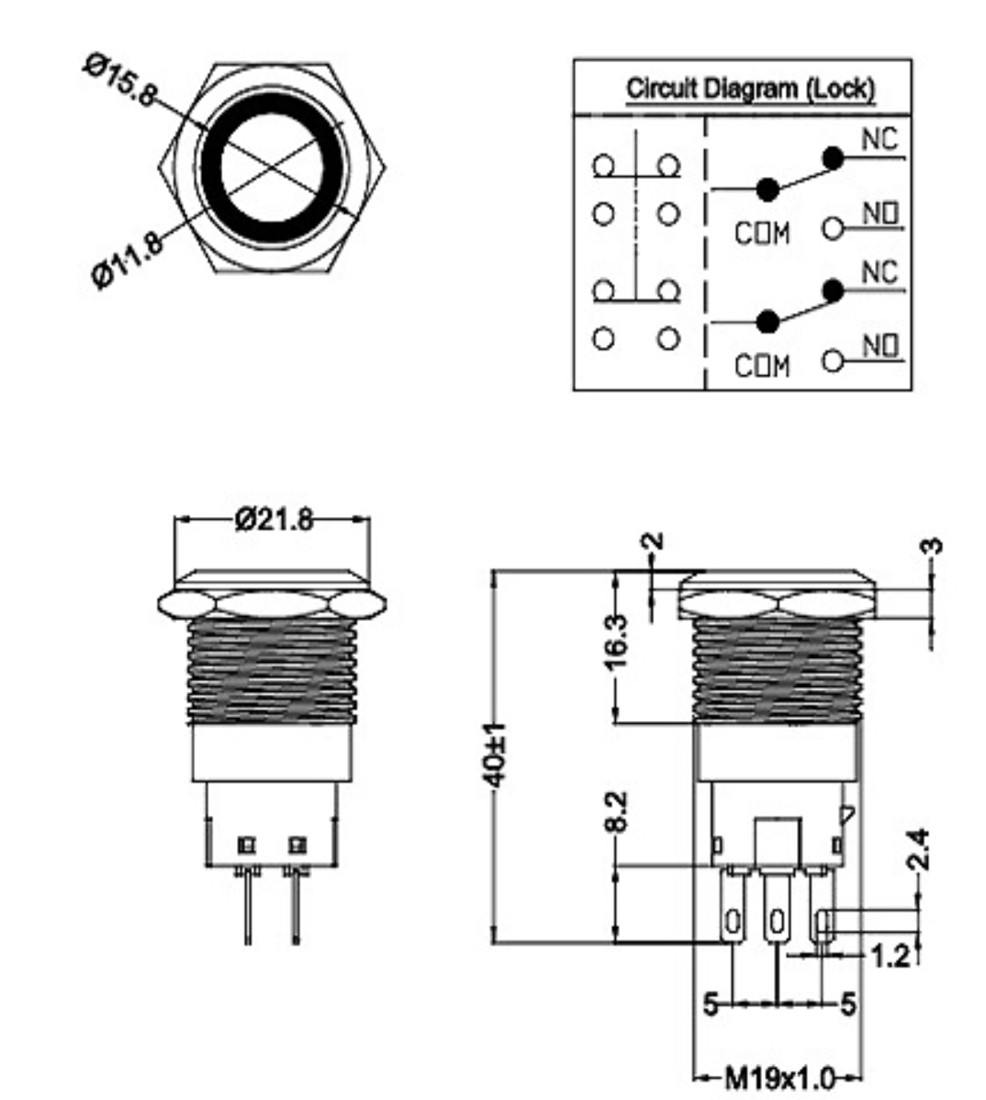

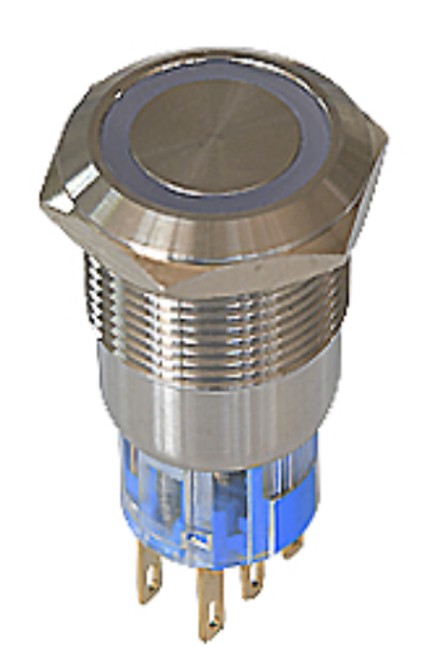

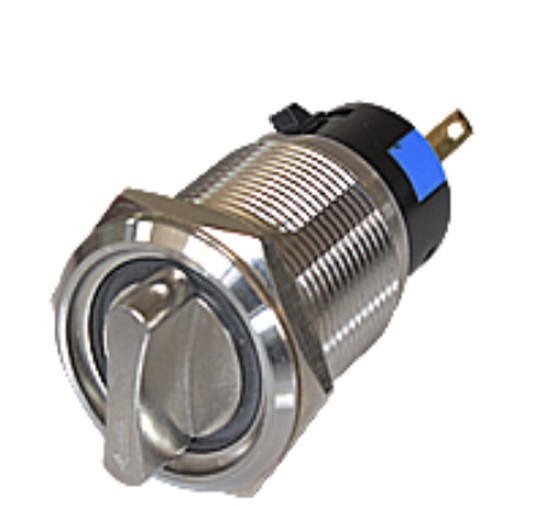

A vandal-proof switch is a rugged switching device designed to withstand harsh environments, tampering, and deliberate abuse. These switches feature reinforced construction and are typically used in public or industrial applications where durability is critical.

Construction:

• Stainless steel or anodized aluminum actuator and housing.
• Sealed design with high IP ratings (IP65, IP67).
• Reinforced mounting and anti-rotation features.

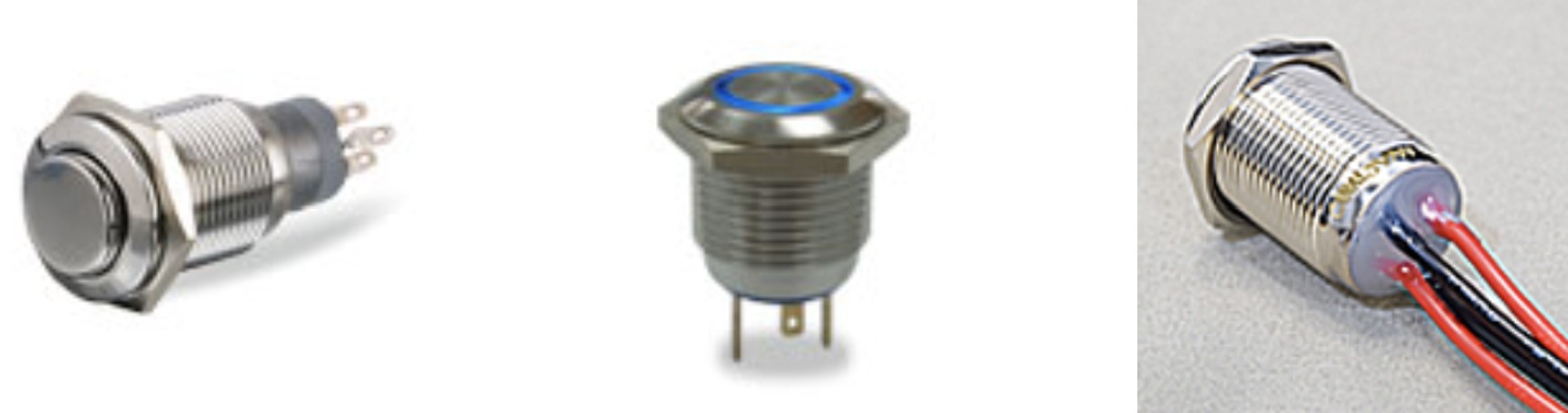

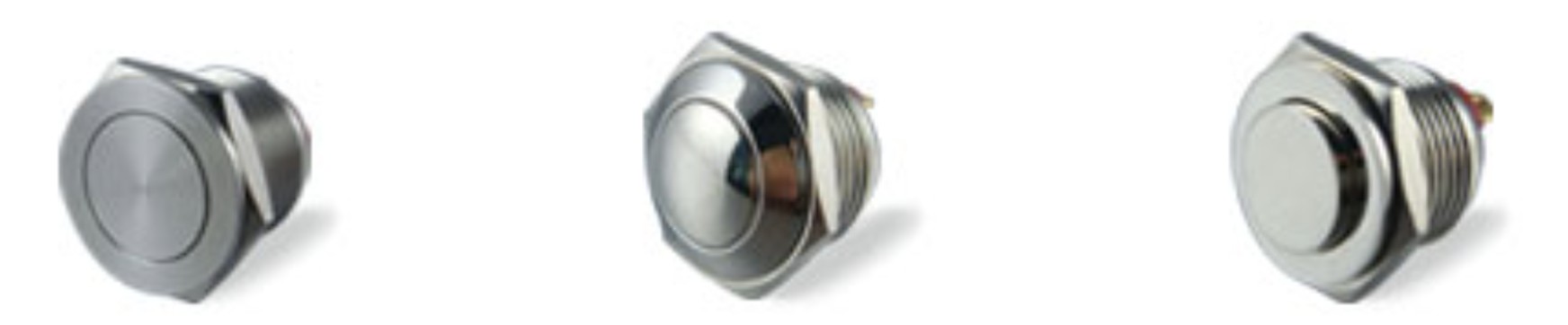

Types of Vandal-Proof Switches:

• Momentary: Spring-return action, contacts closed only while pressed.
• Latching: Maintains state until pressed again (on/off operation).

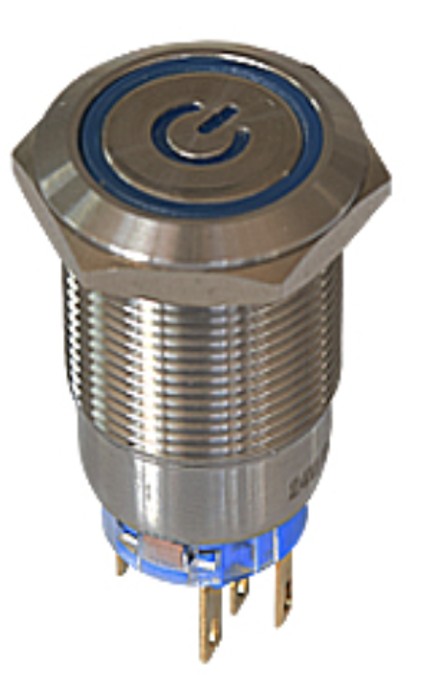

• Illuminated: Built-in LED indicators for status display.
• Capacitive: Touch-sensitive with no moving parts.

Applications:

• Public access terminals and kiosks.
• Industrial machinery and harsh environment controls.
• Outdoor equipment and marine applications.
• Security systems and access control panels.

Advantages:

• Extremely durable and tamper-resistant construction.
• Weatherproof and chemical resistant.
• Professional appearance with customizable illumination.
• Long operational life even under abuse.

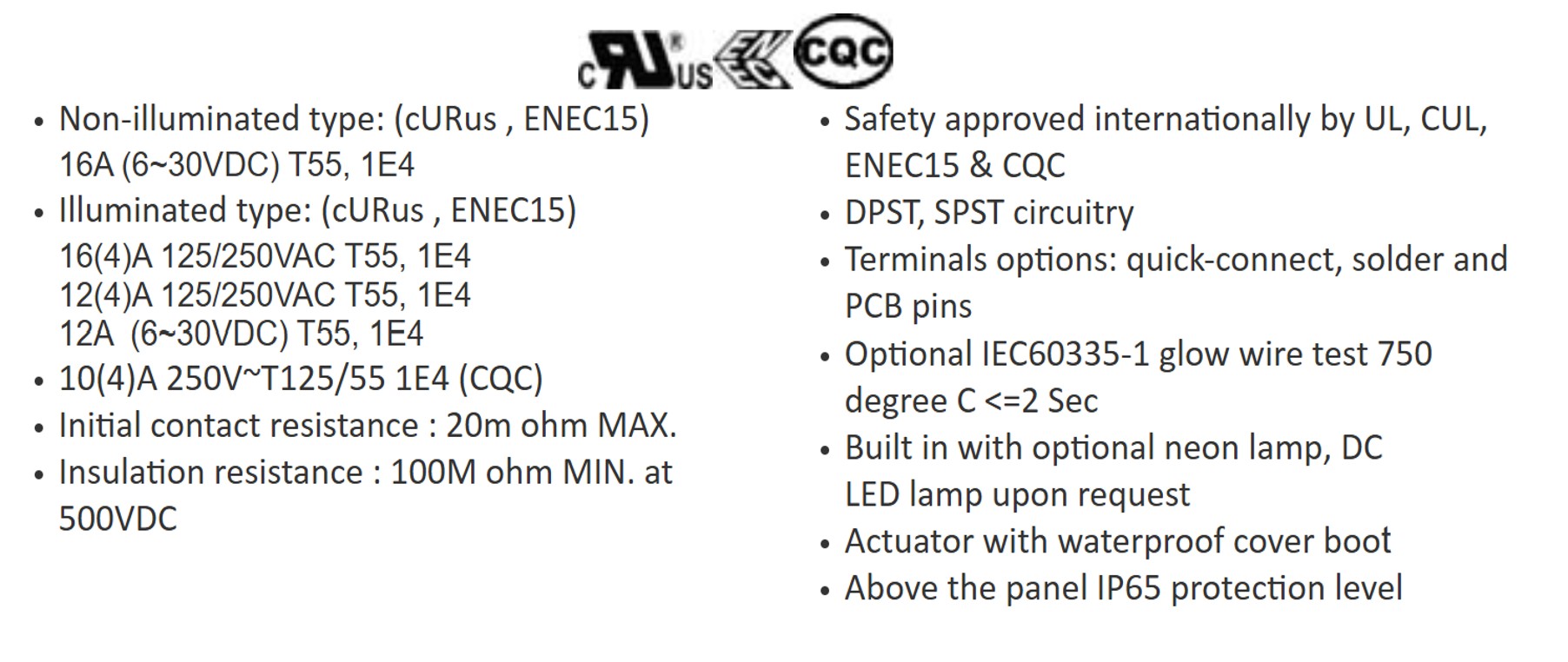

4. Rocker Switches

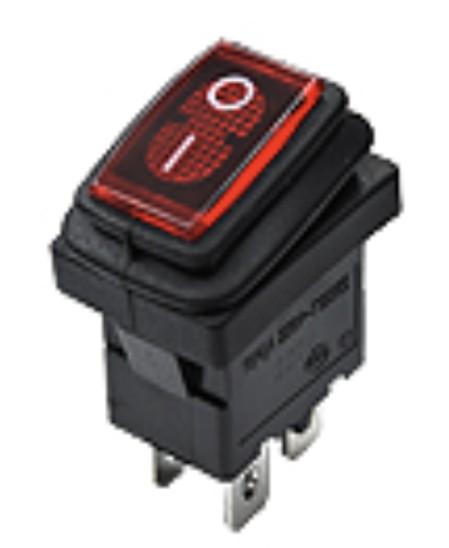

A rocker switch is an on/off switch that rocks back and forth when pressed on either side. It provides a clear visual indication of its state and is commonly used in applications requiring easy operation and status visibility.

Working Principle:

• Pressing one side of the rocker tilts the actuator and closes contacts.
• The opposite side rises, providing visual indication of switch position.
• Internal spring mechanism maintains the selected position.

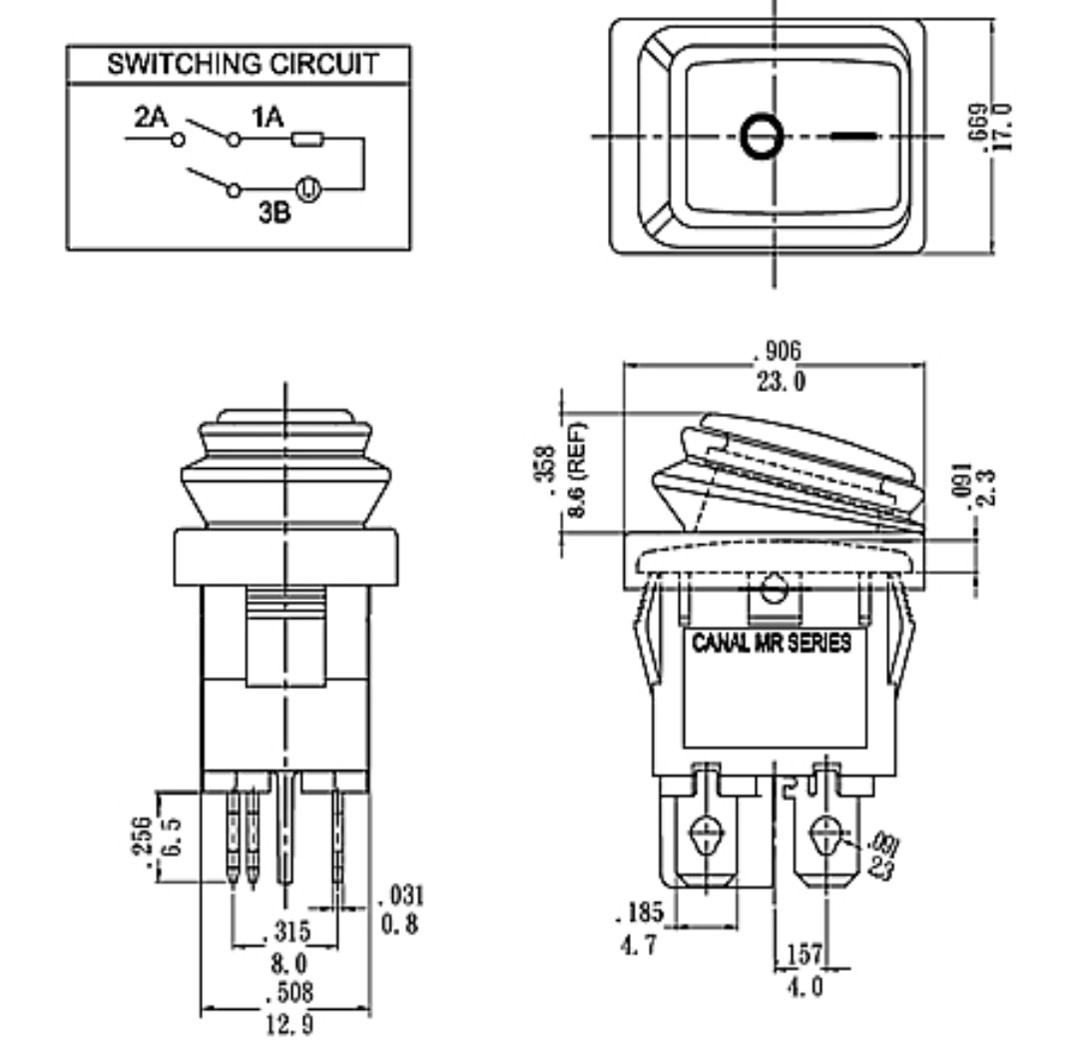

Types of Rocker Switches:

• SPST (Single Pole Single Throw): Simple on/off operation.
• DPDT (Double Pole Double Throw): Controls two separate circuits.

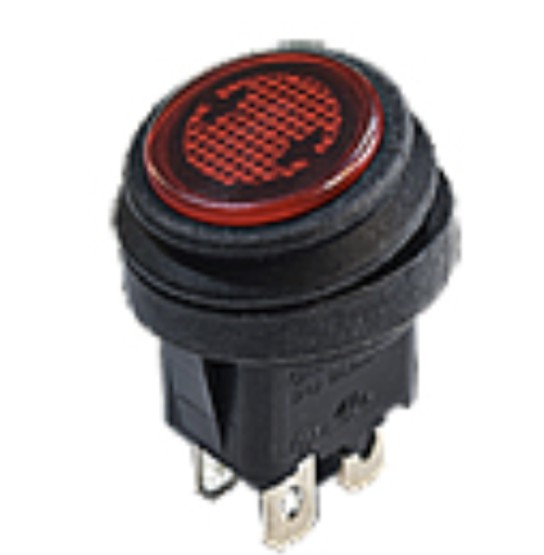

• Illuminated: Built-in LED or neon indicators.
• Sealed: Weather-resistant for outdoor applications.

Applications:

• Power switches on appliances and electronics.
• Automotive dashboard and control panels.
• Industrial equipment and machinery controls.
• Marine and RV electrical systems.

Advantages:

• Clear visual indication of switch position.
• Easy to operate with minimal force required.
• Available in various sizes and current ratings.
• Cost-effective and widely available.

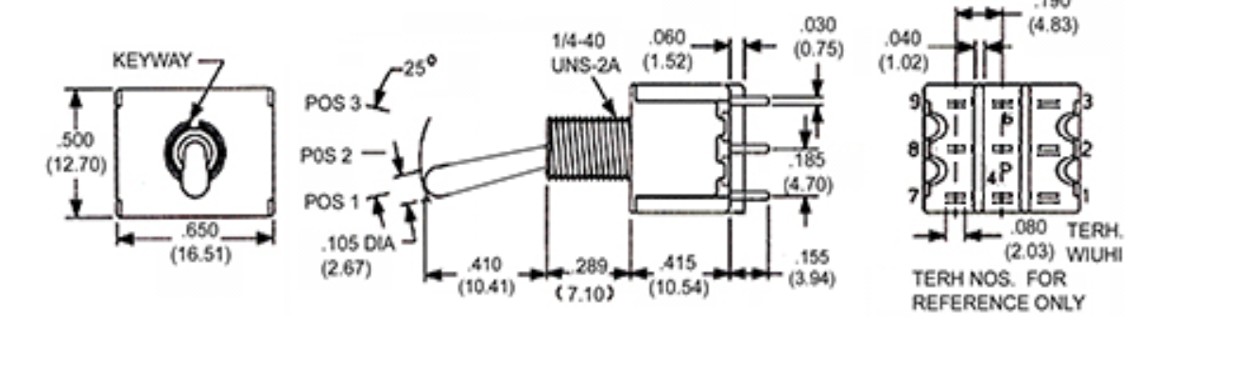

5. Toggle Switches

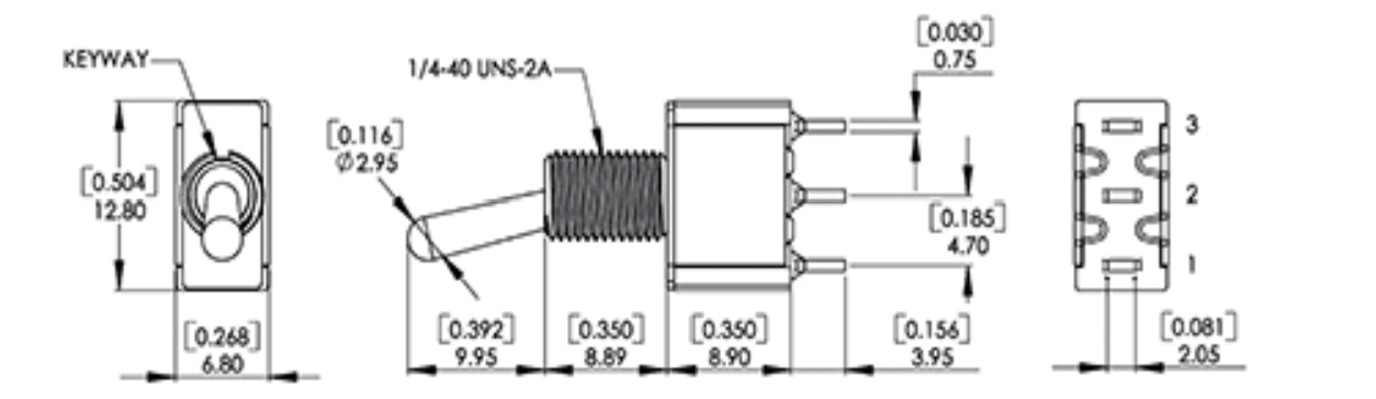

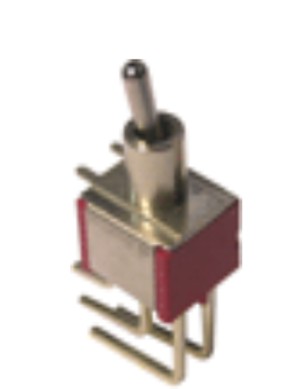

A toggle switch is a manually operated electrical switch with a protruding lever that is moved up or down (or left and right) to open or close the electrical circuit. It provides positive mechanical action and clear position indication.

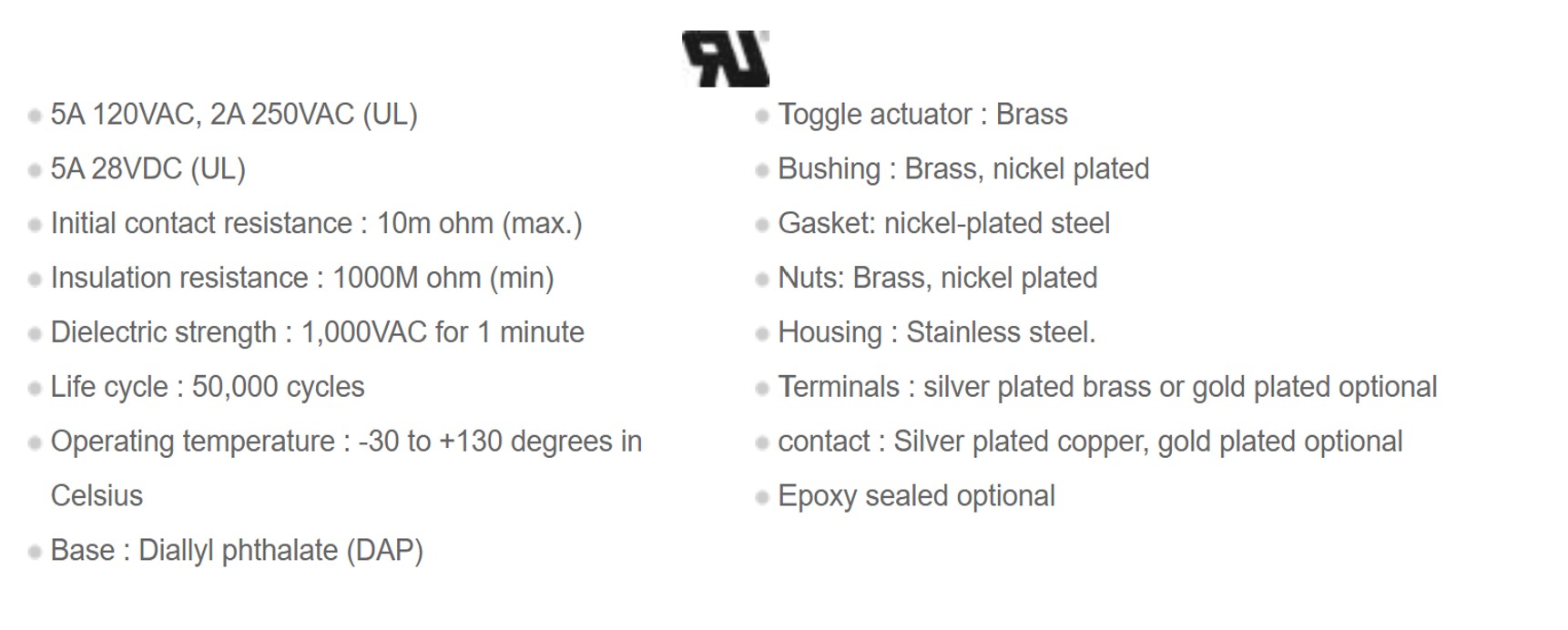

Construction:

• Metal lever actuator with internal spring-loaded mechanism.
• Robust contact system for reliable switching.
• Threaded bushing for secure panel mounting.

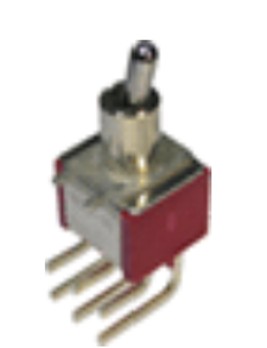

Types of Toggle Switches:

• SPST: Single circuit on/off control.
• SPDT: Single circuit with center-off or changeover operation.
• DPDT: Dual circuit control with multiple configurations.
• Momentary: Spring-return action for temporary contact.

Applications:

• Aircraft and aerospace control systems.
• Industrial control panels and machinery.
• Automotive racing and performance applications.
• Test equipment and laboratory instruments.

Advantages:

• Extremely reliable mechanical operation.
• High current and voltage handling capability.
• Positive position indication and feel.
• Long operational life and robust construction.
