Interconnects
Interconnect products are components used to create physical and electrical connections between different electronic devices, PCBs, or modules. They are critical for transmitting signals, power, or data reliably.
Types of Interconnect Products
- Connectors: Male/female plugs, headers, and sockets.
- Cable Assemblies: Pre-terminated cables with connectors.
- Terminal Blocks: Modular units for secure wire connections.
- Solderless Breadboards and Jumpers: For prototyping and temporary connections.
- Backplanes: Boards or panels that interconnect multiple PCBs or modules.
Functions of Interconnect Products
- Provide secure and reliable electrical connections.
- Enable modular assembly and easy maintenance.
- Support high-speed signal transmission.
- Ensure mechanical stability in industrial, automotive, or aerospace applications.
Production Line
USB Connectors
SPECIFICATIONS:
– Function : A Type · B Type
– No. Of Contact : 4
– Contact Type : Male · Female
– Body Option : Female Socket · Right Angle · Vertical · DIP · SMT Type
– Insulator Color : White · Black
– Function : A Type · B Type
– No. Of Contact : 4
– Contact Type : Male · Female
– Body Option : Female Socket · Right Angle · Vertical · DIP · SMT Type
– Insulator Color : White · Black

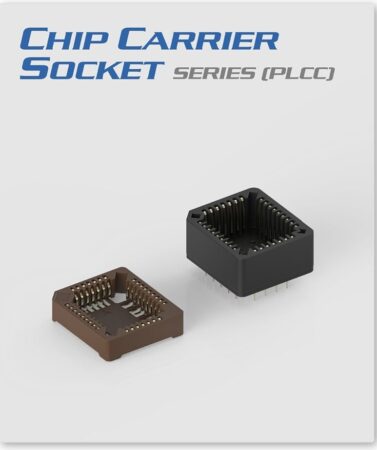

PLCC Socket
SPECIFICATIONS:
– Pitch : 1.27mm
– Type : SMT
– No.Of Contacts : 20,28,32,44,52,68,84
– Contact Plating : Tin only
– Standard Insulator : PPS
– Pitch : 1.27mm
– Type : SMT
– No.Of Contacts : 20,28,32,44,52,68,84
– Contact Plating : Tin only
– Standard Insulator : PPS

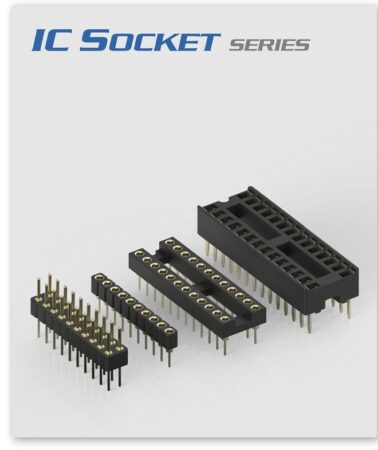

IC Socket
SPECIFICATIONS:
– Pitch : 2.54mm
– Type : Machined Pin SIP IC Socket · Machined Pin IC Socket, Stamped Pin IC Socket
– Contact Plating : Gold, Tin
– Pitch : 2.54mm
– Type : Machined Pin SIP IC Socket · Machined Pin IC Socket, Stamped Pin IC Socket
– Contact Plating : Gold, Tin
Box Header
SPECIFICATIONS:
– Pitch : 1.27mm · 2.0mm · 2.54mm
– Type Of Header : Straight · Right Angle · SMT
– No.Of Contacts : 06~68
– Contact Plating : Gold
– Pitch : 1.27mm · 2.0mm · 2.54mm
– Type Of Header : Straight · Right Angle · SMT
– No.Of Contacts : 06~68
– Contact Plating : Gold
Box Headers with Latch
SPECIFICATIONS:
– Pitch : 1.27mm · 2.0mm · 2.54mm
– Type Of Header : Straight · Right Angle · SMT
– No.Of Contacts : 10~50
– Contact Plating : Gold
– Pitch : 1.27mm · 2.0mm · 2.54mm
– Type Of Header : Straight · Right Angle · SMT
– No.Of Contacts : 10~50
– Contact Plating : Gold
DC Power Jack
SPECIFICATIONS:
– Pin # 0.7,1.0,1.3,1.65,2.0,2.35,2.5
– W / DIP,SMT Type
– Others
– Pin # 0.7,1.0,1.3,1.65,2.0,2.35,2.5
– W / DIP,SMT Type
– Others
DVI & D-SUB Connectors
SPECIFICATIONS:
– Type : Solder · DIP Straight · DIP Right Angle
– No Of Contacts: 09,15,25,26,37,44,62
– Type of Contacts : Male,Female
– Type : Solder · DIP Straight · DIP Right Angle
– No Of Contacts: 09,15,25,26,37,44,62
– Type of Contacts : Male,Female

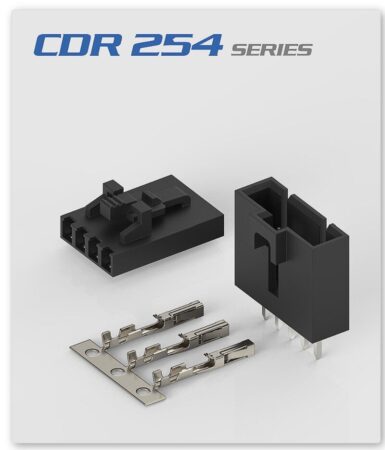

Connector
SPECIFICATIONS:
– Current rating: 3A AC, DC
– Voltage rating: 250V AC, DC
– Temperature range: -25°C~+85°C
– Contact resistance: 20mΩMax
– Insulation resistance: 1000MΩMin
– Withstanding voltage: 1000V AC/minute
– Wire Range: AWG #24 to #30
– Current rating: 3A AC, DC
– Voltage rating: 250V AC, DC
– Temperature range: -25°C~+85°C
– Contact resistance: 20mΩMax
– Insulation resistance: 1000MΩMin
– Withstanding voltage: 1000V AC/minute
– Wire Range: AWG #24 to #30

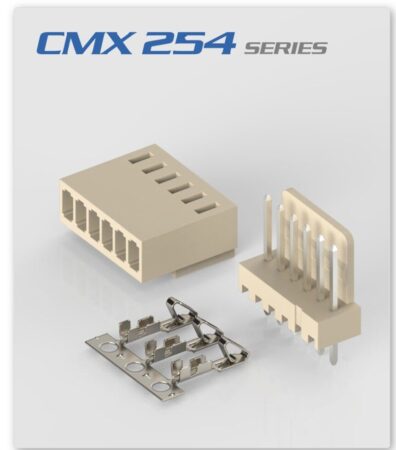

PCB Headers/Mating Connector
SPECIFICATIONS:
– Current rating: 3A AC, DC
– Voltage rating: 250V AC, DC
– Temperature range: -25°C~+85°C
– Contact resistance: 20mΩMax
– Insulation resistance: 1000MΩMin
– Withstanding voltage: 1000V AC/minute
– Wire Range: AWG #22 to #30
– Current rating: 3A AC, DC
– Voltage rating: 250V AC, DC
– Temperature range: -25°C~+85°C
– Contact resistance: 20mΩMax
– Insulation resistance: 1000MΩMin
– Withstanding voltage: 1000V AC/minute
– Wire Range: AWG #22 to #30

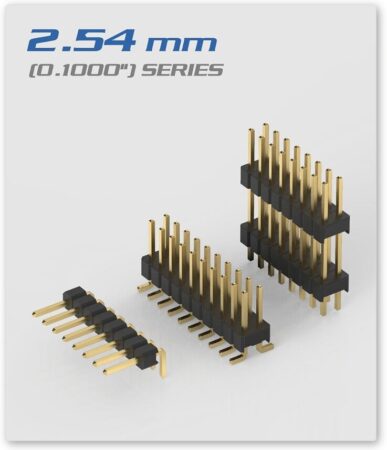

Headers
SPECIFICATIONS:
– Current Rating: 3.0 Amp
– Insulator Resistance: 5000 Megohms Min.
– Dielectric Withstanding: AC 1000 V
– Operating Temperature: -40°C ~ +105°C
– Contact Material: Copper Alloy
– Insulator Material: High Temperature, Thermoplastic, UL 94V-0
– Standard: PBT · Nylon-6T
– Finish: Gold Plated
– Standard: Gold Flash all over
– Current Rating: 3.0 Amp
– Insulator Resistance: 5000 Megohms Min.
– Dielectric Withstanding: AC 1000 V
– Operating Temperature: -40°C ~ +105°C
– Contact Material: Copper Alloy
– Insulator Material: High Temperature, Thermoplastic, UL 94V-0
– Standard: PBT · Nylon-6T
– Finish: Gold Plated
– Standard: Gold Flash all over

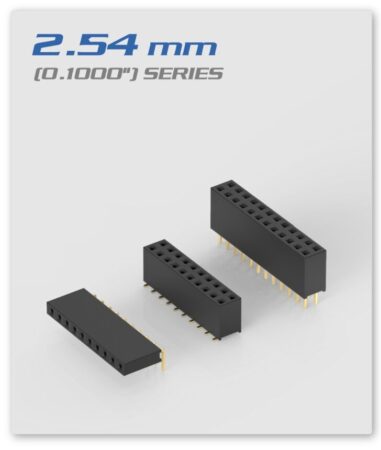

Board to Board Connector
SPECIFICATIONS:
– Current Rating: 3.0 Amp
– Insulator Resistance: 5000 Megohms Min.
– Contact Resistance: 20 m ohms max.
– Dielectric Withstanding: AC 1000 V
– Operating Temperature: -40°C ~ +105°C
– Contact Material: Phosphor Bronze
– Insulator Material: High Temperature, Thermoplastic, UL 94V-0
– Standard: PBT · Nylon-6TT
– Finish: Gold Plated
– Standard: Gold Flash all over
– Current Rating: 3.0 Amp
– Insulator Resistance: 5000 Megohms Min.
– Contact Resistance: 20 m ohms max.
– Dielectric Withstanding: AC 1000 V
– Operating Temperature: -40°C ~ +105°C
– Contact Material: Phosphor Bronze
– Insulator Material: High Temperature, Thermoplastic, UL 94V-0
– Standard: PBT · Nylon-6TT
– Finish: Gold Plated
– Standard: Gold Flash all over

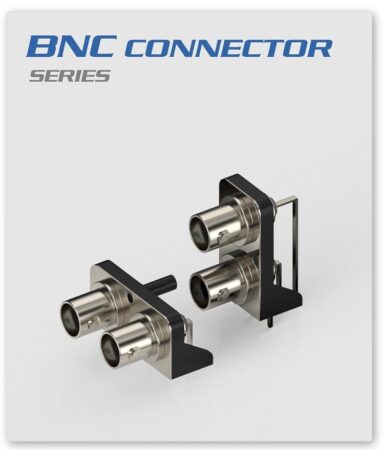

BNC Connector
SPECIFICATIONS:
– Voltage rating: 500V AC
– Current rang: 5 Amp
– Temperature range: -40°C~+85°C
– Nominal impedance: 50 or 75 ohms
– Frequency Range: 04GHz (50 ohm) 01GHz (750 ohm)
– VSWR(Voltage Standing Wave Ratio): 1.5 Max
– Voltage rating: 500V AC
– Current rang: 5 Amp
– Temperature range: -40°C~+85°C
– Nominal impedance: 50 or 75 ohms
– Frequency Range: 04GHz (50 ohm) 01GHz (750 ohm)
– VSWR(Voltage Standing Wave Ratio): 1.5 Max
Phone Jack
SPECIFICATIONS:
– Ø : 2.5 m/m, 3.5 m/m, 6.3 m/m Available
– DIP, SMT, Low Profile Available
– Others
– Ø : 2.5 m/m, 3.5 m/m, 6.3 m/m Available
– DIP, SMT, Low Profile Available
– Others
RCA Jack
SPECIFICATIONS:
– RCA Jack Series Available
– Switch / Non Switch
– RCA Jack Series Available
– Switch / Non Switch
RJ Jack

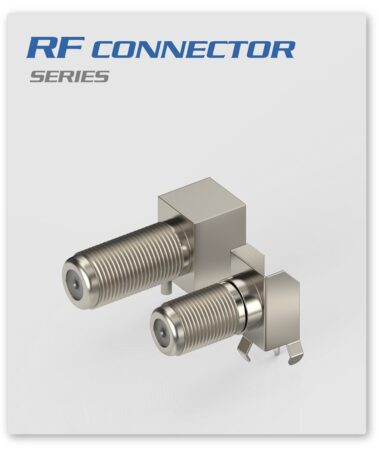

RF Connectors
SPECIFICATIONS:
– Insulation Resistance:1000M ohm MIN.,DC 500V
– Temperature range: -20°C~+125°C
– Dielectric Strength:500V AC for 1 minute.
– Frequency Range: 0 GHz ~ 2 GHz
– Insulation Resistance:1000M ohm MIN.,DC 500V
– Temperature range: -20°C~+125°C
– Dielectric Strength:500V AC for 1 minute.
– Frequency Range: 0 GHz ~ 2 GHz
Micro USB
SPECIFICATIONS:
– Function : A Type · B Type · AB Type
– No.Of Contact :
– MINI: 4 · 5 · 8 · 10 · 12 · 13
– MICRO:5 · 10
– Contact Type : Male · Female
– Body Option : Female Socket · Right Angle · DIP · SMT Type
– Insulator Color : Black
– Function : A Type · B Type · AB Type
– No.Of Contact :
– MINI: 4 · 5 · 8 · 10 · 12 · 13
– MICRO:5 · 10
– Contact Type : Male · Female
– Body Option : Female Socket · Right Angle · DIP · SMT Type
– Insulator Color : Black

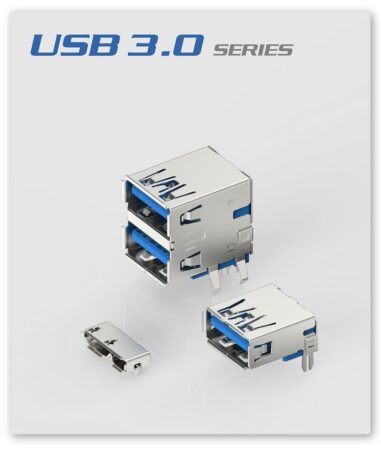

USB 3.0 Connector

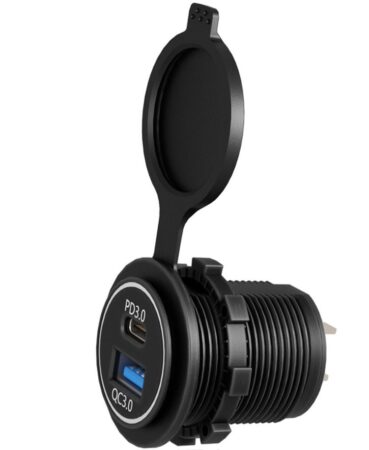

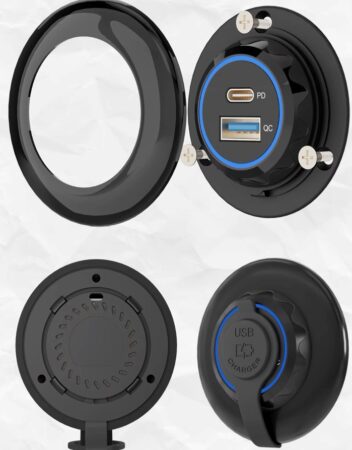

Panel Mount USB Connector
