Circuit Breakers
Mini thermal circuit breakers (MCBs or TCBs) are compact protective devices designed to automatically disconnect a circuit when it is overloaded or short-circuited. They are widely used in appliances, automotive systems, and industrial control panels where space is limited but reliable protection is needed.

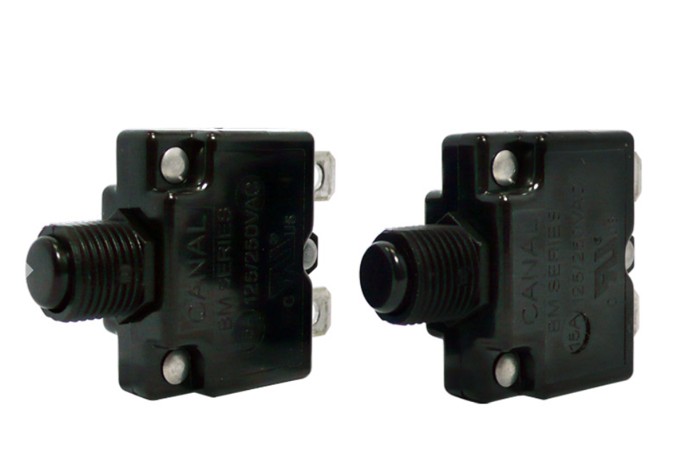

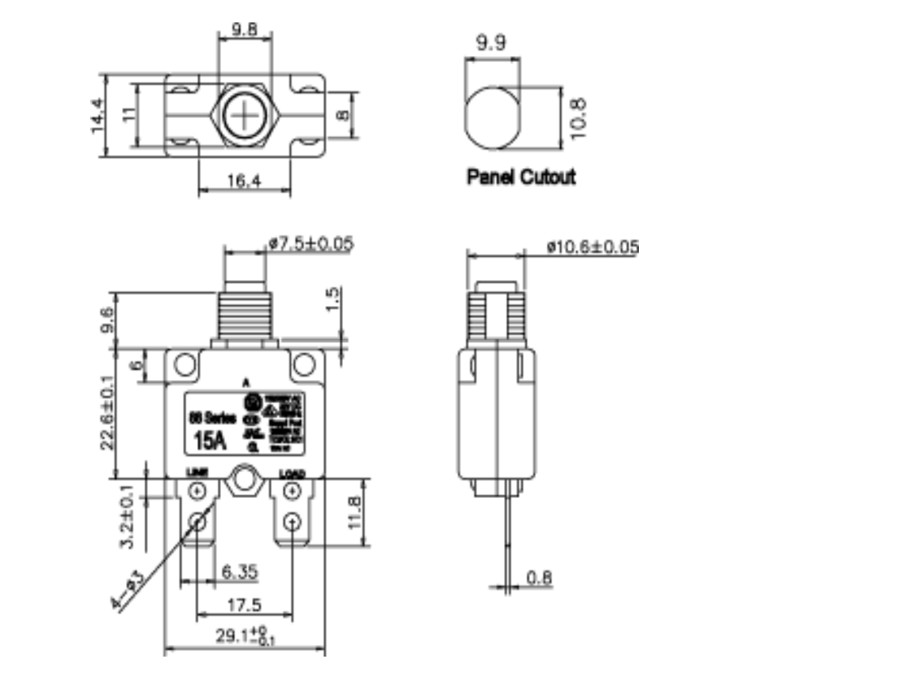

Circuit Breaker 3.0 A -25.0 Amp
ORDERING P/N CB-88-A
(A IS Amp )

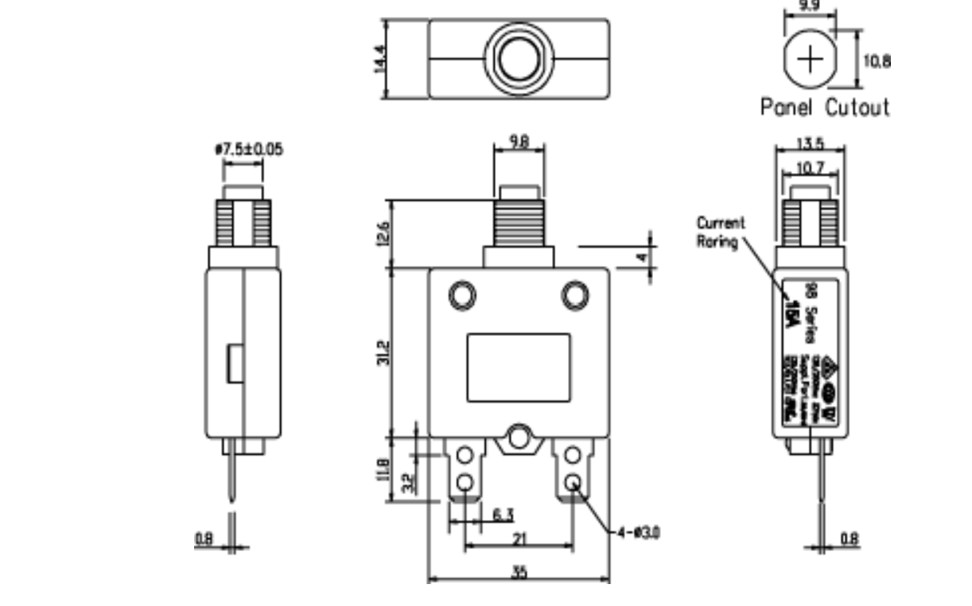

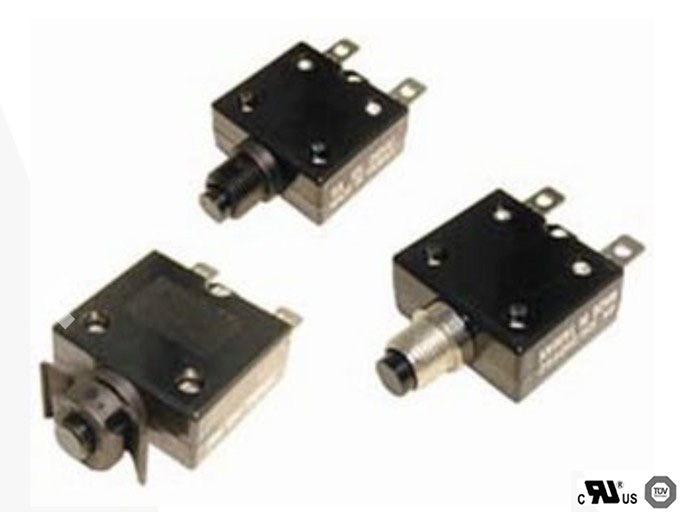

Circuit Breaker 3.0 A -30 Amp
ORDERING P/N:
CB-98-A
(A IS Amp )

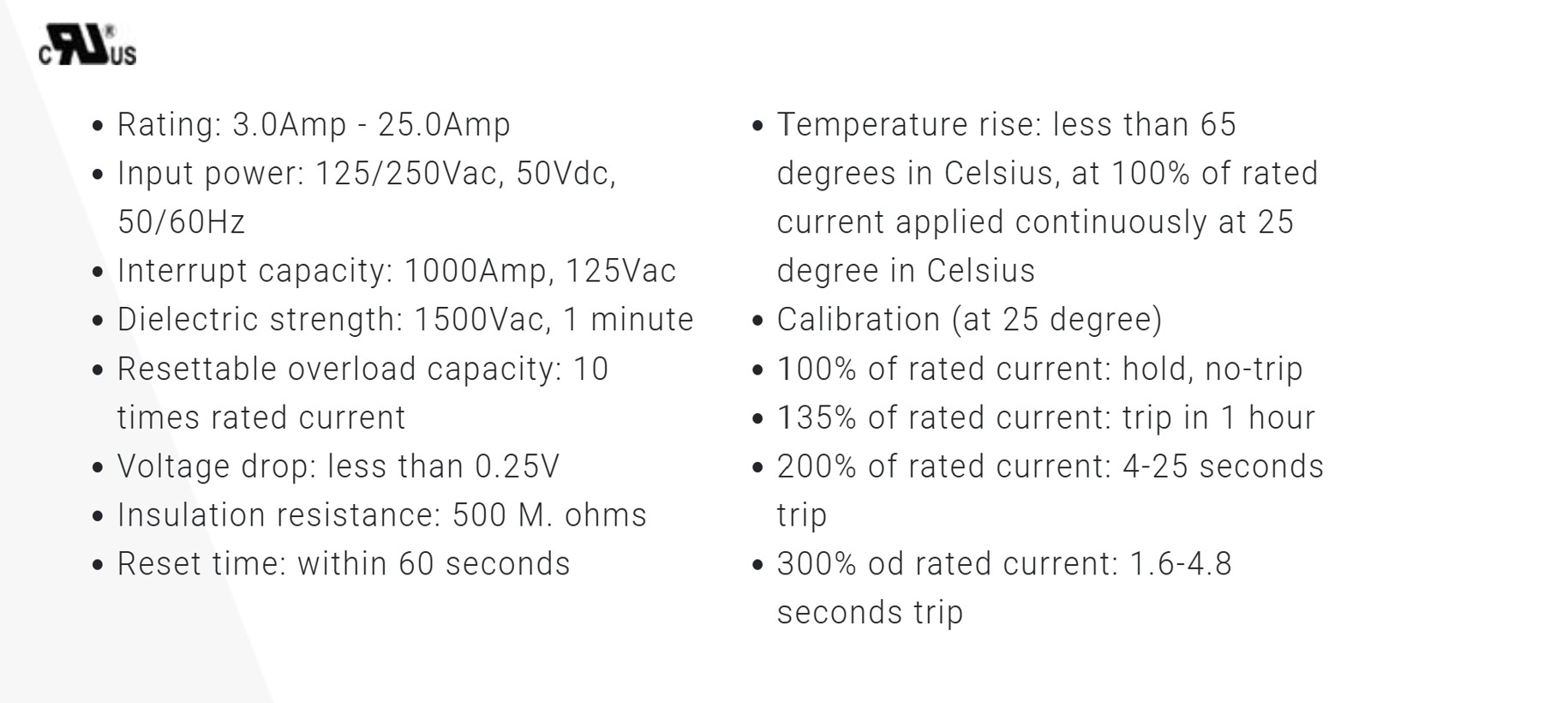

Rating:
3.0 -30 Amps
Input Power:
125/250V AC,50V DC,50/60 HZ
Interrupt Capacity:
1000A,125VAC,200A,250VAC
Dielectric:
1500VAC 1minute
Overload capacity
10 Times Rated Current
Insulation:
500 Mohm
Reset Time:
60 seconds
