Terminal Blocks
Single-Row Feed-Through Terminal Blocks
A single-row barrier feed-through terminal block is a type of electrical connector used to safely and neatly join or pass wires through a panel, enclosure, or mounting plate.
Barrier Terminal Block
- A barrier terminal block has insulating barriers (walls) between each terminal to prevent accidental short circuits between adjacent connections.
- These are common in power distribution and control panels because they improve safety and reduce wiring mistakes.
Feed-Through Design
- “Feed-through” means the block allows a conductor (wire) to pass straight through from one side to the other, making it easy to connect incoming and outgoing wires.
- Typically, you insert a wire into one side and connect it with a screw or spring clamp, and then another wire into the opposite side.

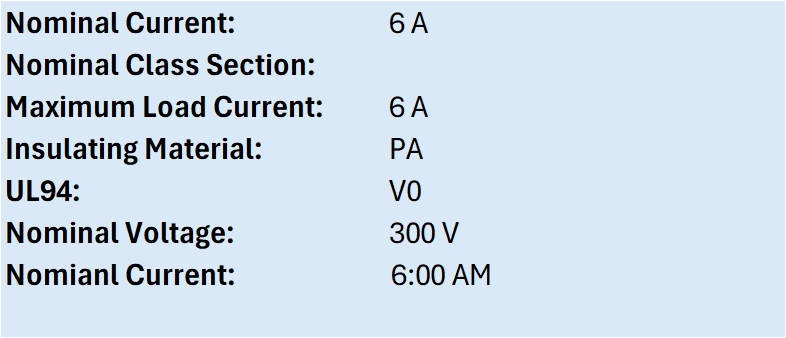

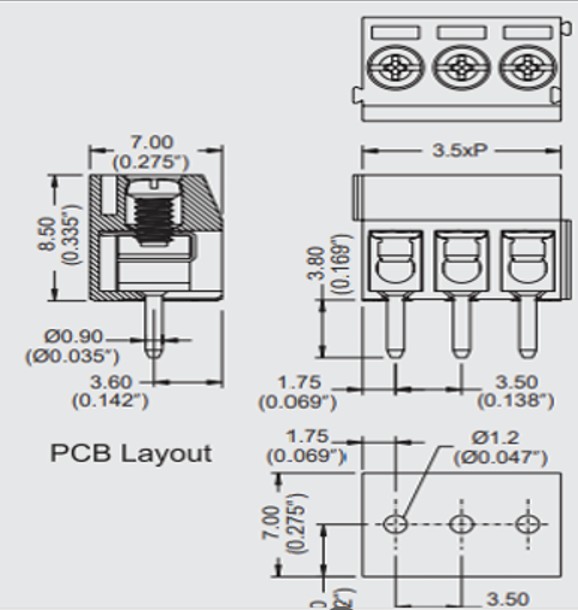

PCB 3.5mm Spacing Terminal Block
Ordering P/N: PC-212-POLE
Pitch: 3.5 mm
Poles: 2~3 Poles
Housing Material: PA66
Spring: Stainless Steel
Contact: Brass Tin Plated
Screw Thread: M2.0 Steel, Zinc Plated
Wire Size: 16~26 AWG
Wire Strip Length: 5mm – 6mm
PCB Hole Diameter: 1.2 mm
Torque: 2.0 lb-in
Operating Temp: (-)40°C to (+)105°C

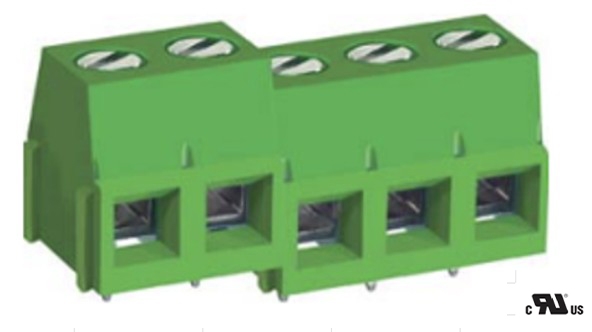

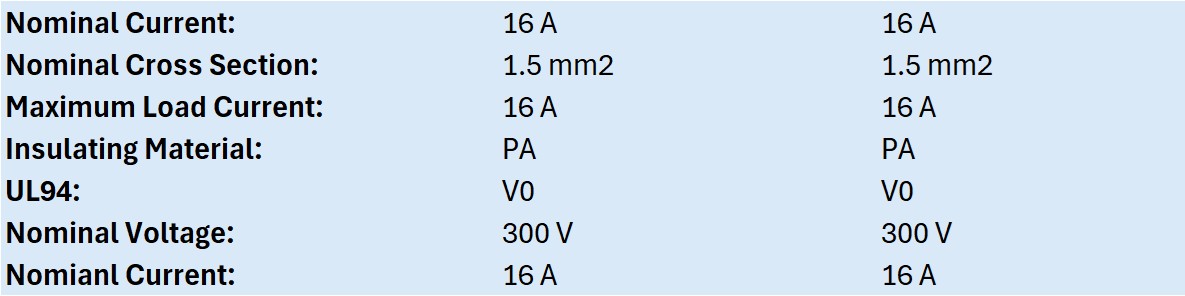

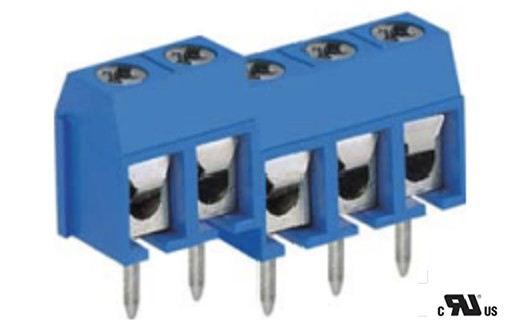

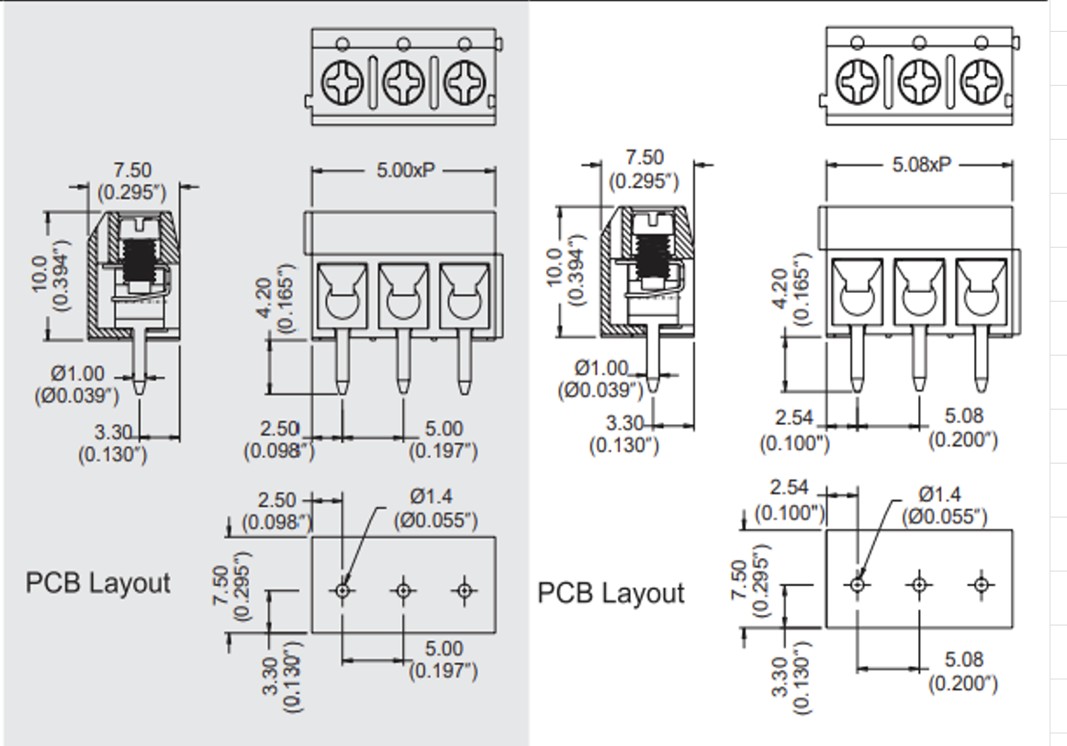

PCB 5.00mm; 5.08mm Spacing Terminal Block
Ordering P/N: PC-412-PITCH-POLE
Pitch: 5.0 mm / 50.08 mm
Poles: 2~3 Poles
Housing Material: PA66
Spring: Stainless Steel
Contact: Brass Tin Plated
Screw Thread: M2.6 Steel, Zinc Plated
Wire Size: 12~26 AWG
Wire Strip Length: 5mm – 6mm
PCB Hole Diameter: 1.4 mm
Torque: 4.0 lb-in
Operating Temp: (-)40°C to (+)105°C

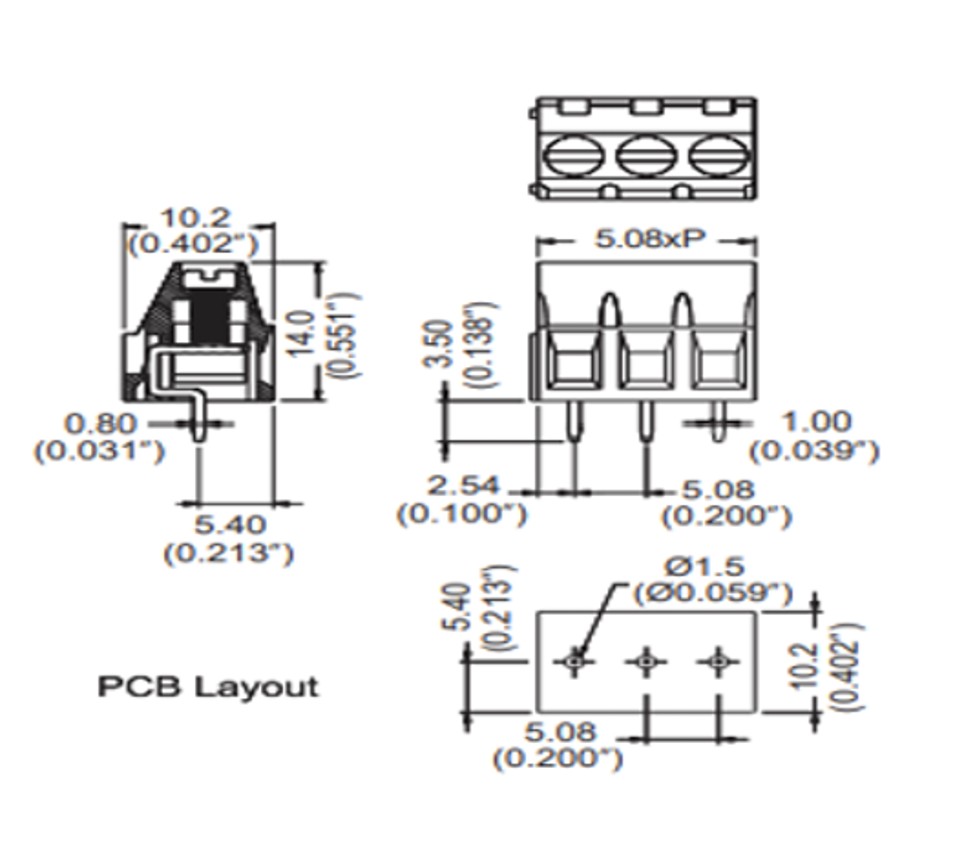

PCB 5.08 mm Spacing Terminal Block
Ordering P/N: PC-310B-5.08-POLE
Pitch: 50.08 mm
Poles: 2~3 Poles
Housing Material: PA66
Clamp: Steel
Contact: Brass Tin Plated
Screw Thread: M2.6 Steel, Zinc Plated
Wire Size: 12~26 AWG
Wire Strip Length: 7 mm
PCB Hole Diameter: 1.5 mm
Torque: 7.0 lb-in
Operating Temp: (-)40°C to (+)105°C

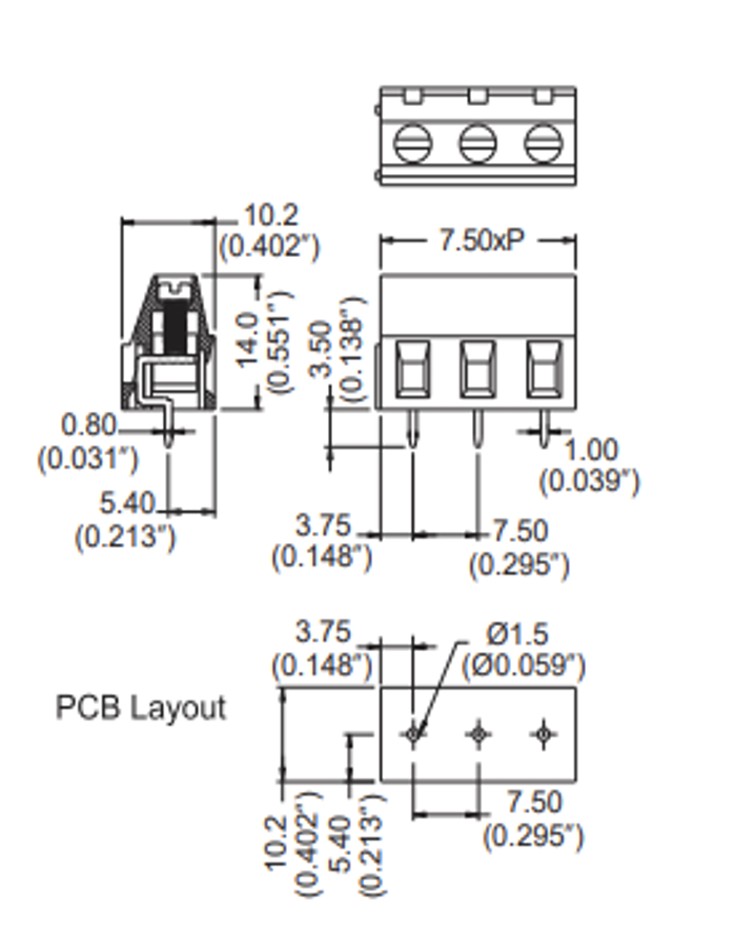

PCB 7.50mm Spacing Terminal Block
Ordering P/N: PC-310B-7.5-POLE
Pitch: 7.50 mm
Poles: 2~3 Poles
Housing Material: PA66
Clamp: Steel
Contact: Brass Tin Plated
Screw Thread: M2.6 Steel, Zinc Plated
Wire Size: 12~26 AWG
Wire Strip Length: 7 mm
PCB Hole Diameter: 1.5 mm
Torque: 7.0 lb-in
Operating Temp: (-)40°C to (+)105°C

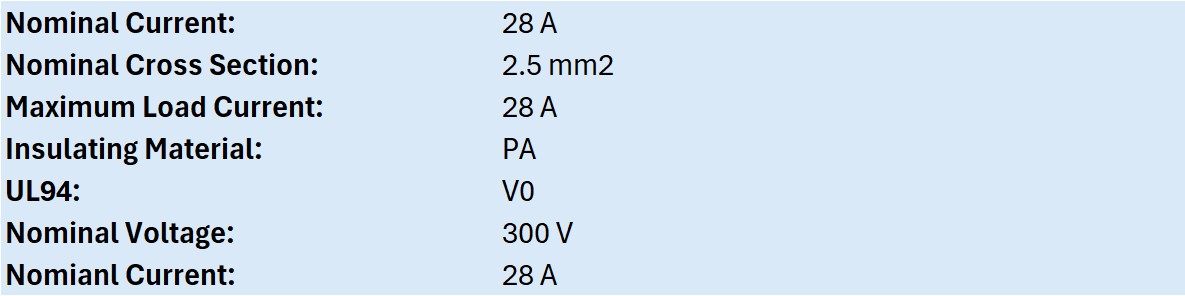

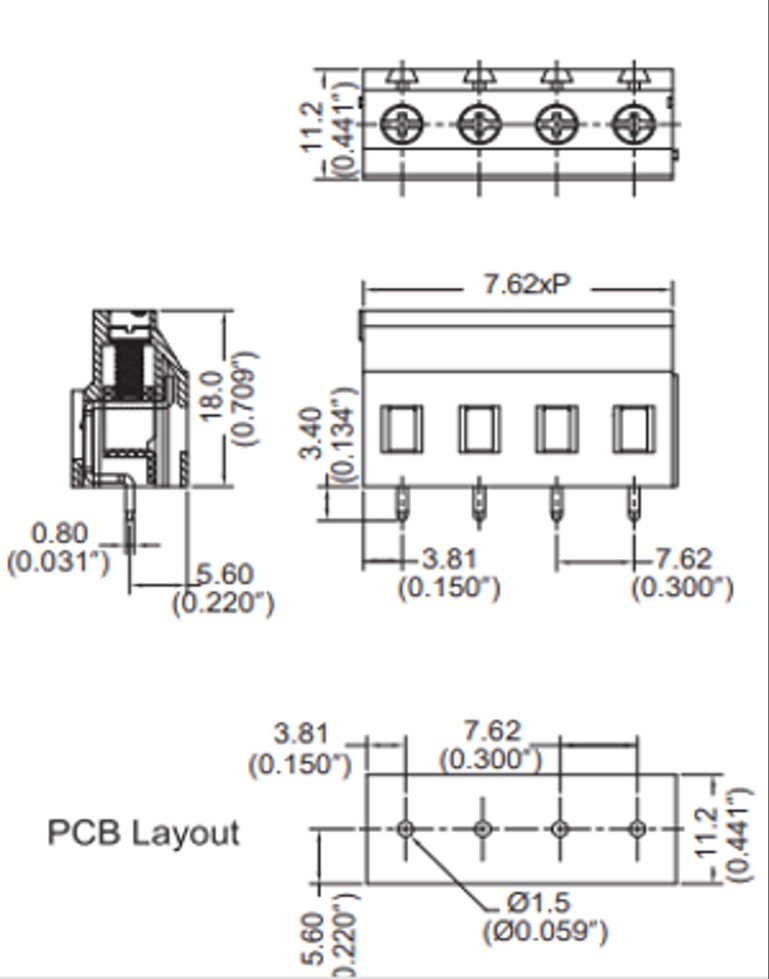

PCB 7.62mm Spacing Terminal Block
Ordering P/N: PC-312B-762-POLE
Pitch: 7.62 mm
Poles: 2~3 Poles
Housing Material: PA66
Clamp: Steel
Contact: Brass Tin Plated
Screw Thread: M2.6 Steel, Zinc Plated
Wire Size: 12~24 AWG
Wire Strip Length: 8 mm
PCB Hole Diameter: 1.5 mm
Torque: 6.0 lb-in
Operating Temp: (-)40°C to (+)105°C

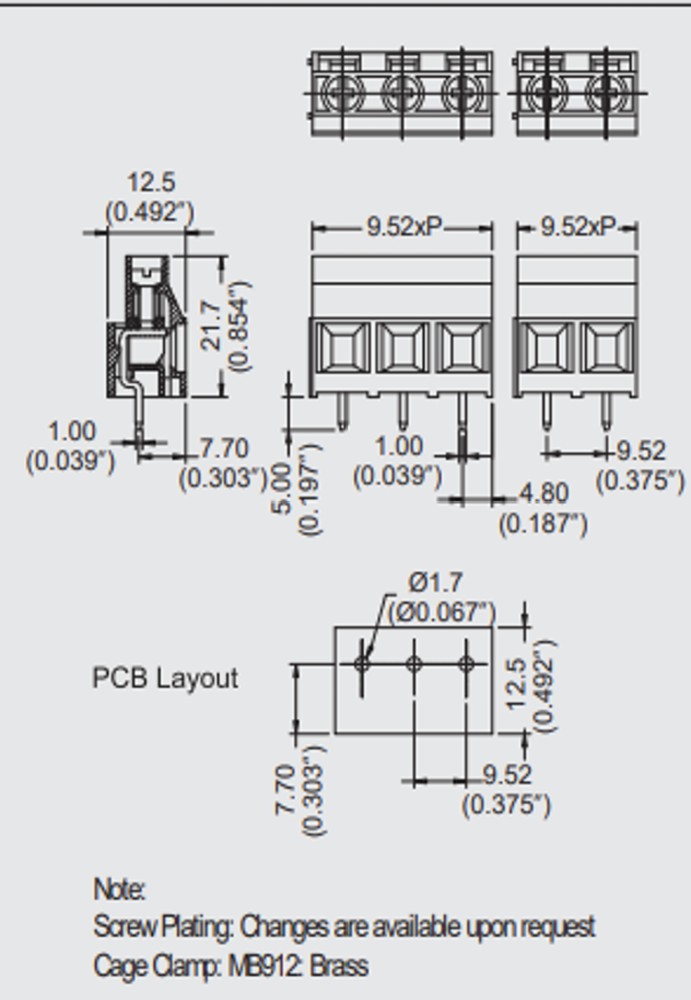

PCB 9.52mm Spacing Terminal Block
Ordering P/N: PC-910B-952-POLE
Pitch: 9.52 mm
Poles: 2~3 Poles
Housing Material: PA66
Clamp: Steel
Contact: Brass Tin Plated
Screw Thread: M3.0 Steel, Zinc Plated
Wire Size: 10~24 AWG
Wire Strip Length: 8 mm
PCB Hole Diameter: 1.7 mm
Torque: 9.0 lb-in
Operating Temp: (-)40°C to (+)105°C

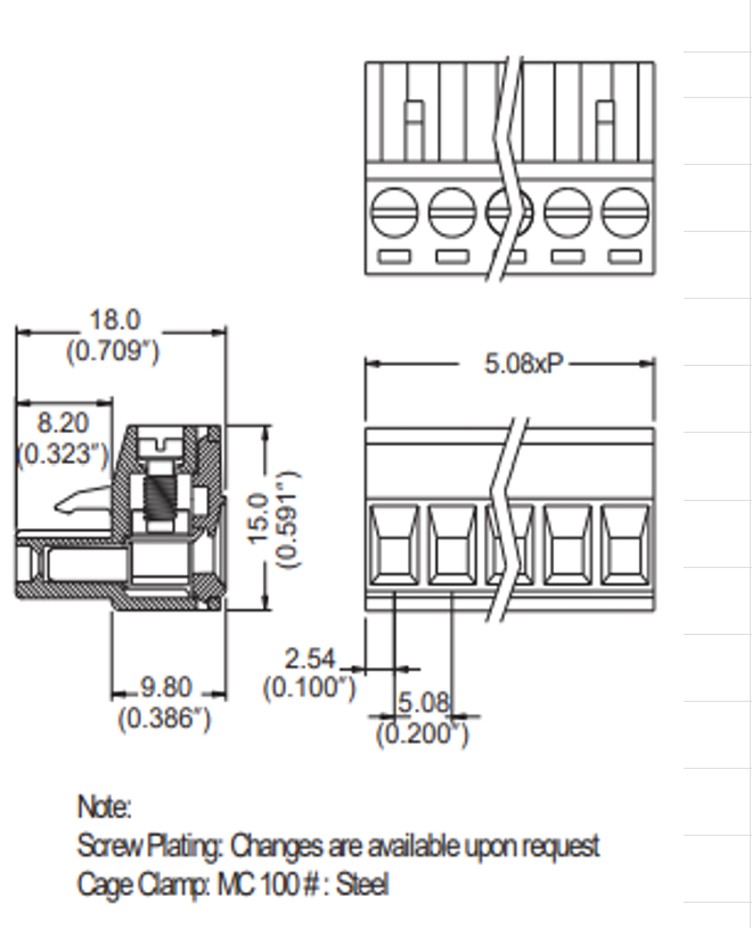

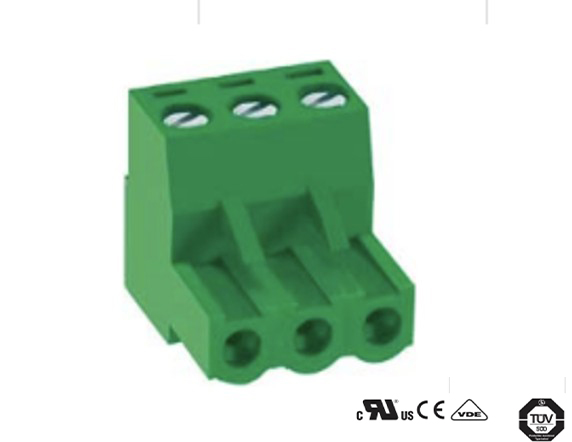

PCB 5.08mm Spacing Terminal Block Plug
Ordering P/N: PLUG-100c-508-POLE
Pitch: 5.08 mm
Poles: 2~24 Poles
Housing Material: PA66
Clamp: Brass Ni Plated
Contact: PB Tin Plated
Screw Thread: M3.0 Steel, Zinc Plated
Wire Size: 12~24 AWG
Wire Strip Length: 7 mm
Torque: 7.0 lb-in
Operating Temp: (-)40°C to (+)105°C

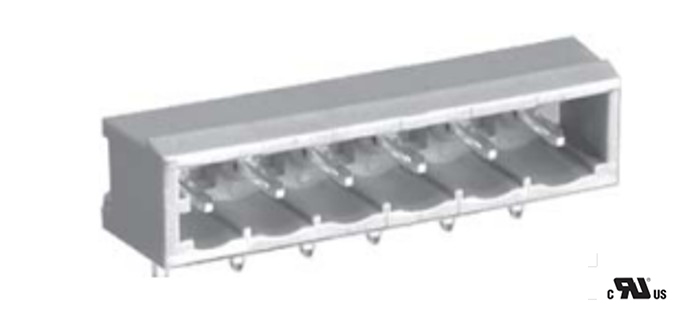

PCB 5.08mm Spacing Terminal Block Header
Ordering P/N: HEADER-100c-508-POLE
Pitch: 5.08 mm
Poles: 2~24 Poles
Housing Material: PA66
Contact: PB Tin Plated
PCB Hole Diameter: 1.7 mm
Operating Temp: (-)40°C to (+)105°C

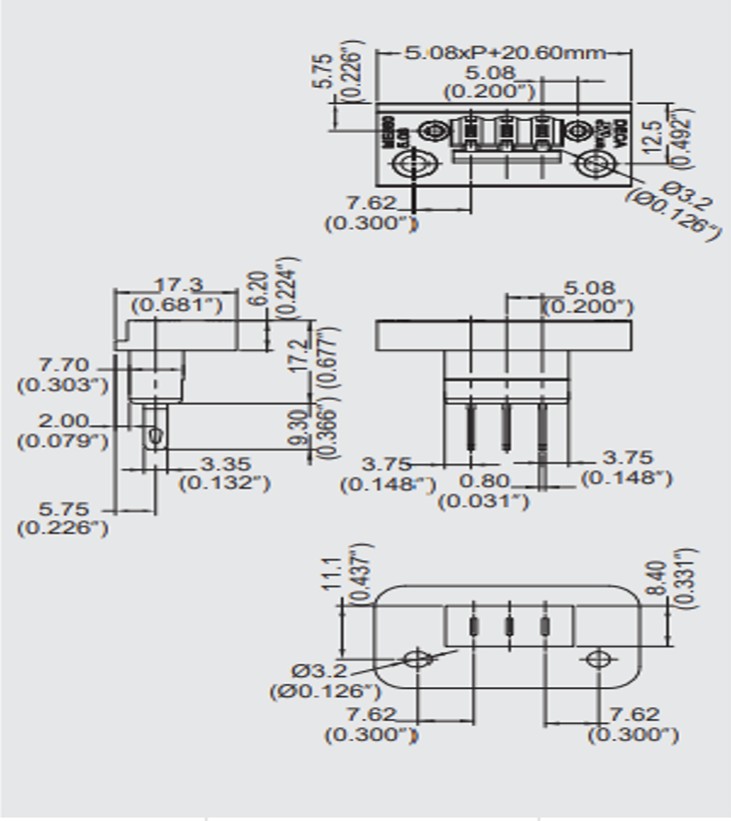

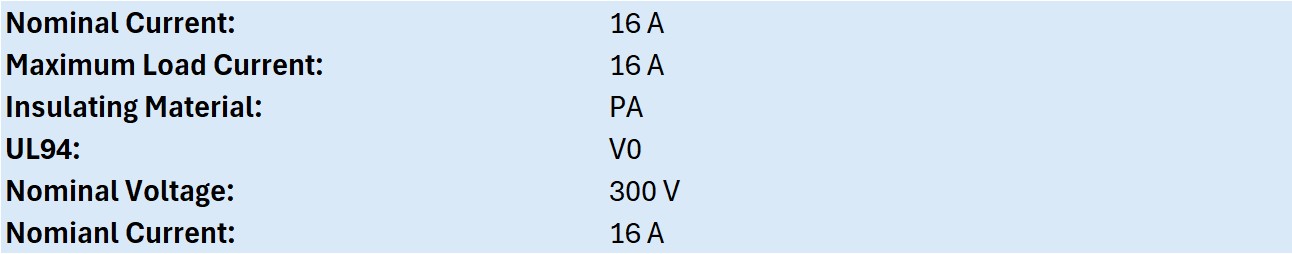

Panel Mount/PCB 5.08mm Header
Ordering P/N: PANEL HEADER-508-POLE
Pitch: 5.08 mm
Poles: 2~24 Poles
Housing Material: PA66
Contact: Brass Tin Plated
PCB Hole Diameter: 1.3 mm
Operating Temp: (-)40°C to (+)105°C

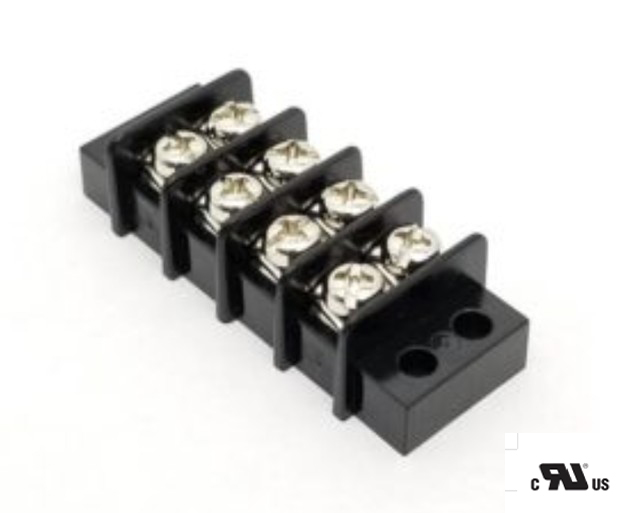

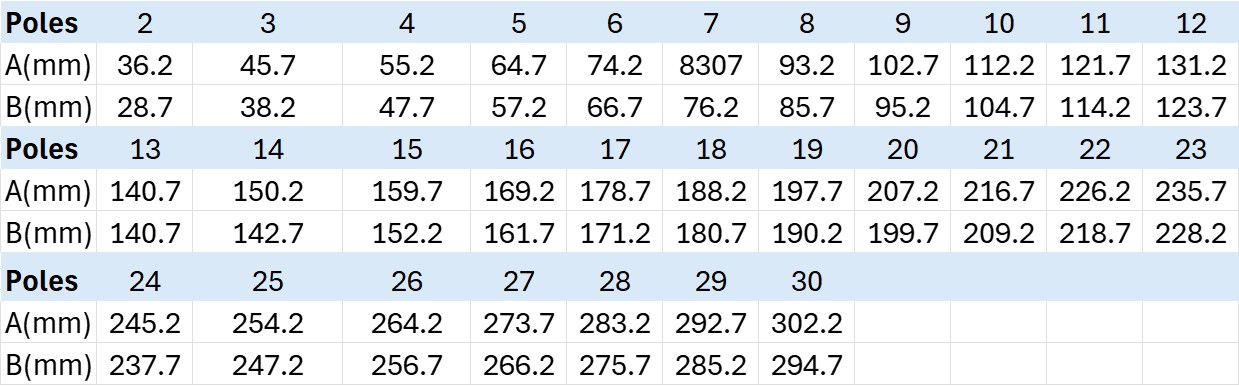

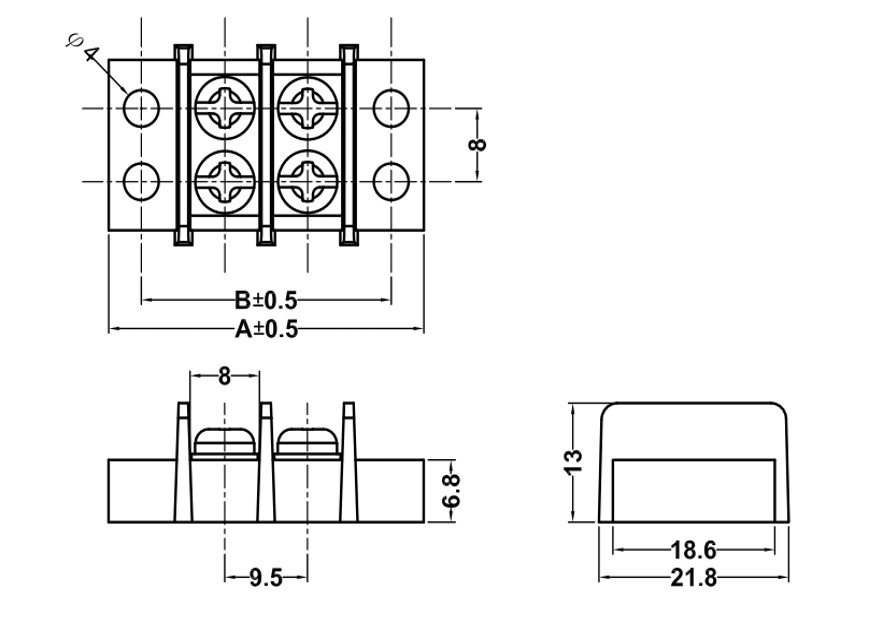

0.374"(9.5mm) Double Row Barrier Terminal Blocks
Ordering P/N: TB1-POLES-SCREW (For example: 2 pole will be TB1-2-S) (B for Brass, S for Steel Screw)
Terminal: Brass, Tin Plated, 0.8 t
Insulator Body: PC (UL94V-0), Black
Screw: #6-32, Steel, Ni Plated / Brass Ni Plated
Operation Temp: (-)40°C to (+)120°C
Rated Current: 20 Amp, 300 V
Insulation Withstand Volt: 2000 V 1 min
Insulation Resistance: 2000 mOhm at DC 500 V
Wire Range: 12~22 AWG
Screw Torque: 12 lb-in

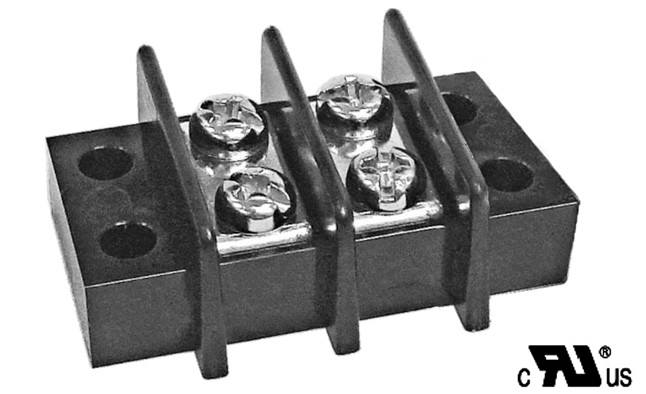

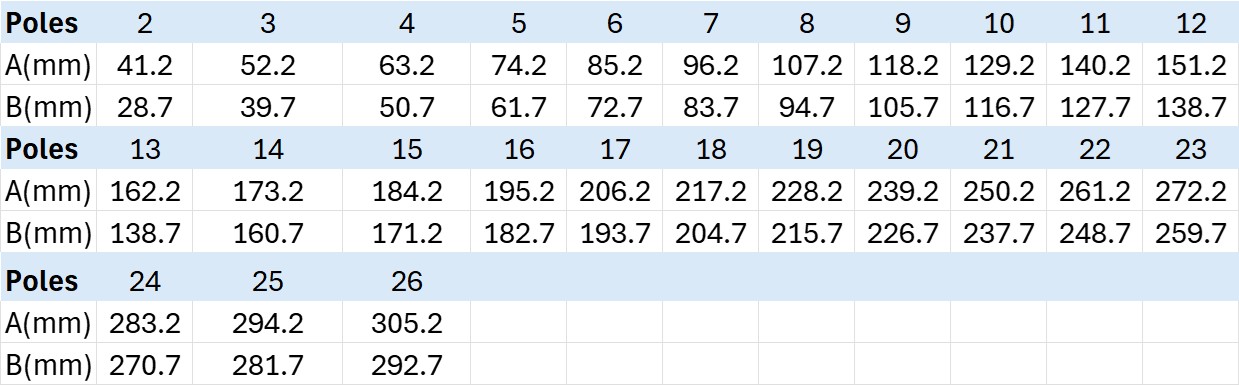

0.433" (11.1mm) Double Row Barrier Terminal Blocks
Ordering P/N: TB2-POLES-SCREW (For example: 2 pole will be TB2-2-S) (B for Brass, S for Steel Screw)
Terminal: Brass, Tin Plated, 0.8 t
Insulator Body: PC (UL94V-0), Black
Screw: #6-32, Steel, Ni Plated / Brass Ni Plated
Operation Temp: (-)40°C to (+)120°C
Rated Current: 20 Amp, 300 V
Insulation Withstand Volt: 2000 V 1 min
Insulation Resistance: 2000 mOhm at DC 500 V
Wire Range: 12~22 AWG
Screw Torque: 12 lb-in

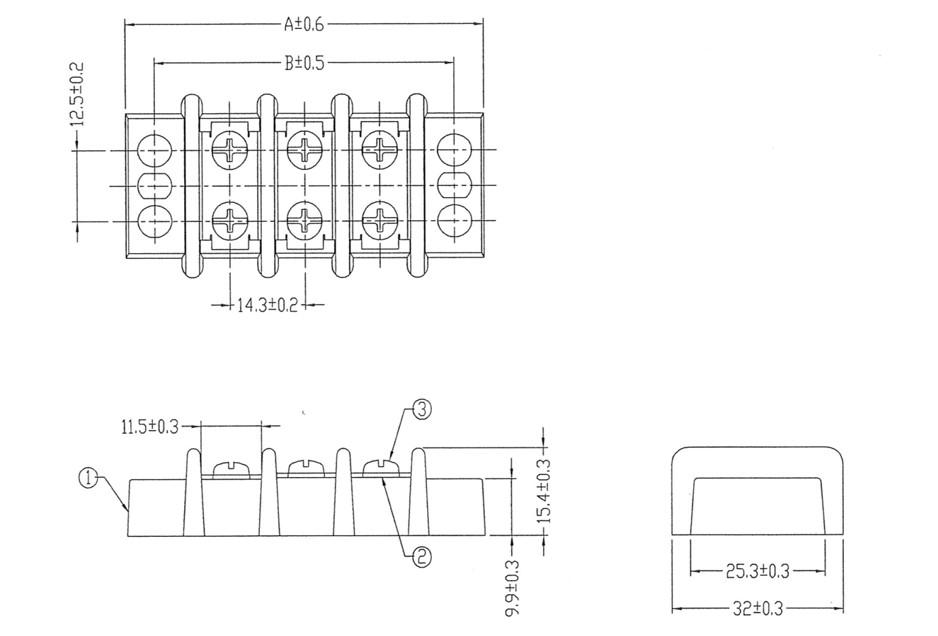

0.563"(14.3mm) Double Row Barrier Terminal Blocks 300V
Ordering P/N: TB3-POLES-SCREW (For example: 2 pole will be TB3-2-S) (B for Brass, S for Steel Screw)
Terminal: Brass, Tin Plated, 0.8 t
Insulator Body: PC (UL94V-0), Black
Screw: 8-32 Steel Ni Plated / Brass Ni Plated
Operation Temp: (-)40°C to (+)120°C
Rated Current: 30 Amp, 300 V
Insulation Withstand Volt: 2000 V 1 min
Insulation Resistance: 2000 mOhm at DC 500 V
Wire Range: 12~22 AWG
Screw Torque: 14 lb-in

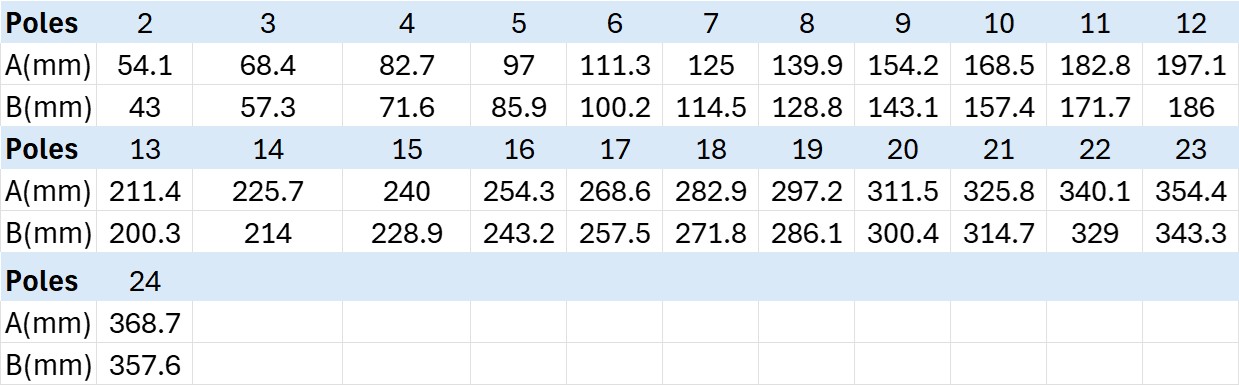

0.563" (14.3mm) Double Row Barrier terminal Blocks 600V
Ordering P/N: TB4H-POLES-SCREW (For example: 2 pole will be TB4H-2-S) (B for Brass, S for Steel Screw)
Terminal: Brass, Tin Plated, 0.8 t
Insulator Body: PC (UL94V-0), Black
Screw: 8-32 Steel Ni Plated / Brass Ni Plated
Operation Temp: (-)40°C to (+)120°C
Rated Current: 30 Amp, 600 V
Insulation Withstand Volt: 2000 V 1 min
Insulation Resistance: 2000 mOhm at DC 500 V
Wire Range: 12~22 AWG
Screw Torque: 14 lb-in
