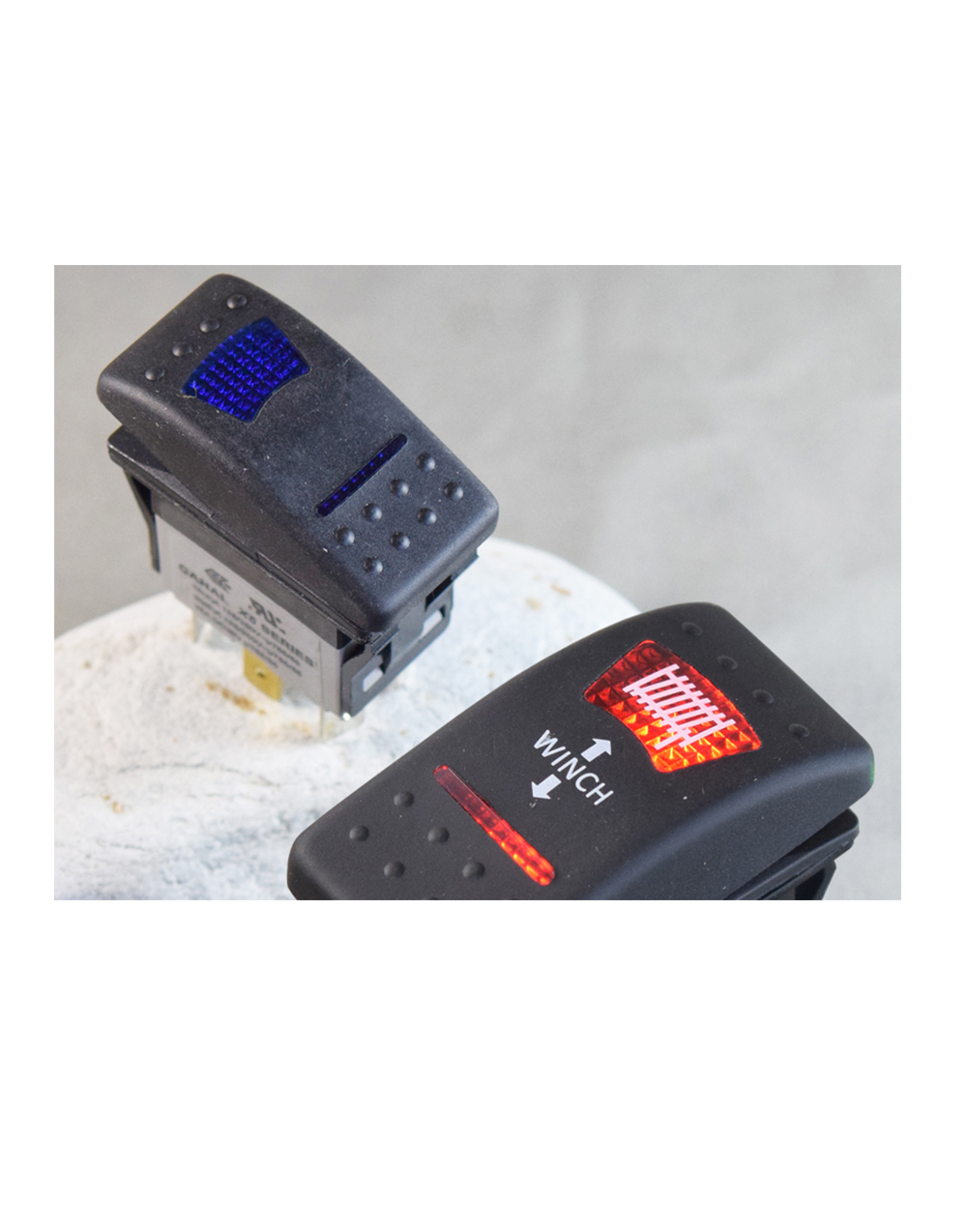

Heavy duty sealed rocker switches, up to 20(8)A 125/250VAC, 16A 30VDC μ40T85/5, UL61058-1 approved
Description
X5-series
Heavy duty sealed rocker switches,
up to 20(8)A 125/250VAC, 16A 30VDC μ40T85/5,
UL61058-1 approved
HEAVY DUTY SEALED ROCKER SWITCHES, Multi Circuit, Various Actuator type, UP TO 20(8)A 125/250VAC~μ40T85/55; 16A 30VDC μ40T85/55 Max.
- Safety approved internationally by cURus in North America, ENEC15 in Europe.
- 1, 2 pole circuitry; 2 and 3 positions, maintained and momentary action
- Optional actuator type and marking.
- Environment-proof sealing, confirming to IP67 level
- Quick-connect, solder and screwed terminals
- Panel accessories as optional parts
- Application includes automotive, marine, agriculture machine and more.
Download: Spec Sheet
